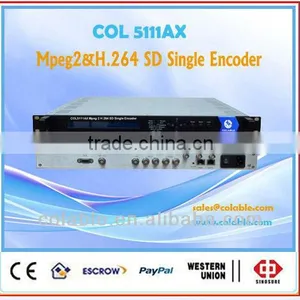

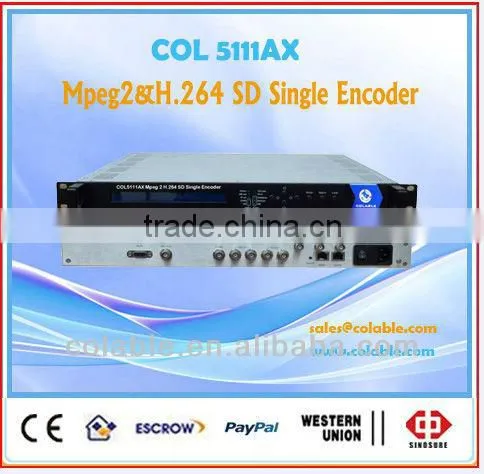

Mpeg2 Digital & Fully Dvb-s Compliant,H.264 SD Single Encoder COL5111AX

Name: Mpeg2 Digital & Fully Dvb-s Compliant,H.264 SD Single Encoder COL5111AX
Brand: COLABLE
SKU: 121883041

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL5111AX

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL5111AX

Outline

The COL5111AX MPEG-2 H.264 SD Encoder is our newest professional SD audio & video

encoding and multiplexing device with powerful functionality. It has 1 video with two different

audios encoding in the same time, supporting MPEG-2 and H.264 encoder type. Furthermore,

it can support the MPEG-1 Audio layer 2, LC-ACC, HE-AAC, and can support ultra low bit-rate

(0.25~15Mbps for H.264 encoding, and 0.5~15Mbps for MPEG-2 encoding). Moreover, it has

an ASI input and can multiplex the encoder channel and ASI/IP output in the same time.

Features

üSupport H.264,MPEG2 Encoding

üSupport 4 Mono encoding

üSupport ultra low bit rate encoding

üApplicable for one Seg/ISDB-T utilization

üMPEG1 Audio Layer 2,LC-AAC,HE-AAC v2

üSupport 1SPTS UDP IP Output

üSupport VBR/CBR video encoding

üReal-time output bit-rate monitoring

üsupports LCD/ Keyboard operation

üsupports NMS

Specifications

Input	1×CVBS input , 1xSD-SDI input ( support Closed Caption)
	2x RCA inputs, 1x XLR inputs
	1×ASI input, BNC interface
Video	Resolution		PAL:720576/352288/320240/320180/176144/ 160120/160*90 50Hz
			NTSC:720480/352288/320240/320180/176144/ 160120/160*90 59.94Hz
	Encoding		MPEG-2 /H.264
	Bit-rate		0.25~15Mbps for H.264 encoding 0.5~15Mbps for MPEG-2 encoding
	Bit-rate control		CBR/VBR
	GOP Type		IBBP
	Advanced Pretreatment		De-interlacing, noise reduction, sharpening
Audio	Encoding		MPEG1 Audio Layer 2,LC-AAC,HE-AAC
	Sample Frequency		48KHz
	Sample accuracy		24 bit
	Bit-rate		64Kb/s~384Kb/s (each channel)
Multiplexing			1 ASI input multiplexed with local 1 channels TS
Stream			2 × ASI outputs, BNC interface MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast), LCD/keyboard operating, NMS support, Chinese-English control interface
			Ethernet software upgrade
General		Dimension	482mm×455mm×44.5mm
		Weight	4kg
		Temperature	0~45°C(Working),-20~80°C(Storage)
		Power Supply	AC 110V±10%,50/60Hz or AC 240V±10%,50/60Hz
		Power Consumption	17.6W
