Specifications
1. Analog and digital video input ( CVBS,YPbPr, SDI and HDMI)2.Audio input (RCA,XLR,HDMI,AES and EUB)
3.HDMI, HD/SD-SDI input
Outline

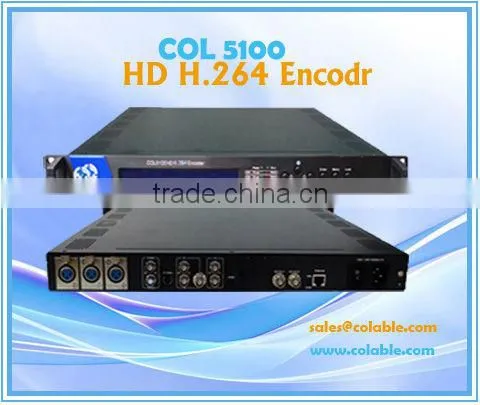

COL5100 HD H.264 Encoder adopts the most advanced H.264 audio encoding algorithm. This device can encode and transmit high-quality audio & video under the low bit-rate. Also can support AAC (optional), it has several analog and digital video input interfaces (CVBS, YPbPr, SDI, and HDMI), and audio input interfaces (RCA, XLR, HDMI, AES and EUB). Its high integrate and cost effective design gives users excellent digital video encoding solution.
Features
- MPEG1 Audio Layer 2 ,AAC(optional)
- CVBS, S-Video, YPbPr analog video input support
- H.264/AVC High Profile Level 4.0 and H.264/AVC High Profile Level 3.0 encoding support, advanced video pre-processing algorithms
- HDMI, HD/SD-SDI digital video input support
- AES/EBU, HDMI, HD/SD-SDI digital audio input support
- XLR (balance), RCA (unbalance) analog audio input support
- PAL, NTSC SD video format support
- 720P, 1080I HD video format support
- NMS support
- UDP media transmission protocols & unicast/multicast output support
Specifications
Video input |
1 × Analog CVBS, BNC interface |
||
1 ×S-Video Analog YPbPr input, BNC interface | |||
1 × YPbPr video input, BNC interface | |||
HD/SD-SDI, BNC interface | |||
HDMI interface | |||
Audio input |
Analog stereo audio(balanced), XLR interface |
||
Analog stereo audio(unbalanced), BNC interface | |||
AES / EBU digital audio, XLR interface | |||
HD/SD-SDI embedded audio | |||
Video |
Encoding |
AVC/H.264 High Profile Level 4.0 for HD AVC/H.264 High Profile Level 3.0 for SD |
|
Bit-rate |
0.8Mbps~20Mbps |
||
Rate Control |
CBR/VBR |
||
GOP Structure |
IBBP |
||
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
||
Audio |
Encoding |
MPEG-1 Layer 2 |
|
Sampling rate |
48KHz |
||
Resolution |
24-bit |
||
Bit-rate |
32Kb/s~384Kb/s |
||
Stream output |
2×ASI outputs, BNC interface |
||
|
SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) | |||
System function |
LCD/keyboard operating, NMS support Chinese-English control interface |
||
Ethernet software upgrade | |||
General |
Dimensions |
480mm×456mm×45mm |
|
Approx weight |
5Kg |
||
Temperature range |
0~45°C(Operation), -20~80°C(Storage) |
||
Power requirement |
AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz |
||
Power consumption |
17.6W |
||
