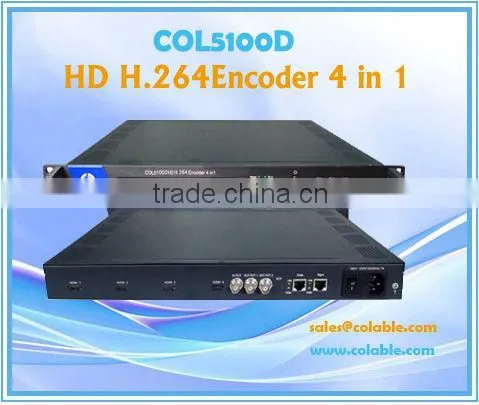

COL5100D Hdmi Sdi Encoder, Mpeg-4 Encoder Multiplexer, Encoder 4 in 1

COL5100D Hdmi Sdi Encoder, Mpeg-4 Encoder Multiplexer, Encoder 4 in 1 thumbnail-1
COL5100D Hdmi Sdi Encoder, Mpeg-4 Encoder Multiplexer, Encoder 4 in 1 photo-1
US$ 1 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Colable
Model Number:
COL5100D
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Colable
Model Number COL5100D

Specifications

1. 4 channel HDMI inputs,1 ASI input supports multiplexing
2. 720P, 1080I HD video format support
3. MPTS ASI output

Outline



The COL5100D HD H.264 Encoder 4 in 1 has 4 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile code format. It is a professional HD audio & video encoding and multiplexing device with powerful functionality. This device can simultaneously encode 4 channel HD programs, moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems.



Features

  • Audio MPEG1 Layer 2, AAC(optional)
  • 4 channel HDMI inputs, 1 ASI input supports multiplexing
  • H.264/AVC High Profile Level 4.0 video encoding support, advanced video  pretreatment algorithm
  • Real- time effective output bit-rate monitoring
  • 720P, 1080I HD video format support
  • MPTS ASI output
  • LCD / keyboard operating
  • NMS support
  • MPTS over UDP unicast/multicast output



Specifications



Input

4×HDMI inputs

1×ASI input, BNC interface

Video

Resolution

1920×1080I_60i, 1920×1080I_50i

1280×720_60p, 1280×720_50p

Encoding

MPEG4 AVC/H.264 High Profile Level 4.0 for HD

Bit-rate

0.8Mbps~20Mbps (each channel)

Rate Control

CBR/VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, noise reduction, sharpening

Audio

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz, 44.1KHz,32KHz

Resolution

24-bit

Bit-rate

64Kb/s~384Kb/s each channel

Multiplexing

1×ASI input multiplexed with 4 encoding channel SPTS

Stream output

2×ASI outputs, BNC interface

MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast)

System function

LCD/keyboard operating, NMS support Chinese-English control interface

Ethernet software upgrade

General

Dimensions



480mm×456mm×45mm

Approx weight

5Kg

Temperature range

0~45°C(Operating), -20~80°C(Storage)

Power Requirements

AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Power consumption

25W


Front panel:



 COL5100D hdmi sdi encoder, mpeg-4 encoder multiplexer, encoder 4 in 1



1

LCD display interface

 2

Indicator

Power : Power indicator

TS in: input lock indicator

CH1 TS out – CH4 TS out: device starts to encode and output TS

CH1 Alarm – CH4 Alarm: device stops encoding or encoding error

3

Up/Down/Left/Right key

4

Enter: Confirm key

5

Menu: Menu key

6

Lock: Lock key





                                                                                  Rear panel:



COL5100D hdmi sdi encoder, mpeg-4 encoder multiplexer, encoder 4 in 1



7

Input interface (4×HDMI inputs)

8

ASI input multiplex interface

9

2×ASI output multiplex interfaces

10

10M/100M network data interface

11

10M/100M network management interface

12

Power switch and socket

13

Grounding pole





COL5100D hdmi sdi encoder, mpeg-4 encoder multiplexer, encoder 4 in 1COL5100D hdmi sdi encoder, mpeg-4 encoder multiplexer, encoder 4 in 1
