Product Details
Place of Origin: | Sichuan, China | Brand Name: | Colable | Model Number: | COL5100 |
Product Description
Specifications
AVC/H.264 High Profile Level 4.0 video encodingUnicast/multicast output support
HDMI and SDI digital video input
NMS
Outline

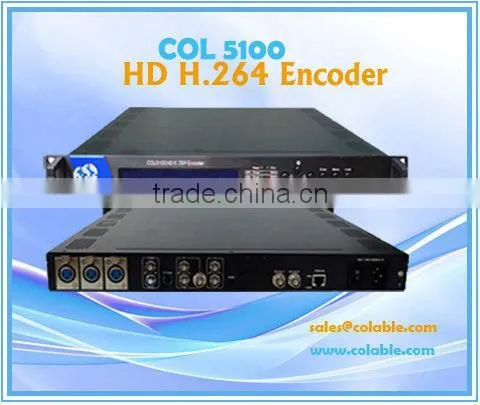

COL5100 single AVC/H.264 HD Encoder is the new broadcasting audio and video encoding device. It adopts the most advanced AVC/H.264 audio encoding algorithm, combines with advanced audio and video predealing technology. This device can encode and transmit highquality audio & video under the low bitrate. Also, it has several analog and digital video input interfaces (CVBS, YPbPr, SDI, and HDMI), and audio input interfaces (RCA, XLR, HDMI, AES and EUB). Its high integrate and cost effective design gives users excellent digital video encoding solution, and makes it widely be used in DMBT international modulator group net, Terrestrial digital TV and image monitoring etc.
Features
l AVC/H.264 High Profile Level 4.0 high profile level video encoding, advanced video pretreatment technology.
l MPEG-1 Audio Layer2 audio encoding algorithm;
l UDP media transmission protocols & unicast/multicast output support
l CVBS,S-VIDEO, HD-SDI and YPbPr analog video input interfaces
l HDMI and SDI digital video input
l XLR,RCA,AES/EBU analog digital audio input
l PAL and NTSC SD video formats
l The resolution formats is 720P, 1080I etc.
l LCD/keyboard control method.
l NMS monitoring
Specifications
Video input
| 1 × Analog CVBS, BNC interface | ||
1 ×S-Video Analog YPbPr input, BNC interface | |||
1 × YPbPr video input, BNC interface | |||
HD/SD-SDI, BNC interface | |||
HDMI interface | |||
Audio input | Analog stereo audio(balanced), XLR interface | ||
Analog stereo audio(unbalanced), BNC interface | |||
AES / EBU digital audio, XLR interface | |||
HD/SD-SDI embedded audio | |||
Video | Resolution | 1920×1080_60i, 1920×1080_50i, | |
1280×720_60p, 1280×720_50p | |||
720×480_60i(NTSC), 720×576_50i(PAL) | |||
Encoding | AVC/H.264 High Profile Level 4.0 for HD AVC/H.264 High Profile Level 3.0 for SD | ||
Bit-rate | 0.8Mbps~20Mbps | ||
Rate Control | CBR/VBR | ||
GOP Structure | IBBP | ||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | ||
Audio | Encoding | MPEG-1 Layer 2 | |
Sampling rate | 48KHz | ||
Resolution | 24-bit | ||
Bit-rate | 64Kb/s~384Kb/s | ||
Stream output | 2×ASI outputs, BNC interface | ||
SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) | |||
System function | LCD/keyboard operating, NMS support Chinese-English control interface | ||
Ethernet software upgrade | |||
General | Dimensions (W × D × H) | 482mm×455mm×44.5mm | |
Approx weight | 8Kg | ||
Temperature range | 0~45°C(Operation), -20~80°C(Storage) | ||
Power requirement | AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz | ||
Power consumption | 17.6W |
1. | LCD display screen | |
2. | Indicator LED | Power:the device is working |
TS output:The output stream is TS | ||
SD/HD:SD/HD signal indicator | ||
Encode Start:The device starts to encode | ||
Encode Error:The device has encoding error | ||
CVBS :CVBS input indicator | ||
S-VIDEO:S-VIDEO input indicator | ||
YPbPr:YPbPr input indicator | ||
HDMI:HDMI input indicator | ||
HD/SD-SDI:SDI input indicator | ||
3. | Up/Down/Left/Right Arrow | |
4. | Enter:Confirm key | |
5. | Menu:Menu key | |
6. | Lock:Lock key |
7. | Digital audio input interface: AES/EBU, XLR |
8. | CVBS input interface |
9. | HD/SD-SDI input interface |
10. | S-VIDEO input interface |
11. | YPbPr input interface |
12. | Analog audio input interface |
13. | HDMI input interface |
14. | Two same ASI output interface |
15. | 10M/100M Ethernet interface |
16. | Power switch and socket |
17. | Ground pole |
