Top Selling Products 2013,best Selling Products, MPEG2 Super Encoder 8 in 1/8AV,1 ASI Input/AAC and AC3 COL5181B

Name: Top Selling Products 2013,best Selling Products, MPEG2 Super Encoder 8 in 1/8AV,1 ASI Input/AAC and AC3 COL5181B
Brand: COLABLE
SKU: 121883463
Availability: InStock

Top Selling Products 2013,best Selling Products, MPEG2 Super Encoder 8 in 1/8AV,1 ASI Input/AAC and AC3 COL5181B thumbnail-1

Top Selling Products 2013,best Selling Products, MPEG2 Super Encoder 8 in 1/8AV,1 ASI Input/AAC and AC3 COL5181B photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL5181B

Contact Supplier Request Quote Chat Now

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL5181B

Specifications

1 ASI input multiplexed with local 8 channels of TS
Chinese-English control interface
Support multiplexer
8 AV 1 ASI input

Outline

COL5181B MPEG2 super encoder supports 8 AV (8 CVBS and 8 unbalanced analog stereo audio) and 1 ASI input, after multiplexing process, it gives ASI and IP output at the same time. Users can manage the device through the NMS. Besides, it supports MPEG-2 video encoding, and the audio encoding supports MPEG1-LAYER 2, AAC and AC3. In conclusion, its high compatibility and integrated design make this device widely used in a variety of digital TV broadcasting systems.

Features

l Support 8AV,1 ASI Input

l Support MPEG2 format encoding

l Support PAL NTSC format

l Support Maximal 108Mbps ASI input

l 0.8Mbps~20Mbps each channel

l Support D1, HD1, 2/3D1, 3/4D1 resolution

l Support multiplexer function

l Support ASI and IP output

l Support Keyboard and LCD operation

l Update device through NMS port

Specifications

Input	8 CVBS inputs , BNC interface
	8 pairs unbalanced stereo audio input, BNC interface
	1 ASI input, BNC interface
Video	Resolution		PAL: 720×576_50i ,704576_50i,640576_50i, 320288_50i, 176288_50i, ,176*144_50i
			NTSC: 720×480_60i, 544×480_60i,352×480_60i 320240_60i ,176240_60i, 176*120_60i
	Encoding		MPEG-2 MP@ML
	Bit-rate		0.125Mbps~19Mbps each channel
	Rate Control		CBR/VBR
	GOP Structure		IPPPP, IBPBP,IBBPB,IBBBP.
	Advanced Pretreatment		De-interlacing, noise reduction, sharpening
Audio	Encoding		MPEG1 Audio Layer 2,LC-AAC,HE-AAC
	Sampling rate		32 KHz ,44.1 KHz ,48KHz
	Bit-rate		32Kb/s—384Kb/s each channel
Multiplexing			1 ASI input multiplexed with local 8 channels of TS
Stream output			2*ASI output, BNC interface
			1 MPTS over UDP, 10/100Base-T Ethernet interface (UDP uni-cast/multicast);8 SPTS
System function			LCD/keyboard operating, NMS supporting
			Chinese-English control interface
			Ethernet software upgrade
Miscellaneous		Dimension (W× L× H)		482mm×455mm×44mm
		Approx weight		4kg
		Temperature		0~45°C(work), -20~80°C(Storage)
		Power		AC 100V-220V±10%, 50/60Hz
		Consumption		17.6W

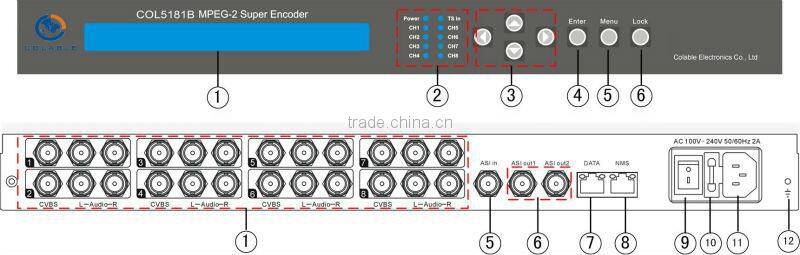

1	LCD screen
2	Indicators	Power indicator
		TS in: input lock indicator
		CH1-CH8: When program has been multiplexed, the indicator will be on.
3	UP/ DOWN, LEFT/RIGHT keys
4	Enter key
5	Menu key
6	Lock key

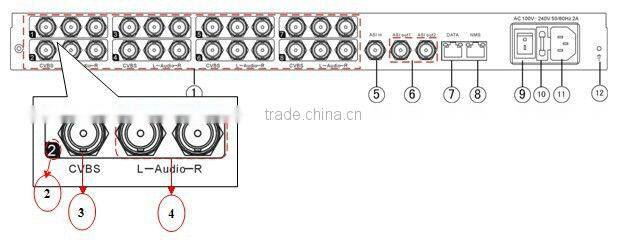

1	8 * CVBS input ports
2	CVBS input serial number from 1 to 8
3	Video input port
4	Audio input port (Left & Right channels)
5	ASI input port
6	2 * ASI output ports
7	Data port (for IP signal output)
8	NMS (Network management port)
9	Power Switch
10	Fuse
11	Power socket
12	Grounding Pole
