Outline

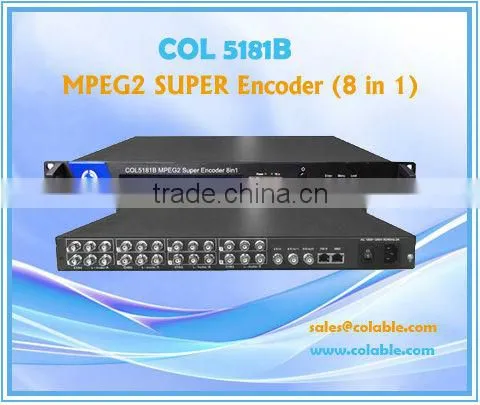

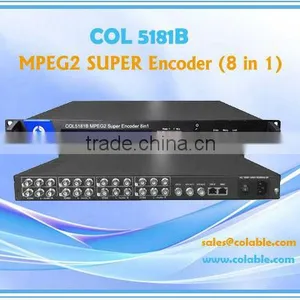

COL5181B MPEG2 SUPER Encoder (8 in 1), the powerful and stable equipment is very popular in the digital broadcast word, because it can be used in so many solutions to reduce a lot of the cost of the total system. COL5181B is a high density, high performance video processing platform. It’s powerful multifunction and stable performance made it suitable for versatile circumstance and can be deployed on the VOD, real time CATV or satellite head end.
COL5181B integrates 8 channel encoder and TS multiplexer in a compact 1RU form, ideal for head end deployment or head end enlargement. Lower bit rates MPEG2 SUPER SD encoding, support up to 28 channel program multiplexing makes you cast more programs on the limited bandwidth. Human design, the friendly operating network software makes you control the equipment easily.
Features
- 8 channel video audio input, MPEG2 SUPER coded, multiplexed, ASI output.
- Low bit rate, MPEG4 1.5Mbps, MPEG2 1.8Mbps for D1 resolution
- Can multiplex another Transport Stream (ASI input) with the local 8 channel Transport Stream, and ASI out. Several equipments can be cascaded and multiplexed to be one Transport Stream out.
- Flexible 1~15Mbps bit rate for each channel, output bit rate is 1~216Mbps optional
- Support PAL and NTSC video system (PAL/NTSC)
- Output PID can be modified
- Auto generate PSI/SI(PAT,PMT,SDT,NIT,TDT,EIT)table
- Remote management by special network software
Specifications
Video |
Channel: |
8 channels |
Inputs: |
Analog composite (NTSC/PAL) |
|
Connector: |
BNC |
|
Audio |
Channel: |
16 channels |
Inputs: |
Analog |
|
No.of Channels: |
R/L |
|
Sample Rate: |
32/ 44.1/ 48KHz |
|
ASI Input |
Bit Rate: |
270Mbit/s ± 100 ppm |
TS Packet Length: |
204, 188 bytes adaptive |
|
Programs: |
1~24 programs |
|
Connector: |
BNC (75) |
|
Return Loss: |
≥15dB, 27 to 270MHz |
|
Video Encoding |
Video Format: |
MPEG-2 (MP@ML) |
Frame arrangement: |
IPB, IP, IBI, I |
|
Movement Predict: |
Auto frame, scene predict |
|
DC precision: |
8~11bits |
|
Bit Rates: |
1.5 to 15 Mb/s (4:2:0) |
|
H Resolutions: |
720, 704, 640, 544, 528, 480 and 352 |
|
V Resolutions: |
576 and 480 |
|
Audio Encoding |
Audio Format: |
MPEG-1 Layer-1/ Layer-2 |
Bit Rates: |
32Kbps, 64Kbps, 128Kbps, 192Kbps, 256Kbps, 384Kbps |
|
DVB AIS Output |
Connector: |
BNC |
TS rate: |
0~216Mbps |
|
TS packet: |
188 bytes |
|
Output Level: |
800mVpp nominal |
|
Return Loss: |
≥15dB, 27 to 270MHz |
Front panel:
1 |
LCD screen |
|
2 |
Indicators |
Power indicator |
TS in: input lock indicator | ||
CH1-CH8: When program has been multiplexed, the indicator will be on. | ||
3 |
UP/ DOWN, LEFT/RIGHT keys |
|
4 |
Enter key |
|
5 |
Menu key |
|
6 |
Lock key |
|
