Specifications

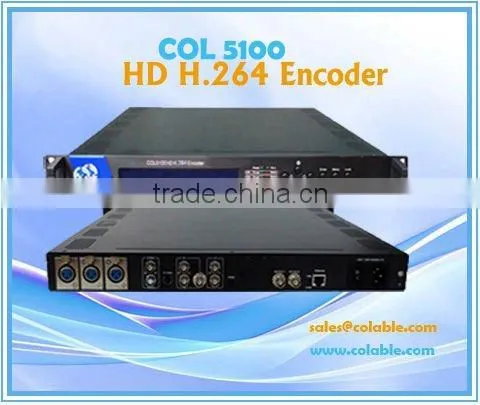

HD single Encoder is a new generation broadcasting level video and audio encoding equipment from Colable Electronics..COL5100 HD H.264 Encoder
Outline
COL5100 HD H.264 Encoder adopts the most advanced H.264 audio encoding algorithm. This device can encode and transmit high-quality audio & video under the low bit-rate. Also can support AAC (optional), it has several analog and digital video input interfaces (CVBS, YPbPr, SDI, and HDMI), and audio input interfaces (RCA, XLR, HDMI, AES and EUB). Its high integrate and cost effective design gives users excellent digital video encoding solution.
Features
üMPEG1 Audio Layer 2 ,AAC(optional)
üCVBS, S-Video, YPbPr analog video input support
üH.264/AVC High Profile Level 4.0 and H.264/AVC High Profile Level 3.0 encoding support, advanced video pre-processing algorithms
üHDMI, HD/SD-SDI digital video input support
üAES/EBU, HDMI, HD/SD-SDI digital audio input support
üXLR (balance), RCA (unbalance) analog audio input support
üPAL, NTSC SD video format support
ü720P, 1080I HD video format support
üNMS support
üUDP media transmission protocols & unicast/multicast output support
Specifications
Video input | 1 × Analog CVBS, BNC interface | ||
1 ×S-Video Analog YPbPr input, BNC interface | |||
1 × YPbPr video input, BNC interface | |||
HD/SD-SDI, BNC interface | |||
HDMI interface | |||
Audio input | Analog stereo audio(balanced), XLR interface | ||
Analog stereo audio(unbalanced), BNC interface | |||
AES / EBU digital audio, XLR interface | |||
HD/SD-SDI embedded audio | |||
Video | Resolution | 1920x 1080p, 1920 x 1080p | |
1920×1080i , 1920×1080i | |||
1280×720p, 1280×720p | |||
Encoding | AVC/H.264 High Profile Level 4.0 for HD AVC/H.264 High Profile Level 3.0 for SD | ||
Bit-rate | 0.8Mbps~20Mbps | ||
Rate Control | CBR/VBR | ||
GOP Structure | IBBP | ||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | ||
Audio | Encoding | MPEG-1 Layer 2 | |
Sampling rate | 48KHz | ||
Resolution | 24-bit | ||
Bit-rate | 32Kb/s~384Kb/s | ||
Stream output | 2×ASI outputs, BNC interface | ||
SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) | |||
System function | LCD/keyboard operating, NMS support Chinese-English control interface | ||
Ethernet software upgrade | |||
General | Dimensions | 480mm×456mm×45mm | |
Approx weight | 5Kg | ||
Temperature range | 0~45°C(Operation), -20~80°C(Storage) | ||
Power requirement | AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz | ||
Power consumption | 17.6W | ||
LCD display screen | ||
Indicator LED | Power:the device is working | |
TS output:The output stream is TS | ||
SD/HD:SD/HD signal indicator | ||
Encode Start:The device starts to encode | ||
Encode Error:The device has encoding error | ||
CVBS :CVBS input indicator | ||
S-VIDEO:S-VIDEO input indicator | ||
YPbPr:YPbPr input indicator | ||
HDMI:HDMI input indicator | ||
HD/SD-SDI:SDI input indicator | ||
Up/Down/Left/Right Arrow | ||
Enter:Confirm key | ||
Menu:Menu key | ||
Lock:Lock key | ||

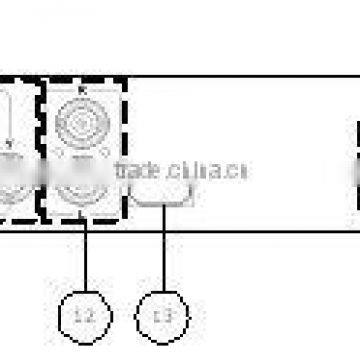

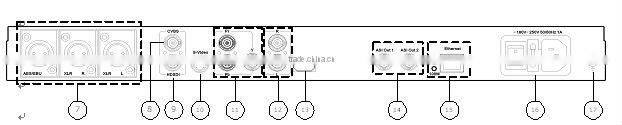

Digital audio input interface: AES/EBU, XLR | |
CVBS input interface | |
HD/SD-SDI input interface | |
S-VIDEO input interface | |
YPbPr input interface | |
Analog audio input interface | |
HDMI input interface | |
Two same ASI output interface | |
10M/100M Ethernet interface | |
Power switch and socket | |
Ground pole |
