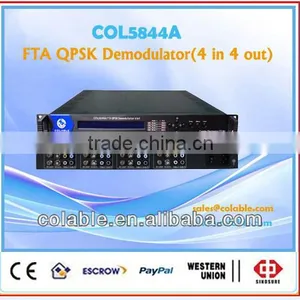

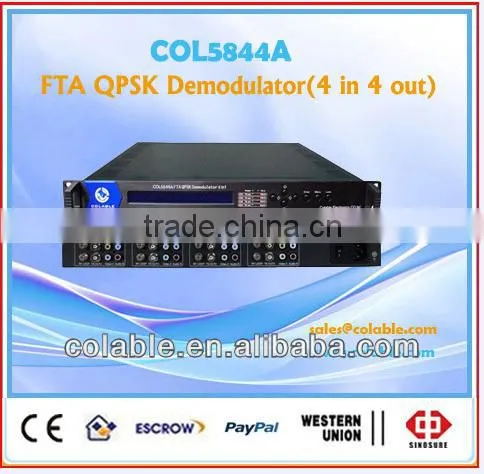

Help CenterCOL5844A DVB/qpsk Demodulator (4 in 4 Out), Receive FTA Digital Headend
Related Products
-
2014 LOWEST FOB PRICE FOR DVB-T Modulator.(COL5600)US$ 1 - 3,000MOQ: 1 Piece -
Free Ird (1 Out), Digital Fta Satellite Ird DecoderNegotiableMOQ: 2 Packs
-
Mpeg-2 ip Encoder, Low Biterate Mpeg2 Encoder, Cable/digital TV HeadendNegotiableMOQ: 2 Pieces
-
COL5141BP MPEG2 ip Streaming Encoder 4 In1,av to ip EncoderNegotiableMOQ: 1 Piece
-
CATV MPEG-2 IP Encoder SDI Digital Encoder Audio Video Encoder Digital tv Headend Equipment ip Streaming Encoder COL5111APUS$ 1 - 2,000MOQ: 1 Piece
demodulator, IRD receiver, satellit ird
FEATURE
1 DVB-S Standard
2 User friendly interface and operation
3 Four LNB inputs, four TS outputs
4 User can edit the program information
5 22KHZ dual satellite receiving , 13V/18V polarization control
6 Failure alarm
7 LCD display to monitor all data
8 Power failure auto save .
9 Receiving C band SCPC/MCPC
10 Input TS format auto recognition (188 &204 )
11 Ethernet port, NMS software
Specification
Data input
Input signal---- 1~4 channel satellite input
Input frequency----- 950Mhz—2150Mhz
Input level -65dbm—-25dbm
Connector F port
Impedance 75W
Symbol rate 2Msps—45Msps
Rolling factor 35%
Data output
ASI Port
Standard DVB Connector BNC
Impedance 75W
Output format standard ISO13818-1
TS format 188/204bytes optional(204bytes no RS code)
TS output format CBR
NMS port
Ethernet port IEEE802.3 ,RJ45
Protocol SNMP
Power failure auto save
Automatically save when power failed
Power supply
Power 90V~250VAC
Frequency 50Hz±2%
Power consumption 25W
Environment
Temperature 0°C~50°C
Storage -25°C~+55°C
Humidity 10~75%
Radiation & Safety
GB13837-92 & GB8898-88
