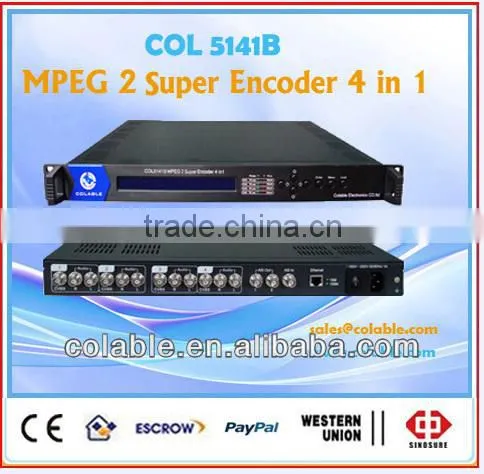

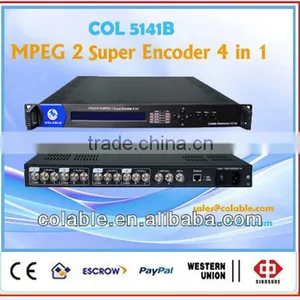

COL5141BP MPEG2 ip Streaming Encoder 4 In1,av to ip EncoderNegotiableMOQ: 1 Piece -
CATV MPEG-2 IP Encoder SDI Digital Encoder Audio Video Encoder Digital tv Headend Equipment ip Streaming Encoder COL5111APUS$ 1 - 2,000MOQ: 1 Piece
-
TS Distributor, Digital Headend(COL5931 )NegotiableMOQ: 1 Piece
-
COL5400A Dvb-c Qam Modulator, 64 Qam, 256 Qam ModulationNegotiableMOQ: 2 Packs
-
16 Input 4 Output TS Multiplexer Scrambler and Qam, Catv Dtv ScramblerNegotiableMOQ: 1 Pack
mpeg-2 ip encoder,digital tv headend,
Features
- Supports MPEG-2 MP@ML(4:2:0) video encoding, and advanced video pre-treatment
- Supports MPEG-4 SP/ASP video encoding format
- The audio formats are MPEG-1 Audio Layer2,AAC,AC3( optional)
- Four CVBS video input
- Four pairs of unbalance stereo audio input
- Multiplexes one ASI input
- Supports PAL,NTSC SD signal
- Supports D1,HD1,2/3D1,3/4D1 resolution
- Supports MPTS output
- Keyboard and LCD operation
- Support NMS operation
Specifications
Input |
4 CVBS inputs , BNC interface |
|
4 pairs unbalanced stereo audio input, BNC interface | ||
1 ASI stream input, BNC interface | ||
Video |
Resolution |
720×480_60i, 544×480_60i,352×480_60i 320*240_60i ,176*240_60i, 176*120_60i |
|
720×576_50i ,704*576_50i,640*576_50i, 320*288_50i, 176*288_50i, ,176*144_50i | ||
Encoding |
MPEG-2 MP@ML MPEG-4 SP/ASP |
|
Chroma Format |
4:2:0 |
|
Bit-rate |
0.8Mbps~20Mbps each channel |
|
Rate Control |
CBR/VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
|
Video |
Encoding |
MPEG-1 Audio Layer 2,AAC,AC3 |
Sampling rate |
48KHz,44.1KHz,32KHz |
|
Resolution |
24-bit |
|
Bit-rate |
32Kb/s—384Kb/s each channel |
|
Multiplexing |
1 ASI input multiplexed with local 4 channels TS |
|
Stream output |
2-way ASI output, BNC interface |
|
System function |
LCD/keyboard, network management, Chinese and English language |
|
Ethernet software upgrade | ||
Miscellaneous |
Dimension (W× L× H) |
482mm×410mm×44mm |
Approx weight |
2.8kg |
|
Environment |
0~45°C(work); -20~80°C(Store) |
|
Power |
AC 100~240V±10%,50/60Hz |
|
Our Services:
1. Design for CATV, DTV, IPTV network solution
2. Offer all digital equipment used
3. After sales support
4. System or equipment upgrade
