Specifications
1. dvb-s2 8psk hdmi modulator2. RF 10MHz and 24V/2A DC coupling out
3. 10MHz reference clock optional
4.range: 950~2150MHz
dvb-s2 8psk uplink modulator, uplink modulator, hdmi modulator
Outline

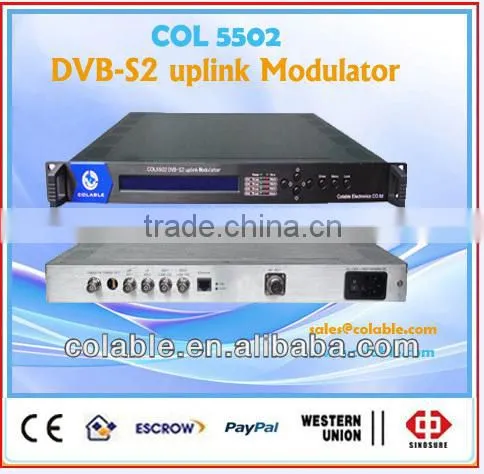

The DVB-S2 modulator is a high performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It adopts advanced framing structure, channel coding and modulation technology, increasing over 50% transmission ability more than DVB-S modulator under the same transmission condition and also providing a more powerful receiving ability in the same spectral efficiency. It also provides RF 10MHz and 24V/2A DC coupling out. In addition, it is backwards-compatible with DVB-S (EN300421) modulating standard. This DVB-S2 modulator supports local and remote control through NMS software. For field scope, the device can be used for Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.
Features
- Fully complying with DVB-S2(EN302307) standard
- Backwards-compatible with DVB-S (EN300421) modulating standard
- Two ASI inputs supporting hot backup
- Supporting local and remote control
- Output level attenuation
- 10MHz outer reference clock input
- Output frequency range: 950~2150MHz
- Coupling output: 24V/2A DC optional
- Coupling output: 10MHz reference clock optional
- Full-size front panel LCD display and keyboard
