Hd/sd sdi decoder, dvb-s2 to ip udp/rtp/rtsp, and qpsk demodulator in tv headend broadcast
Outline

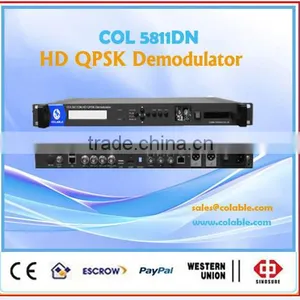

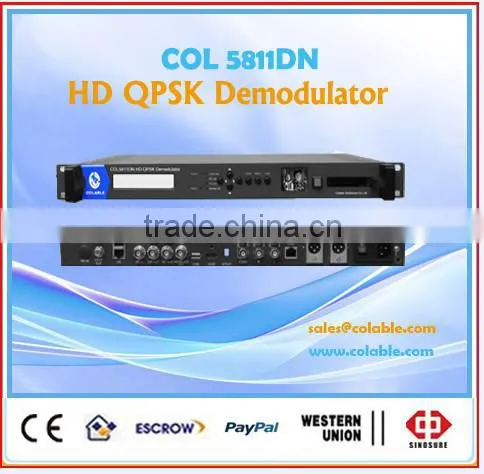

COL5811DN HD QPSK demodulator is our new design IRD with LCD video monitor equipped on the front panel.
It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources.
After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio
interfaces. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, stereo balanced audio, stereo unbalanced
audio and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users’ needs.
Features
Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input
Support LCD display for decoding video
Various tuner standard available
Support MPEG-2 & MPEG-4 video decoding
Support AC3 pass through
Re-multiplexer embedded
Support Tuner, IP, ASI Input at the same time
Support IP, ASI, Decoding output at the same time
Support 8xSPTS/32xSPTS and1 IP MPTS output
Support CAM card insert (CI)
Support BISS descrambling
Support CC (Closed Caption)
Support Front Panel and NMS/SNMP network management and Web management
Specifications
Input Interface |
Tuner |
1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional) DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth ATSC-T: 54MHz~858MHz, 6M bandwidth DVB-T2: 44MHz ~1002 MHz, 6/7/8 M bandwidth |
||
ASI |
1 ASI IN(support 188/204 package format) |
|||
IP |
1 IP over UDP, RTP/RTSP (100M, RJ45 Port) |
|||
Output |
ASI Output |
2 ASI output(after multiplexer) |
||
2 ASI output(tuner input pass through) | ||||
|
IP output (UDP, RTP/RTSP) |
1 MPTS output |
|||
8 SPTS output | ||||
Video Output |
1xCVBS(BNC): 576i 25fps, 480i 29.97fps |
|||
1xYPbPr(BNC): 1080i 25, 29.97, 30fps; 720p 50, 59.94fps | ||||
1xHD/SD-SDI(BNC): 1080i 25, 29.97, 30fps; 720p 50, 59.94fps; 576i 25fps; 480i 29.97fps | ||||
1 x HDMI: 1080i 25, 29.97, 30fps; 720p 50, 59.94fps | ||||
Audio Output |
Stereo unbalanced audio: BNC interface Stereo balanced audio: XLR interface Digital audio: SPDIF |
|||
Video Decoding |
MPEG-2, MPEG-4 (4:2:0) |
|||
Audio Decoding |
MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC |
|||
NMS Port |
Ethernet Port |
10/100M |
||
Protocols |
TS Over IP: UDP NMS: TCP/IP |
|||
System |
Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web Management |
|||
English and Chinese interface conversion | ||||
|
Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade | ||||
LCD Monitor for decoding video | ||||
Miscellaneous |
Dimensions |
482mm*455mm*44.5mm ( L×W×H) |
||
Approx weight |
3.2kg |
|||
Power |
<20W(Max) |
|||
Temperature |
0~45°C(Operating), -20~80°C(Storage) |
|||
