Strong Iptv Headend Hardware, Air Channels to ip Spts Transcoder COL5781S

Strong Iptv Headend Hardware, Air Channels to ip Spts Transcoder COL5781S photo-1
US$ 1 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Colable
Model Number:
COL5781S
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Colable
Model Number COL5781S



Outline



COL5781 Tuner to IP Gateway is a head-end interface conversion device which is used for DVB and Ethernet. It is integrated with tuner demodulation and gateway function, which can demodulate the signal from 8 tuners into TS and packet the TS into IP package, then output the IP package through different IP address and ports. It supports TS over UDP protocol. Furthermore, it can simultaneously convert the signals from 8 channels DVB-S/-S2/-C/-T/ISDB-T/ATSC to TS over UDP and output it.



Feature

             Integrated with demodulation and gateway function

             Support 8 channels tuner(DVB-S/S2/-C/-T/ISDB-T/ATSC optional) input and 8 IP output

             Support MPEG-2 and MPEG-4 TS to IP one way conversion

             1 GE output(support parallel 1 Gbps data output channel)

             Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps

             Support TS over UDP protocol, unicast and multicast

             Support LCD display and keyboard control

             Support NMS/SNMP management

Specifications

Interface

Input

8 Channels tuner input(DVB-S/S2/-C/-T/ISDB-T/ATSC optional)

Output

1 GE output, TS over UDP protocol, unicast and Multicast

Transmission Bit-rate

Maximum total bit-rate is 800Mbps

General

Dimension (WxLxH)

482mm×410mm×44mm

Weight

3.6kg

Temperature

0~45°C(working ),-20~80°C(storage)

Power supply

100~240VAC,50/60Hz

consumption

20W

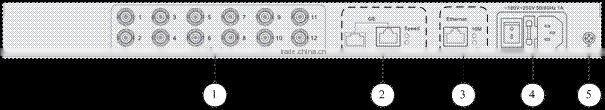

Rear panel:



Strong iptv headend hardware, air channels to ip spts transcoder COL5781S





1

12 channels ASI input interfaces

2

IP output interface

3

Ethernet port: Network management interface

4

Integrated Power

5

Grounding rod
