_______________Square Can Making Line______________
Name and Picture |
Technical Specifications |
|
Slitting Machine |
Model------------------------------GTIB-15 Max.Thickness--------------------0.5mm Sheet Width------------------------60-1059mm Power-------------------------------1.1kw Net Weight--------------------------1100kg Dimension-----------------1500x1100x1200mm |
|
Automatic Rounder |
Model--------------------------------CY400-AT Diameter range------------------Φ75-Φ300mm Thickness----------------------------0.5-0.6mm Max width---------------------------430mm Capacity----------------------------20-30cans/min Net weight--------------------------450kg Dimension-------------------1300x730x1330mm |
|

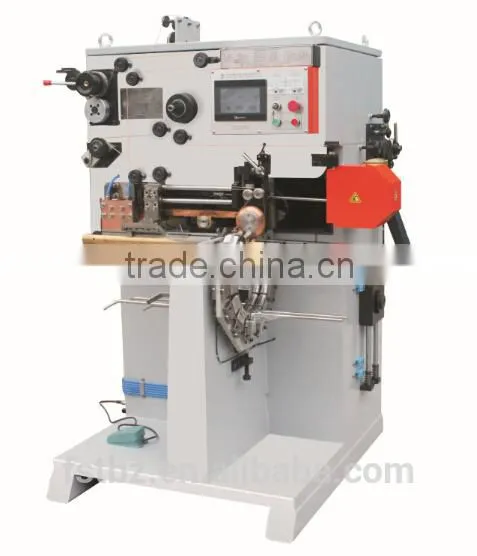

Manual Can Body Seam Welder
|
Model -------------------------FB2000-A Power ---------------3N.380V/50Hz 15KVA Welding speed --------------- ≤ 12m/min Capacity ---------------------20~50cans/min Diameter Range ------------Φ65~Φ300mm Height Range ----------------70~ 400mm Overlap -----------------------0.6~1.2mm Thickness --------------------0.2~0.38mm Copper wire -----------------Φ1.5 T2 Cooling water----------0.3MPa 8-10L/min ≤20℃ Net Weight -------------------1300kg Dimension --------------1350×1300×1700mm
|
|

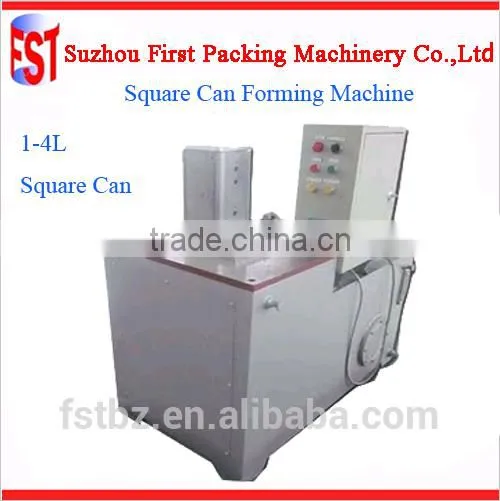

Hydraulic Square Can Forming Machine
|
Model------------------------------3F18A Power------------------------------5.5KW Capacity--------------------------20-30 cans/min Thickness--------------------------0.15-0.3mm Net Weight-------------------------700KG Dimension--------------------1400x720x1500mm |
|

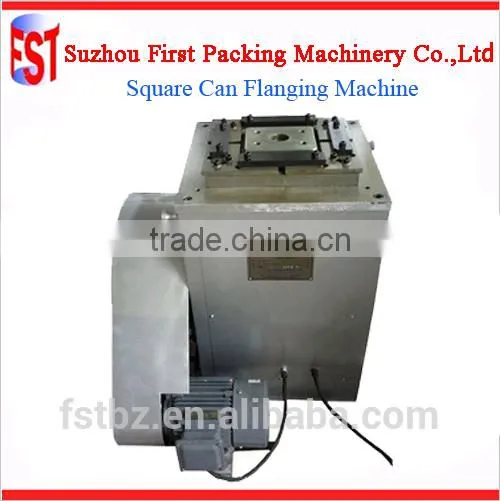

Hydraulic Square Can Flanging Machine
|
Model------------------------------3F18B Power------------------------------0.75KW Capacity--------------------------20-30 cans/min Thickness--------------------------0.15-0.3mm Net Weight-------------------------350KG Dimension--------------------680x1020x800mm |
|
Pneumatic Square Can Seamer |
Model------------------------------GT4A19F Power------------------------------2.2KW Can Height------------------------50-400mm Capacity--------------------------12-16cans/min Thickness--------------------------0.15-0.4mm Air Pressure-----------------------0.4-0.7MPa Spin rate---------------------940 revolutions/min Net Weight-------------------------800KG Dimension--------------------980x580x1900mm
|
|
Pneumatic Single-Head Spot Welder |
Model ---------------------DN40B Power---------------------3N38050HZ 40KVA Capacity------------------10-20cans/min Compressed air----------500L/min 0.6Mpa Electrode journey-------75mm Net Weight---------------300kg Dimension----------------550x850x1350mm |
|
Automatic Presser |
|
| |
_____________________Our Advantage_______________________
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds.

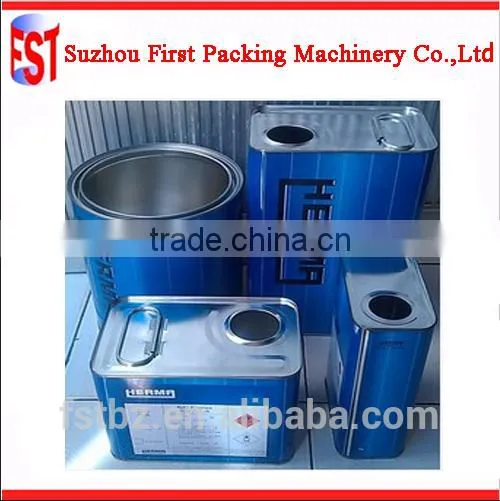

____________________Sample Showcase__________________
__________________Company Information_________________
_____________________To Customers____________________
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 18 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
_____________________Contact Me______________________
choose one way you like,and send me by mail or call me or online.
