Product Name:Semi-Automatic Round Can Making Equipment
♦ Main Technical Parameter
• Cutting Machine
Model |
GTIB-15 |
Max.Thickness |
0.5mm |
Sheet Width |
60-1050mm |
Power |
1.1kw |
Net Weight |
1100kg |
Dimension |
1500×1100×1200mm |
• Automatic Rounder
Model |
CY400-AT |
Diameter Range |
Φ75-Φ300mm |
Thickness |
0.2-0.4mm |
Max width |
440mm |
Capacity |
20-30cans/min |
Net weight |
450kg |
Dimension |
1300x730x1330mm |

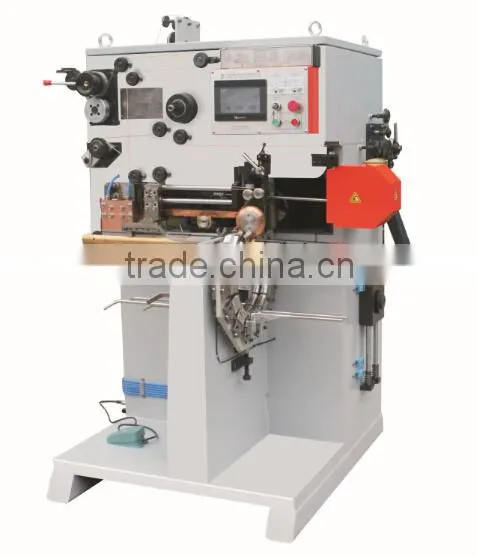

• Backward Seam Welder
Model |
FB2000-A |
FB2000-B |
Power |
3N.380V/50Hz 15KVA |
|
Welding speed |
≤ 12m/min |
|
Capacity |
20~50cans/min |
|
Diameter Range |
Φ65~Φ300mm |
Φ 52~Φ180mm |
Height Range |
70~ 420(500)mm |
|
Overlap |
0.6~1.2mm |
0.4~0.9mm |
Thickness |
0.18~0.4mm |
0.18~0.35mm |
Copper wire |
Φ 1.5 T2 |
|
Cooling water |
0.3MPa 8-10L/min ≤20℃ |
|
Net Weight |
1300kg |
|
Dimension |
1350×1200×2000mm |
|
• Panumatic Flanging Machine
Model |
GQ |
Can Type |
Food /Chemical Can |
Input Power |
3 Phase 380V 50/60Hz |
Rated Power |
2-16kw |
Drying Speed |
45CPM |
Cooling Way |
Air-cooled |
Oven Size |
1000x200x160mm |
Net weight |
1000kg |
• Panumatic Sealing Machine
Model |
GT4A68 |
Size |
1-5L |
Power |
1.5kw |
Diameter Range |
50-180mm |
Thickness |
≤0.4mm |
Height Range |
50--300mm |
Spin rate |
1400 revolutions/min |
Capacity |
15-20cans/min |
Net weight |
520kg |
Dimension |
720x520x1760mm |
♦ Electrical Components
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds.
