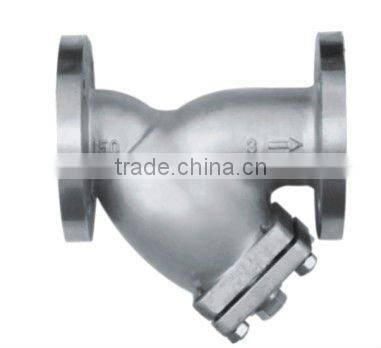

Help CenterStainelss Steel Y Strainer
US$ 200 - 210
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Y-strainer
Pressure:
Other, 150LB-600lb
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Other, Y-strainer
Pressure
Other, 150LB-600lb
Power
Hydraulic
Material
Other, stainless steel,cast steel,carbon steel
Temperature of Media
Other, 180C-425C
Media
Other, water,oil,gas,acid
Port Size
DN15-DN450
Place of Origin
Zhejiang, China
Model Number
GL41H-150LB
Brand Name
DONGJIN
Specifications
Stainelss steel Y strainer1.Model:GL41W-150LB
2.Class 150~300Lb
3 .Material:SS,CS,CI
4.API,ISO9001,CE certificate

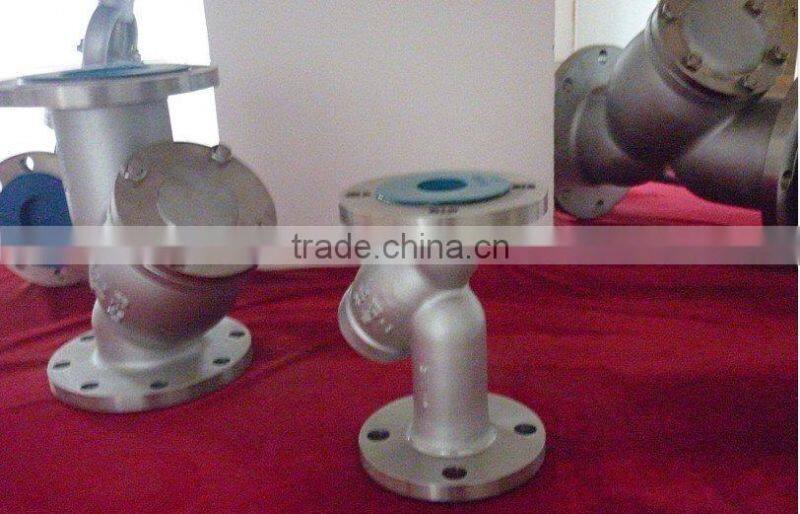

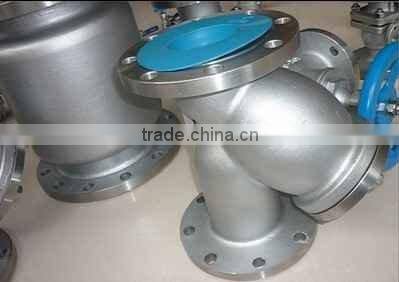

Stainelss steel Y strainer
Model:GL41W-150LB GL41W-300LB GL41W-600LB
SPECIFICATIONS
1. Size: 2"~40"
2. Class: 150~300Lb
3. Design: ASME B16.34
4. Face to Face: ASME B16.10
5. End Flange: ASME B16.5
6. BW End: ASME B16.25
7. Test: API 598
8. Application: Coal mining industry, Paper-making industry, Sugar-making industry,etc.
FEATURES
1. Y Type Structure
2. Integral Seat
3. Reduced & Full Port
MAIN PARTS AND MATERIALS | ||
No. |
Part Name |
Material |
1 |
Bolt |
A194 2H |
2 |
Nut |
A193 B7 |
3 |
Bonnet |
A216 WCB |
4 |
Gasket |
SS304+Graphite |
5 |
Drainer Valve |
AISI 1035 |
6 |
Screen |
SS304 |
7 |
Body |
A216 WCB |
Optional Material: A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M,Duplex,etc.
