F11E series Rotary Shaft Encoder
Introdution
1.Compact and highly accurate contact type encoder.
2.0.5mm-travel push switch with compliance to 5.9 mm height.
3.Incremental type.
| Electrical characteristics | |
| Rated Power | DC 5V 10mA (1mA Min) |
| Fluttering | t1,t3<3ms |
| Insulation Resistance | More than 100MΩ at 250V 1mA |
| Withstand voltage | 1 minute at AC 300V 1mA |
| Sliding Noise (Bounce) | t2<2ms |
| Phase Difference | >0.08T |
| Mechanical characteristics | |
| Rotational Torque of Detent | 50gf.cm~180gf.cm(at 5~35℃) |
| Total Rotational Angle | 360° Continuous |
| Number and Position of Detent | 15 Detents (Angle: 24°±3°); 20 Detents (Angle: 18°±3°) |
| Push-Pull Strength of shaft | 8.0Kgf Min for 10sec. |
| Bushing & nut tight strength | 10.0Kgf.cm Min |
| Durability | |
| Rotational Life | 30,000 Cycles Min |
| Switch characteristics | |
| Contact resistance | 100mΩ Max |
| Maximum ratings | DC 5V, 10mA (1mA Min) |
| Insulation Resistance | More than 100MΩ at DC 250V,1mA |
| Withstand Voltage | 1 minute at AC 300V,1mA |
| Travel | 0.5±0.4/-0.3mm |
| Operating Force | 600±200gf |

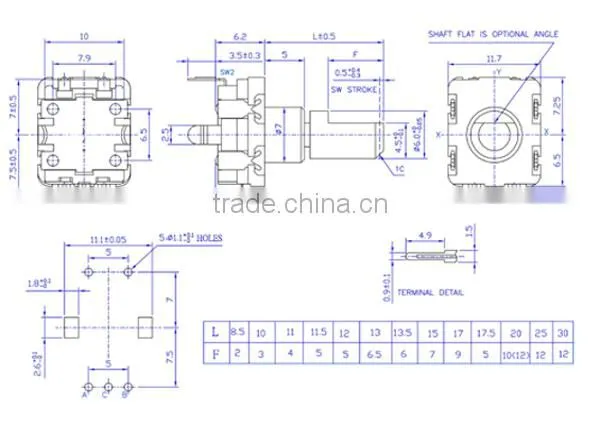

How to order?
FAQ
Q: Can you provide us samples, is it free or need to pay?
A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.
Q: How to deliver?
A: By sea or by air or courier like UPS, DHL, FedEx.
Q: What’s your payment term?
A: T/T or Western Union
30% deposit, the 70% balance before shipment.
Q: Where is your factory located, is it convenient to visit?
A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.
shippment & payment:
we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
