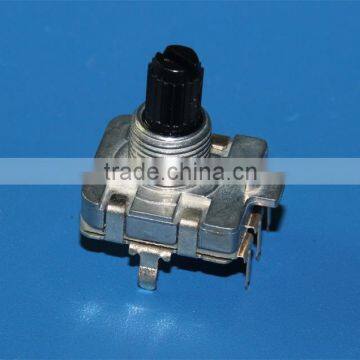

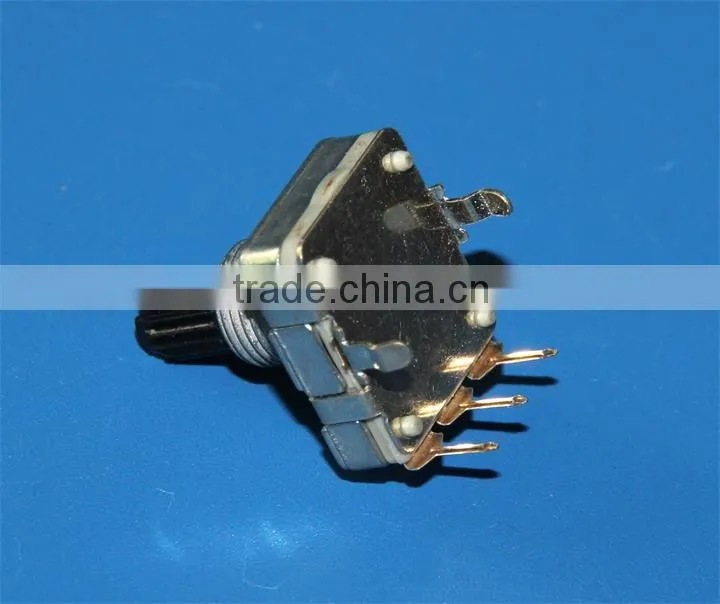

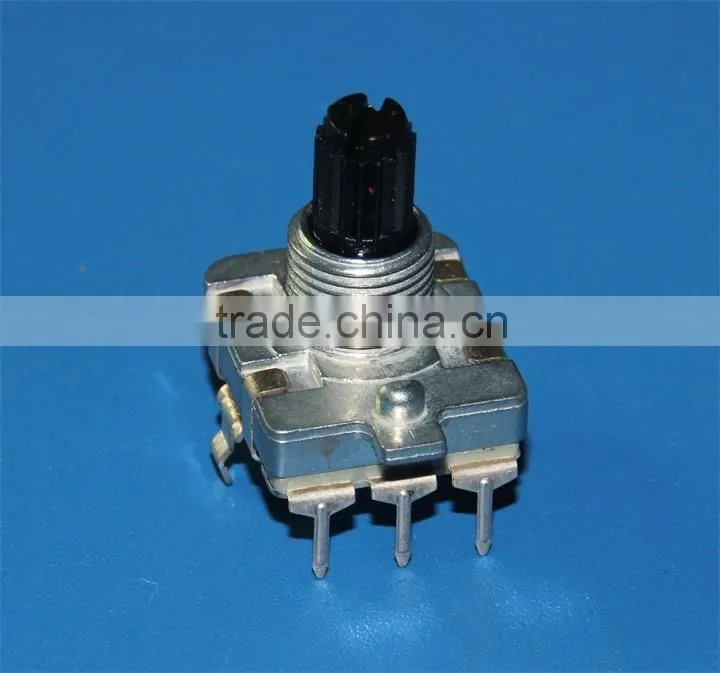

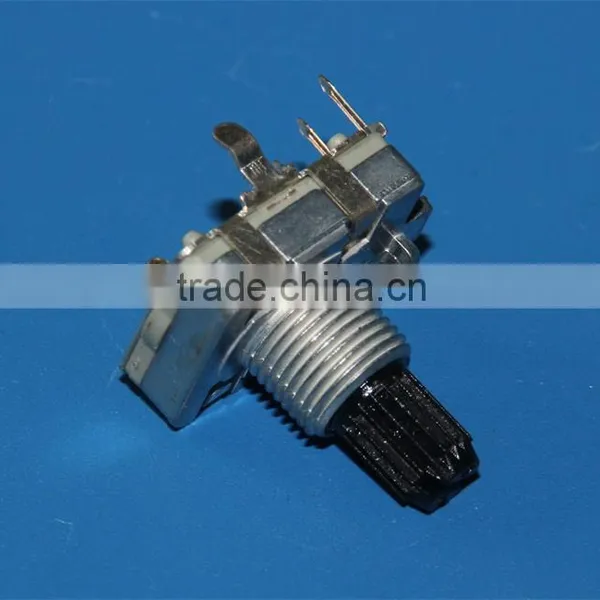

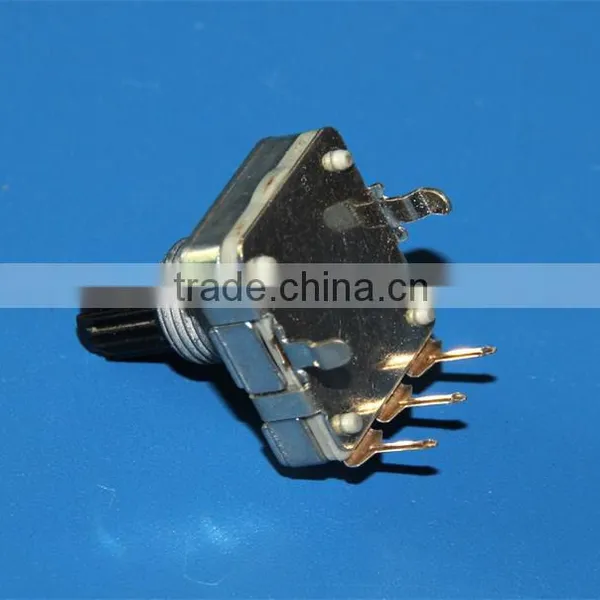

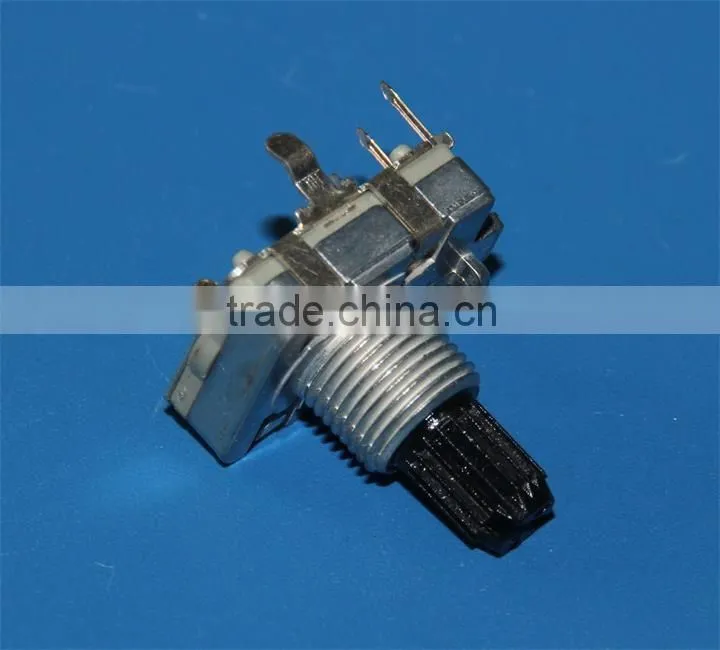

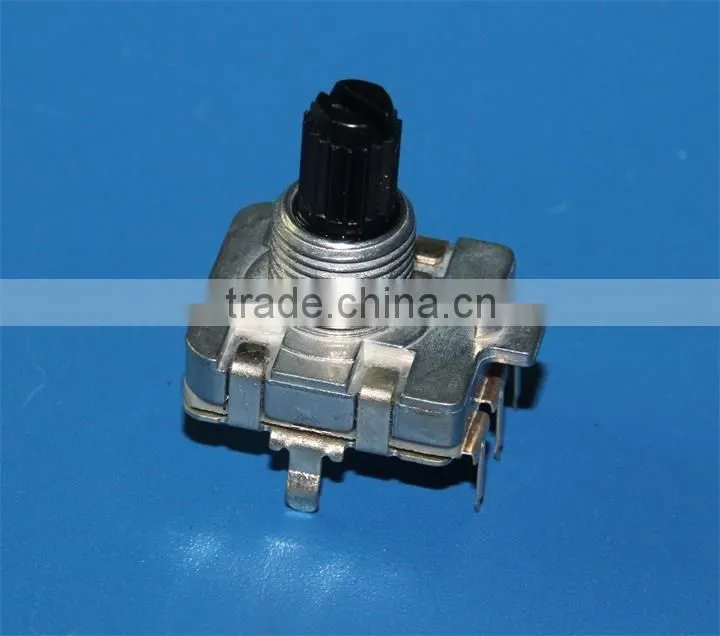

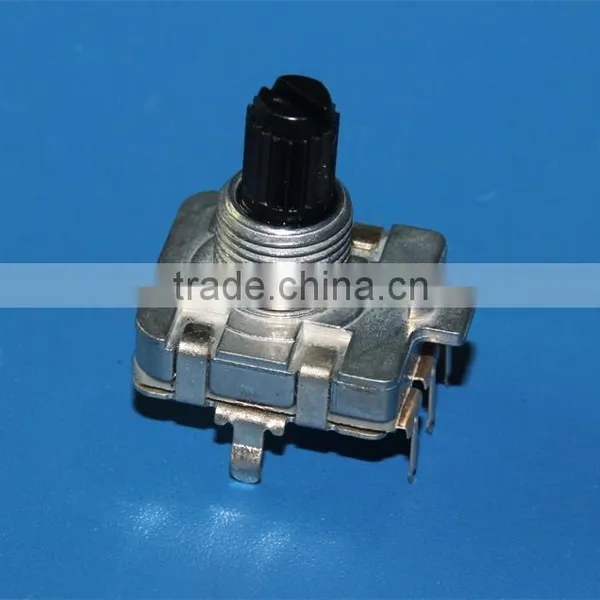

HW-16E 16mm rotary encoder and rotary encoder with flat shaft electric 12&24 detents rotary encoder

1.High resolution of 12 pulse and 24 pulse in 16mm size.

2.Compact and highly accurate contact type encoder.

3.Incremental type.

Specification

1. MECHANICAL CHARACTERISTICS

1-1. Total Rotation Angle: 360°

1-2. Operating Torque Force: 30-200gf.cm (Without starting torque)

1-3. Push-Pull Strength: ≥ 5.1kgf.cm

2. ELECTRICAL CHARACTERISTICS

2-1. Power Rating: DV 5V 0.5mA

2-2. Insulation Resistance: ≤ 10MΩ at DC 50V 1 Minute

2-3. Withstand Voltage: 1minute at AC 50V

3. PUSH-ON SWITCH SPECIFICATION:

3-1. Switch travel: 0.5mm

3-2. Switch Operating Force: 360gf.cm

3-3. Switch Power Rating: DV 5V 10mA

3-4. First Contact Resistance: First period 100mΩ, 200 mΩ after the end of useful life is reached.

3-5. Switch Life: 20,000 cycle Min

4 ENDURANCE:

Rotational Life: ≥ 30,000 cycles

FAQ

Q: Can you provide us samples, is it free or need to pay?

A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.

Q: How to deliver?

A: By sea or by air or courier like UPS, DHL, FedEx.

Q: What’s your payment term?

A: T/T or Western Union

30% deposit, the 70% balance before shipment.

Q: Where is your factory located, is it convenient to visit?

A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.

Assembly Department

	The 1st manufacturing section  Production : F-091 Series ; F-092 Series; F-093 Series;  F-094 Series; F-095 Series; F-24K Series;  F-081 Series; F-082 Series; F-131K Series;  P270 Series; P160 Series; JM10K Series; JN10K Series; JP10K Series; FSR08 Series;  FSR10 Series; J08K Series Rotary Potentiometer,  Switch and so on Monthly Output: 12,000,000 pcs  Typical Application: Mixing consoles and electronic musical instruments, DVD player/recorders in car, game consoles and flat panel TV, electronic toy controllers ,Remote controllers for audio system and TVS and so on.
	The 2rd manufacturing section: Production: 1.F-08E Series F-11E Series; F-12E Series; F-16E Series  rotary encoder  and so on 2. Fxx92 Series; F05G Series; F035G Series;  Fxx31 Series; Fxx05 Series; Fxx06 Series; Fxx43 Series; Fxx45 Series; Fxx2G Series;  F10008GP Series; Fxx46 Series slide potentiometer  and so on 3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer  and so on Monthly Output: 5,000,000 pcs Typical Application: 1. Mixing consoles, DVD play / Recorder, Various AV equipment,  Navigation systems in car and so on 2. Electronic musical instruments, Dimmer .protable audio and  various audio equipment and so on 3. Automobile accessories.
