Product details and Introdution
1.Rotary pulse swtich with 20 pulse.
2.Long life 30,000 cycles min.
| Electrical characteristics | |
| Rating | 0.1A, DC 16V |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | More than 100MΩ at DC 100V |
| Withstand Voltage | AC 100V for 1 minute |
| Mechanical characteristics | |
| Total Rotational Angle | 360°Continuous |
| Resistance to soldering heat | 260°± 5C°, 5Sec. Max |
| Rotational Torque | 70~230gf.cm |
| Changeover Angle | 18°±3° |
| Shaft wobble | 0.17mm Max. |
| Push-Pull Strength | Pull: 10.2Kgf Min; Push: 10.2Kgf Min. |
| Number of detents (click) | 20detent |
| Durability | |
| Operating temperature range | -30℃~+85℃ |
| Rotational Life | 30,000 Cycles Min, CR is 150mΩ Max |
| Cold | -30±2℃ for 96 hours , CR is 150mΩ Max |
| Dry heat | 85±2℃ for 96 hours ,CR is 150mΩ Max |
| Damp heat | 40±2℃ , 90~95% RH for 96 hours, CR is 150mΩ Max |

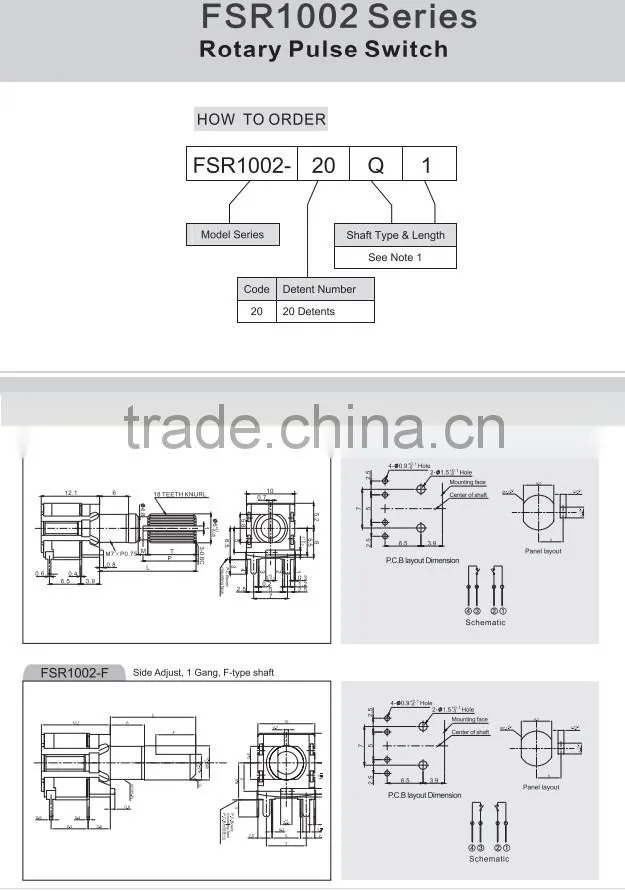

How to order?
