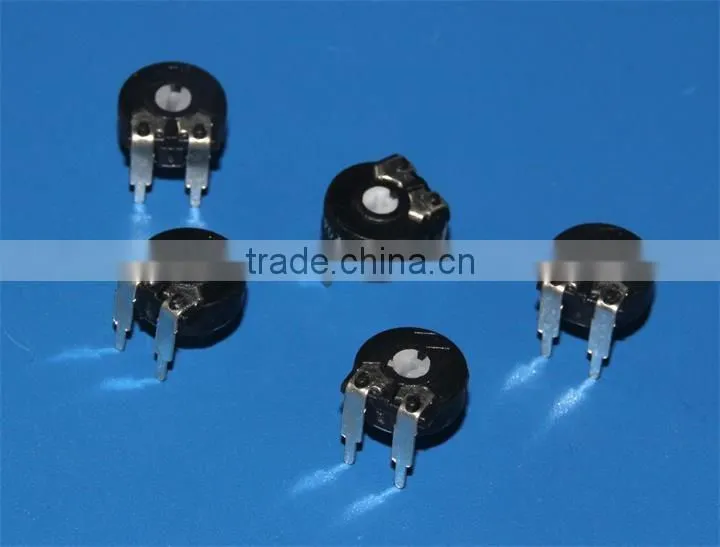

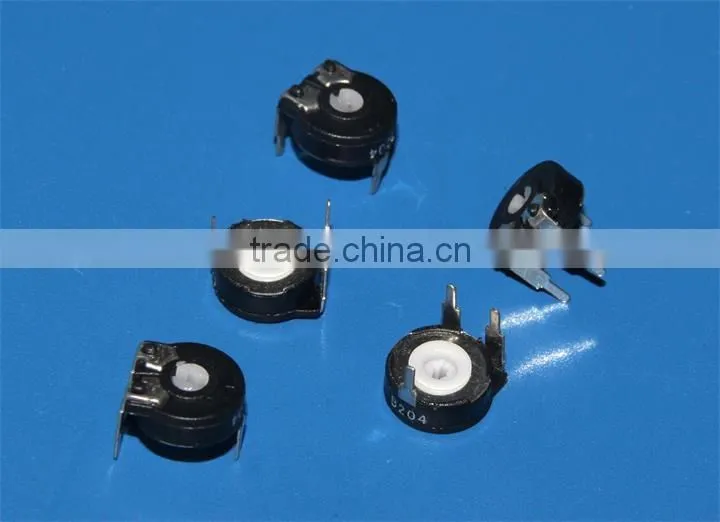

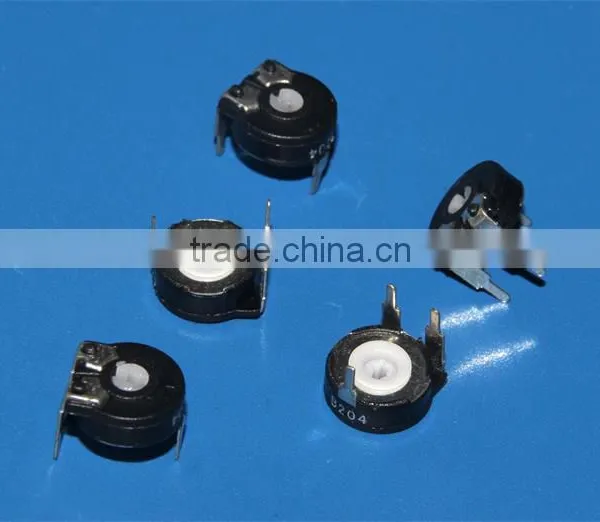

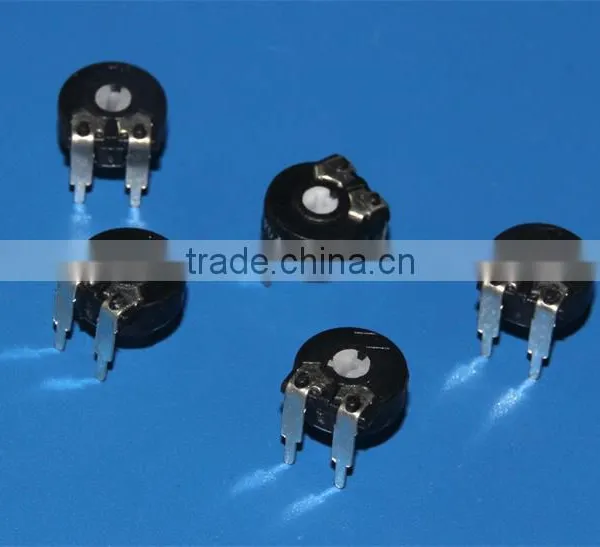

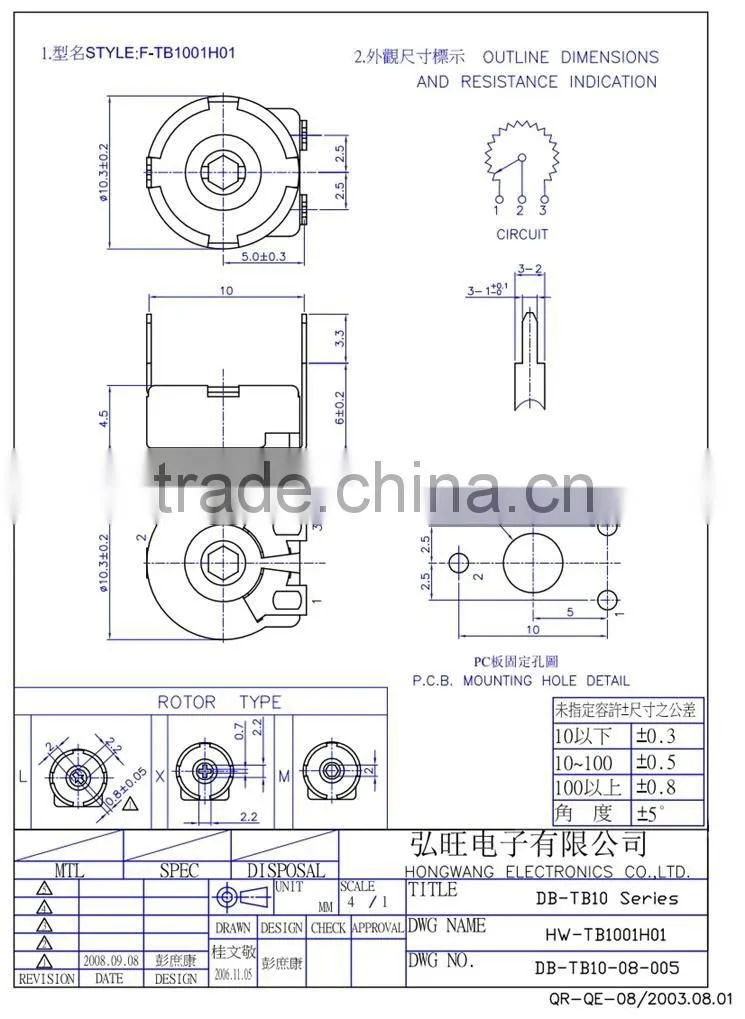

trimmer potentiometer 10k spanish potentiometer carbon 100 ohm trimmer potentiometer

1.1 Nominal Resistance

From 100Ω to 1MΩ

1.2 Resistance Tolerance

±10%,±20%,±30% Optional

1.3 Residual Resistance

Max. 5% of Nominal Resistance Resistance, but under 30Ω

1.4 Resistance Taper

Linear (B)

1.5 Rated Power

0.15 Watt

1.6 Operating Voltage

AC250V Max.

1.7 Rotational Life

Max. ±15% change in resistance after 100 unloaded rotations

1.8 Load Life

Max. ±5% change in resistance after 3 hours loaded

1.9 Insulation Impedance

≥100MΩ (at 100V ac)

2.1 Variable Rotation Angle

270º (less ±20º)

2.2 Rotational Torque

20~450.gf.cm

2.3 Stop-end Strength

less 0.5Kgf.cm

2.4 Mechanical Strength

Bakelite Base not to be broken down under a force

of 1Kg

Specification

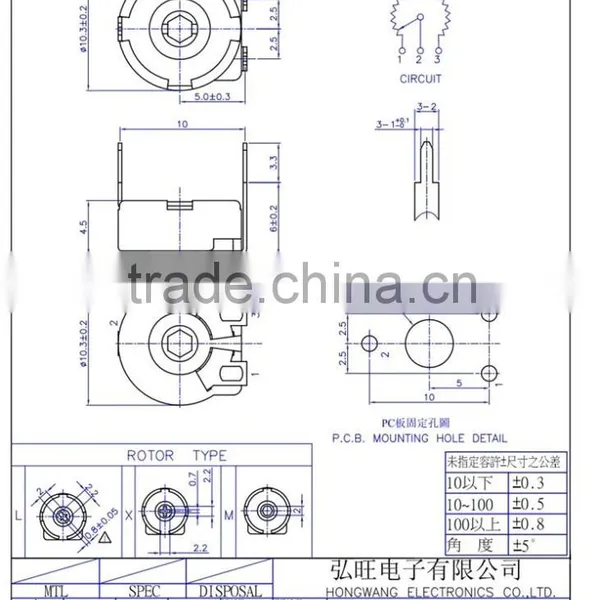

Mechanical Specification:

PA063 SERIES                                  PD063/083 SERIES

Total rotation angle

210°±20°                                         260°±20°

Rotational Torque

20 ~200gf.cm                                   80 ~300gf.cm

Shaft  stop  strength

≤0.4kgf.cm                                        ≤1.0kgf.cm

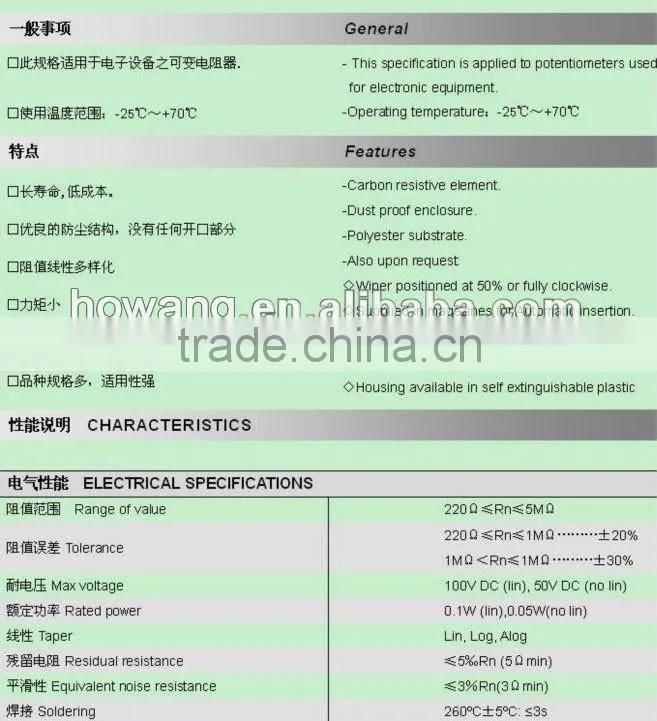

Electrical Specification:

Total Resistance angle

1KΩ<R<1MΩ±20%, 1KΩ≥R≥1MΩ±30%

Power Rating

≤0.1W

Max .Operating Voltage

50V  AC                                             100V   AC

Residual Resiatance

R >1KΩ: 5% Max ; ,R<1KΩ: 30 MaxΩ

Endurance

Rotational Life

≥ 30 cycles
