Can Production Line
- 300 Set / Sets per Month
- Shanghai
- T/T
- Green teapackaging assembly line
- Food service industrypacking and palletizing linkage line
- Packaging assembly line Powdergive bag packaging wire
- Logistics industrypacking and palletizing linkage line Beverage industrybox code stack production line
- Green teatriangle package packaging line
- Beverage industryrear-channel packaging production line Hardware industryback-road packaging assembly line
Product Details
Condition: | New | Application: | Chemical, Food | Packaging Type: | Barrel, Cans |
Packaging Material: | Metal | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | 380V 50HZ | Power: | 60KVA | Place of Origin: | Jiangsu, China |
Brand Name: | SUZHOU FIRST | Model Number: | 9-18Liter Square Can | Dimension(L*W*H): | 20GP |
Weight: | 6000KG | Certification: | CE Certification | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Name:Can Production Line
♦ Main Technical Parameter

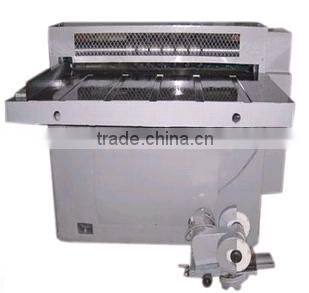

• Cutting Machine
Model | GTIB-15 |
Max.Thickness | 0.5mm |
Sheet Width | 60-1050mm |
Power | 1.1kw |
Net Weight | 1100kg |
Dimension | 1500×1100×1200mm |
• Automatic Rounder
Model | CY400-AT |
Diameter Range | Φ75-Φ300mm |
Thickness | 0.2-0.4mm |
Max width | 440mm |
Capacity | 20-30cans/min |
Net weight | 450kg |
Dimension | 1300x730x1330mm |

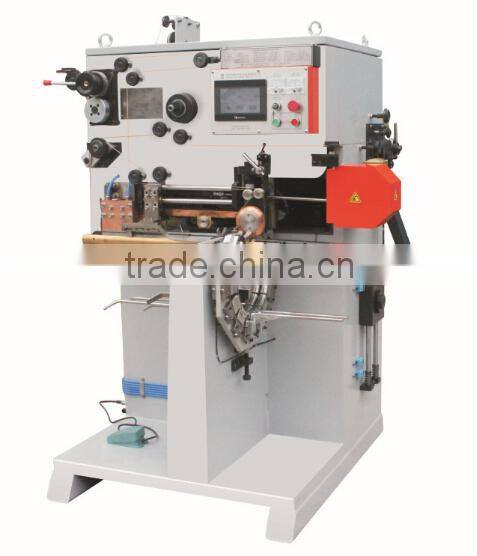

• Backward Seam Welder
Model | FB2000-A | FB2000-B |
Power | 3N.380V/50Hz 15KVA | |
Welding speed | ≤ 12m/min | |
Capacity | 20~50cans/min | |
Diameter Range | Φ65~Φ300mm | Φ 52~Φ180mm |
Height Range | 70~ 420(500)mm |
|
Overlap | 0.6~1.2mm | 0.4~0.9mm |
Thickness | 0.18~0.4mm | 0.18~0.35mm |
Copper wire | Φ 1.5 T2 | |
Cooling water | 0.3MPa 8-10L/min ≤20℃ | |
Net Weight | 1300kg | |
Dimension | 1350×1200×2000mm |
• Square Can Forming Machine
Model | 3F18Y |
Size | 9-18L |
Power | 7.5kw |
Thickness | 0.15-0.38mm |
Productivity | 10-15cans/min |
Deminsion | 1400x720x1400mm |
Net weight | 900kg |
• Square Can Flanging Machine
Model | 3F18F |
Size | 9-18L |
Power | 1.5kw |
Thickness | 0.15-0.3mm |
Productivity | 15-20cans/min |
Deminsion | 1300x700x1100mm |
Net weight | 450kg |
• Automatic Panumatic Sealing Machine
Model | GT4A19YS |
Size | 9-18L |
Power | 1.5kw |
Diagonal Line | 160-190mm |
Thickness | ≤0.4mm |
Height Range | 60--300mm |
Spin rate | 1400 revolutions/min |
Capacity | 15-20cans/min |
Net weight | 1500kg |
Dimension | 2700x950x1850mm |

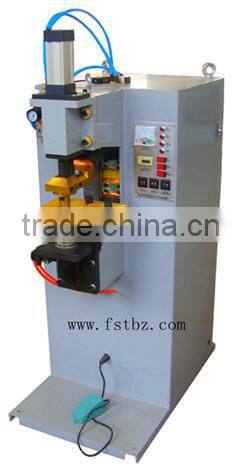

• Panumatic Single-head Welding Machine
Model | DN40B |
Power | 3N 380V/50Hz 40KVA |
Electrode Stroke(mm) | 75 |
Compressed Air | 500L/min 0.6MPa |
Welding material | Tinplate/Galvanized |
Capacity | 10-20cans/min |
Net weight | 300kg |
Dimension | 550x850x1250mm |
♦ Electrical Components
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds.
