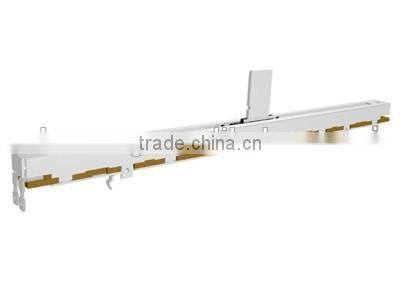

Help CenterHW-10008NP Slide Potentiometer Push the Handle Potentiometer Carbon Element
Related Products
-
HW-6046G Slide Potentiometer Push the Handle Potentiometer Carbon ElementUS$ 0.01 - 1.45MOQ: 1000 Pieces -
HW-4546G1 Slide Potentiometer Push the Handle Potentiometer Carbon ElementUS$ 0.01 - 1.35MOQ: 1000 Pieces
-
HW-4546G Slide Potentiometer Push the Handle Potentiometer Carbon Element Microminiature Type PCB Base Plate With CopperUS$ 0.01 - 1.35MOQ: 1000 Pieces
-
HW-4545G Slide Potentiometer Push the Handle Potentiometer Carbon ElementUS$ 0.01 - 0.6MOQ: 1000 Pieces
-
HW-2031G Slide Potentiometer Push the Handle Potentiometer Carbon ElementUS$ 0.01 - 0.55MOQ: 1000 Pieces
===========================================================================================
Introdution
1.Metal housing.
2.Dust cover option.
3.Available in red green and yellow LED colors.
4.Center detent option.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500 Ω <R<1MΩ: ±20% :R< 500Ω or R>1M Ω:±30% |
| Resistance Taper | A, B, C |
| Withstand Voltage | 1 minute at AC 300V |
| Insulated Resistance | More than 100MΩ at DC 250V |
| Sliding Noise | Less than 100mV |
| Residual Resistance | 20mm: Term.1~2: Less than 10Ω; Term.2~3: Less than 20Ω;30mm, 45mm, 60mm:Term.1~2: Less than 10Ω; Term.2~3: Less than 30Ω |
| Gang Error (Dual Unit) | -40dB~0dB±3dB |
| Rated Voltage | Linear Taper B:15mm:AC 100V; 20mm,30mm,45mm,60mm:AC 200V; Other Tapers:15mm:AC 50V; 20mm,30mm,45mm, |
| Rated Power (Single Unit/Dual gangs) | Linear B Taper: 15mm:0.05W/0.025W,20mm:0.1W/0.05W, 30mm:0.2W/0.1W,45mm:0.25W/0.125W, 60mm:0.2W/0.2W |
| Mechanical characteristics | |
| Level push-pull strength | 3.0Kgf Min at 10Sec. |
| Slide torque | 10gf~100gf |
| Stopper Strength | 5.0Kgf Min (from the base level to a point of 2mm) |
| Detent Torque (only center click) | 50gf~200gf |
| Level Wobble | 2(2xL)/20mm Max. (L: Level length both sides) |
| Durability | |
| Sliding Life | Standard life: 15,000 Cycles Min.; Long life: 100,000 Cycles Min. |
Guangdong Huizhou Howang Electronics CO.,LTD
Business mission:
Customer’s success is our success.
Intention:
Perfect Products, Best Service, Promote E-Concepts.
Value:
Honorable, Respectable, Responsible.
Quality Policy:
Keep Improving, Quality Assurance
The management create the value, the quality change the world.
The earnest practicality to serve customer, study and research the innovation feedback society.
The PS environmental protection organization has been setup. Promotes environmental protections with our efforts through the business activities, saving resources and reducing wastes.
In order to protect human health and environmental quality, we here certify that all products supplied from us are complied with EC Rohs directives requirements. If there is any violation against above announcement, we will be responsible for the cost incurred.
Q: Can you provide us samples, is it free or need to pay?
A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.
Q: How to deliver?
A: By sea or by air or courier like UPS, DHL, FedEx.
Q: What’s your payment term?
A: T/T or Western Union
30% deposit, the 70% balance before shipment.
Q: Where is your factory located, is it convenient to visit?
A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.
shippment & payment:
we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
