_____10-20L Tnplate Conical Can Body Making Machines_____
Name and Picture |
Technical Specifications |
|
Slitting Machine |
Model------------------------------GTIB-15 Max.Thickness--------------------0.5mm Sheet Width------------------------60-1059mm Power-------------------------------1.1kw Net Weight--------------------------1100kg Dimension-----------------1500x1100x1200mm |
|
Automatic Rounder |
Model--------------------------------CY400-AT Diameter range------------------Φ75-Φ300mm Thickness----------------------------0.5-0.6mm Max width---------------------------430mm Capacity----------------------------20-30cans/min Net weight--------------------------450kg Dimension-------------------1300x730x1330mm |
|
Manual Can Body Seam Welder
|
Model -------------------------FB2000-A Power ---------------3N.380V/50Hz 15KVA Welding speed --------------- ≤ 12m/min Capacity ---------------------20~50cans/min Diameter Range ------------Φ65~Φ300mm Height Range ----------------70~ 400mm Overlap -----------------------0.6~1.2mm Thickness --------------------0.2~0.38mm Copper wire -----------------Φ1.5 T2 Cooling water----------0.3MPa 8-10L/min ≤20℃ Net Weight -------------------1300kg Dimension --------------1350×1300×1700mm
|
|
Hydraulic Conical Shape Machine |
Model------------------------------3TD20 Power------------------------------5.5KW Capacity--------------------------15-18cans/min Diameter--------------------------210-300mm Height-----------------------------270-400mm Thickness--------------------------≤0.5mm Net Weight-------------------------900KG Dimension--------------------1300x700x1150mm |
|
Hydraulic Per-curling and Flanging Machine |
Model------------------------------3TB20 Power------------------------------5.5KW Capacity--------------------------15-18cans/min Diameter--------------------------210-300mm Height-----------------------------270-400mm Thickness--------------------------≤0.5mm Net Weight-------------------------900KG Dimension--------------------1300x700x1750mm |
|

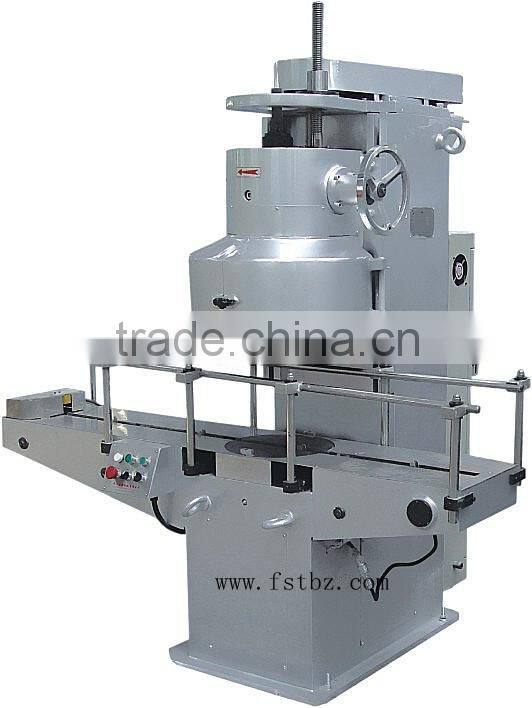

Pneumatic Can Seamer |
Model------------------------------GT4A39-R Power------------------------------2.2KW Can Diameter---------------------Φ210-Φ300mm Can Height------------------------60-400mm Capacity--------------------------12-16cans/min Thickness--------------------------0.15-0.4mm Spin rate---------------------1420 revolutions/min Net Weight-------------------------800KG Dimension--------------------980x580x1900mm
|

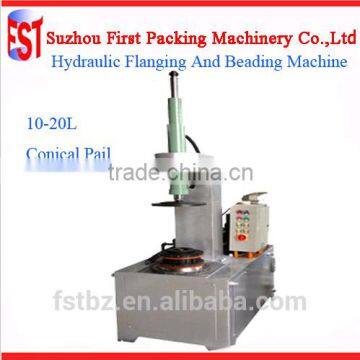

Hydraulic Flanging and Beading Machine |
Model------------------------------3TC20 Power------------------------------5.5KW Capacity--------------------------15-18cans/min Diameter--------------------------210-300mm Height-----------------------------270-400mm Thickness--------------------------≤0.5mm Net Weight-------------------------950KG Dimension--------------------1470x940x1980mm |
|

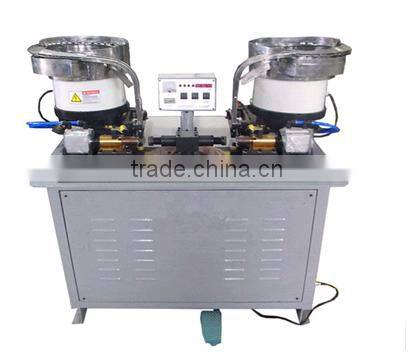

Pneumatic Double-Head Spot Welder |
Model ---------------------DNZ60B Power---------------------2N38050HZ 60KVA Capacity------------------10-20cans/min Compressed air----------900L/min 0.6Mpa Can Diameter------------150-180 or 220-300mm Net Weight---------------500kg Dimension----------------1350x1000x1550mm |
|
Automatic Presser |
|
| |
_____________________Our Advantage_______________________
♦ MITSUBISH or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON control thyristors from German.
♦ BOURNS potentiometer from America.
♦ AIRTAC pneumatic components and YONGKUN motor from Taiwan.
♦ KOMPASS hydraulic system from Taiwan.
♦ SHANGHAI BAOSTEEL Cr12MoV material are used in making Moulds.
__________________Company Information_________________
_____________________To Customers____________________
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 18 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
_____________________Contact Me______________________
choose one way you like,and send me by mail or call me or online.
