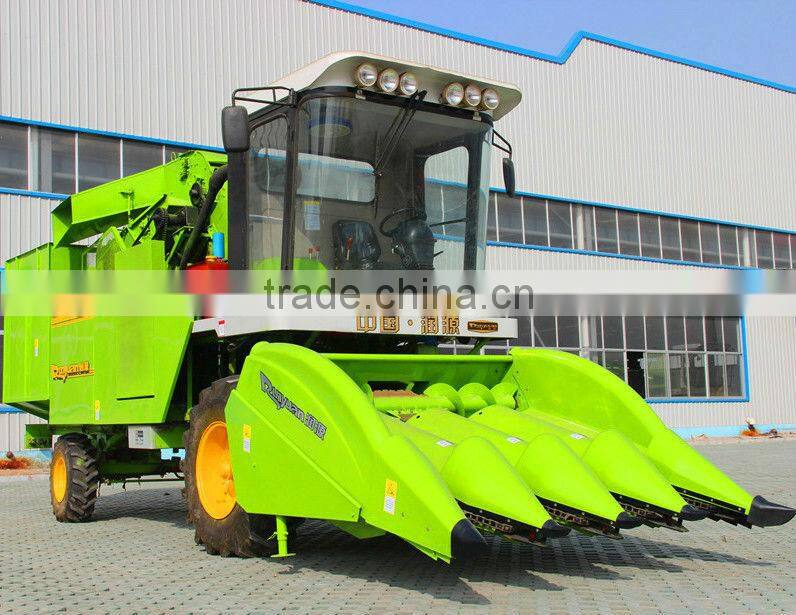

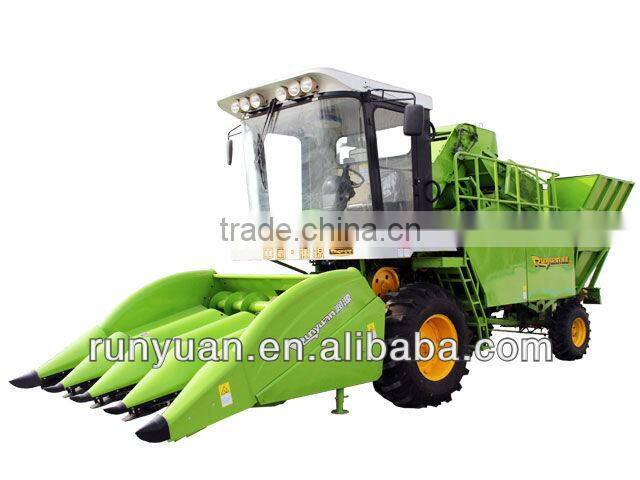

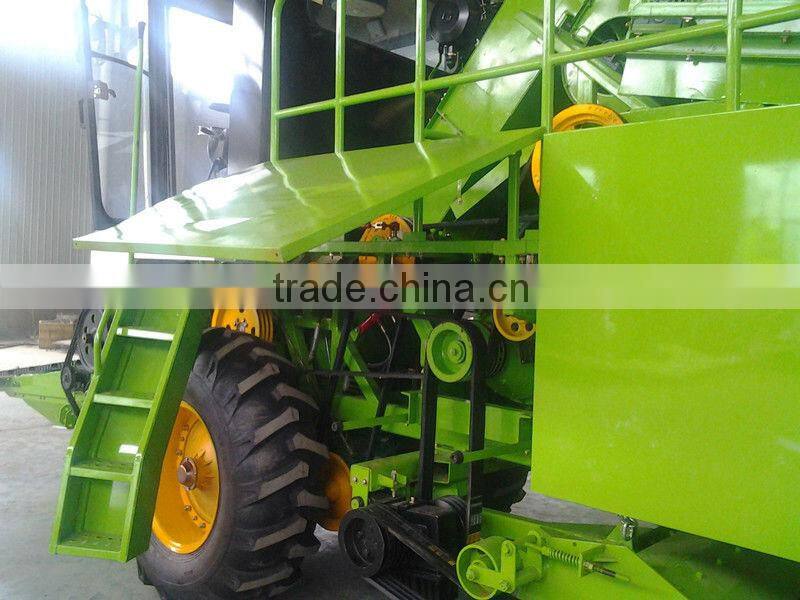

4YZ-4B small corn combine harvester with straw smashing machine features:
1.optimized operation system
2.Low fuel consuption and less pollution
3.peeling system equipped
4.high working efficiency
5.it can harvest corn cob with peeling
6.low corn lost ratio
7.voice back
8.2 cubic meter silo
9.Adjustable Steering Rack
sweet mini Corn Combined Harvester 4YZ-4B Features:
4YZ-4B corn harvester mini harvester for 460~600mm line spacing corn field features:
1.optimized operation system
2.Low fuel consuption and less pollution
3.peeling system attached
4.high working efficiency
5.it can harvest corn cob with peeling
6.low corn lost ratio
7.voice back
8.2 cubic meter silo
9.Adjustable Steering Rack
Technical parameters:
Row spacing(mm) | 460-600 | Oil tank(L) | 200 |
Capacity(hm2/h) | 0.4-0.8 | Grain tank (cbm) | 2.8 |
Loss ratio(%) | Less than 1.5 | Total weight(kg) | 6200 |
Seeds breakage ratio(%) | Less than 1 | Dimensions L*W*H(mm) | 8100*2300*3450 |
Stubble height(mm) | Less than 80 | Power (hp) | 140 |

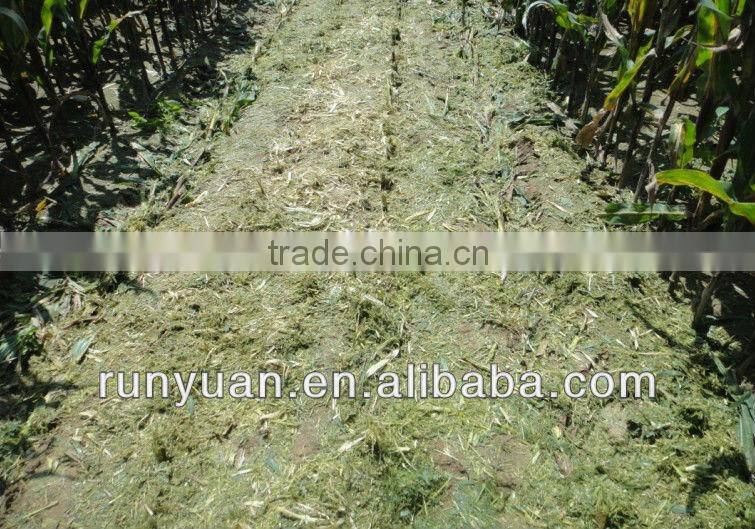

Crushed corn straw length(mm) | Less than 100 | Drive | Front-wheel drive |
Model | 4YZ-4B | Throughput | 8-14 |

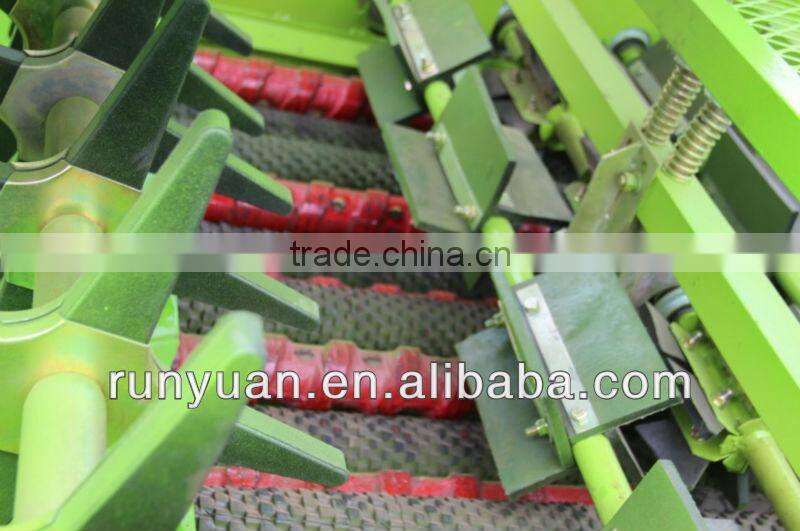

Power(KW/HP) | 103/140 | Picking mode | Combined type of pulling stem roller and picking board |
Dimension(L*W*H) | 8100*2300*3450 | Shift gears mode and No. | Step-less shift gears; 4 shifts and 1 reverse gear |

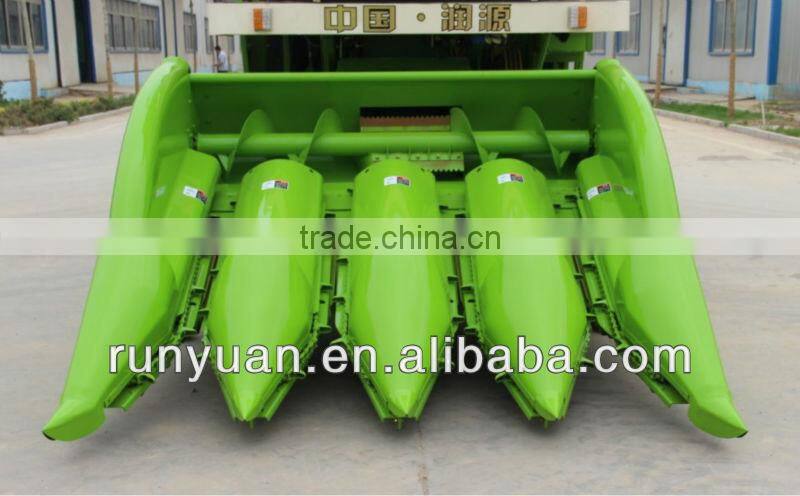

No. of harvesting rows | 4 | Tread (mm) of driving wheel ( former axle) | 1950 |
Model of diesel motor | YC6108ZT | Tread (mm) of driving wheel (rear axle) | 1845-2145(changeable) |
Fuel consumption (kg/h) | ≤25 | Wheelbase(mm) | 3550 |
Adapting row spacing/ best row spacing | 530-580 | Min. turning radius (mm) | 6250 |
Working range (mm) | 2600 | Max. unloading height (mm) | 2130 |
Total weight (kg) | 6300 | Min. picking height (mm) | 300 |
Welcome to our company having a visit.
FAQ:
1. How can we learn to drive this harvester?
Answer: You are welcome to our factory, and then we will supply room and board and train you all free.
2.Do we have to buy quick-wear parts with the machine?
Answer: Yes and we will send you some parts free of charge.
3.Is there any discount?
Answer: Discount is according to the quantity you purchase.
4.How is the quality of the harvesrter?
Answer: We have been in this field for many years and can supply high quality harvester for you.
You just have to change the quick-wear parts timely.
