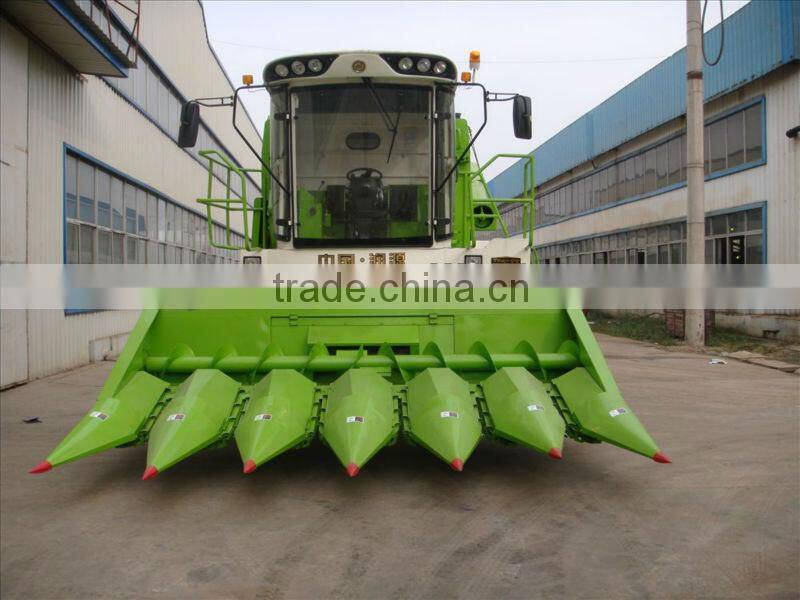

Large Tractor-mounted Corn/maize Harvester 4YZ-6

We can supply No.4YZ-6 Corn combine harvester.

1) Power: 125/170hp
2) Total weight (kg): 8530

3) Dimensions (L*W*H): 9000*4050*3000mm

4) Working row:6

5) Output:  6000-8500sqm/h

6)cutting width: 3900mm
7)picker type: combination of stubble-pulling roller and picker





model	4YZ-6
power(kw/hp)	125/170
dimensions L*W*H(mm)	9000*4050*3000
the harvesting No. of rows	6
engine type	YC6108ZT
adapt spacing	650
fuel consumption(kg/hm2)	20-40
cutting width(mm)	3900
total weight(kg)	8530
productivity(sqm/h)	10-18
walking speed(km/h)	1.05-19.7( forward gear)   2.40-5.55(reverse gear)

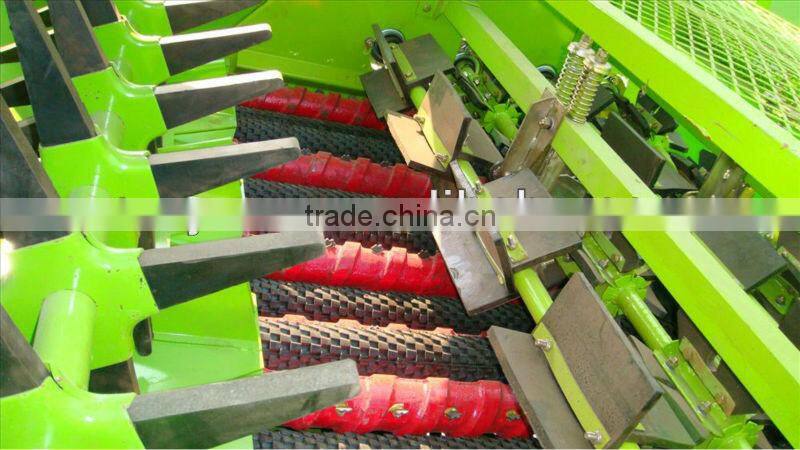

Picker type	combination of stubble-pulling roller and picker board
Max picking height(mm)	2330
Min picking height(mm)	300

Specifications:

1)  Supporting reel protect cover makes repairing and maintaining convenient.

2)  Disguised front ladder makes operation simple and getting on/off convenient.

3)  Vibratile sieve set makes grain much cleaner.

4)  Higher clearage: twice rethreshing and separating makes grain cleaner.

5)  Clutch on straw disintegrator can protect the harvester from being damaged with sudden power failure.

6)  Hydraulic control of real lifting and grain turning over can change the ground clearance at any time.

7)  Infrared monitor system: visible reserving radar, peeler and grain tank monitor system can be operated conveniently and improve productivity.

8)  Straw crusher set: can meet different needs according to users and be operated conveniently.

9)  Peeler set can peel 85% or above of crops with different mature periods.

FAQ:

1. How can we learn to drive this harvester?

Answer: You are welcome to our factory, and then we will supply room and board and train you all free.

2.Do we have to buy quick-wear parts with the machine?

Answer: Yes and we will send you some parts free of charge.

3.Is there any discount?

Answer: Discount is according to the quantity you purchase.

4.How is the quality of the harvesrter?

Answer: We have been in this field for many years and can supply high quality harvester for you.

You just have to change the quick-wear parts timely.
