Specifications
blending machineGMP
CE
ISO

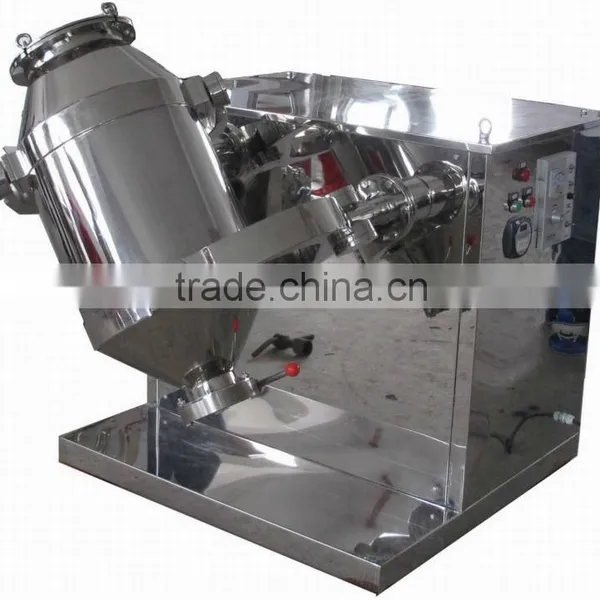

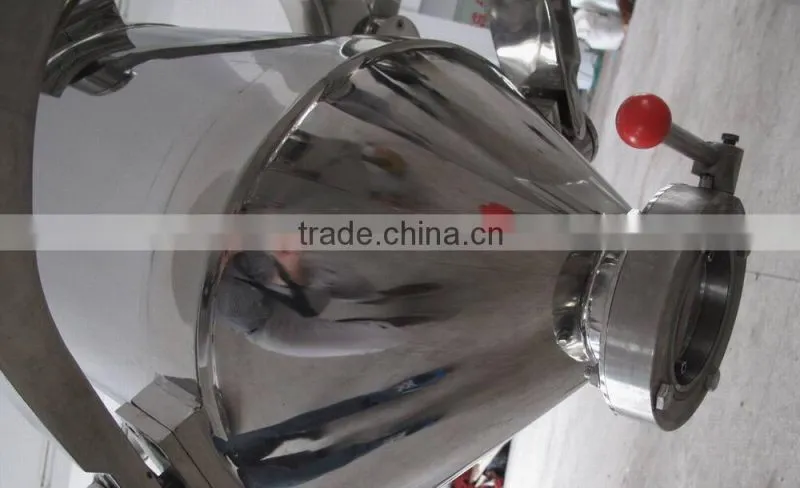

SYH-50 three dimensional blending machine & mixing machine
Main Introduction:
Driven by the driving shaft,the barrel with the materials loaded performs cycling compound movements of translation ,rotation and tumbling ,which make the materials move annual ,radially and axially along the barrel body ,thus achieving mutual flow ,spread accumulation and mixing of materials for the purpose of fully mixing.
Technical Parameters:
Model |
SYH-50 |
SYH-100 |
SYH-200 |
SYH-400 |
SYH-600 |
SYH-800 |
SYH-1000 |
barrel volume(L) |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
Max. Loading capacity(L) |
45 |
90 |
180 |
360 |
540 |
720 |
900 |
Max. Loading weight(kg) |
25-45 |
50-90 |
100-180 |
200-360 |
300-540 |
400-750 |
550-900 |
Speed of driving shaft(r/min) |
8-15 |
||||||
Motor power(Kw) |
1.1 |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
7.5 |
Overall dimension (mm) |
1150×1400 |
1250×1800 |
1450×2000 |
1650×2200 |
1850×2500 |
2100×2650 |
2150×2800 |
Total Weight(kg) |
300 |
800 |
1200 |
1200 |
1500 |
2000 |
2500 |
