Specifications
soft gelatin encapsulation machineGMP standard
ISO9001 certificate
SUS304
MINI line

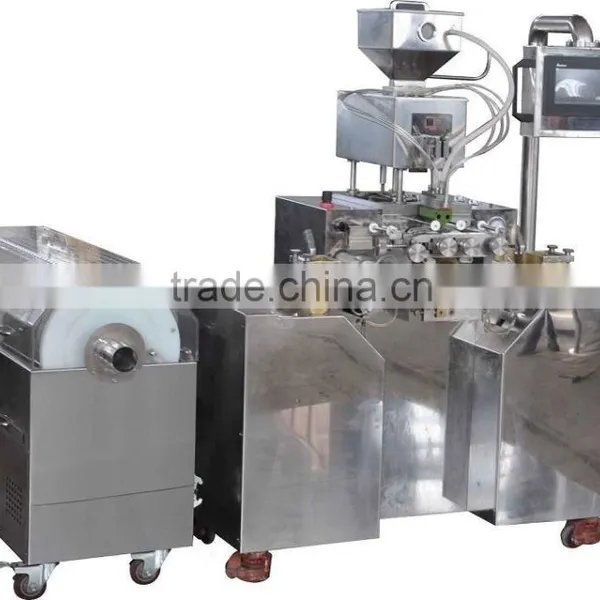

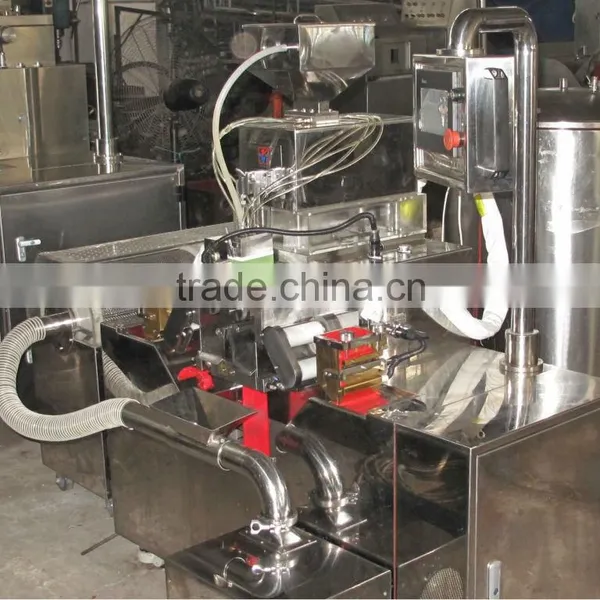

SGC100 Mini Soft Gelatin encapsulation machine & production line
Features:
Automatic soft gelatin encapsulation machine is a new generation of roller die type water cooling type soft gelatin encapsulation machine that optimized designed and precise manufactured on the basis of foreign latest technology. Its main technical index reach to the international advanced level and conforms to the GMP standard.

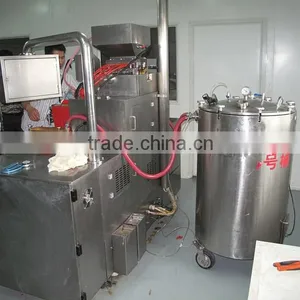

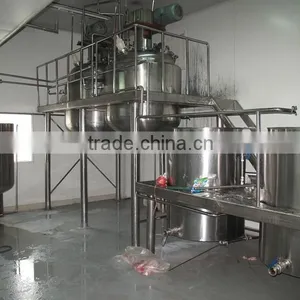

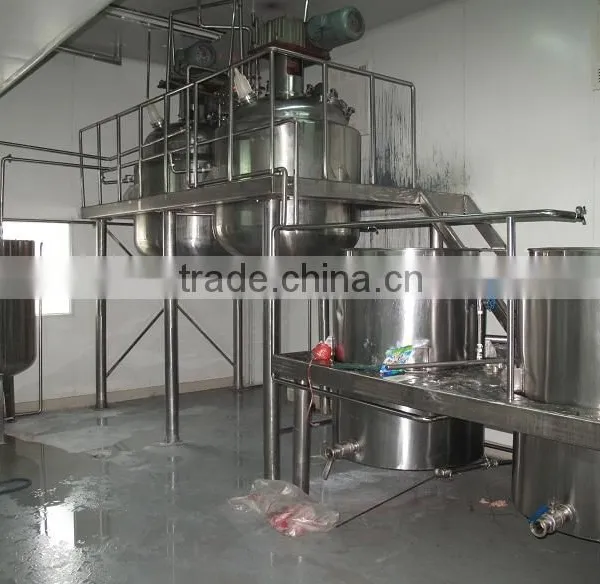

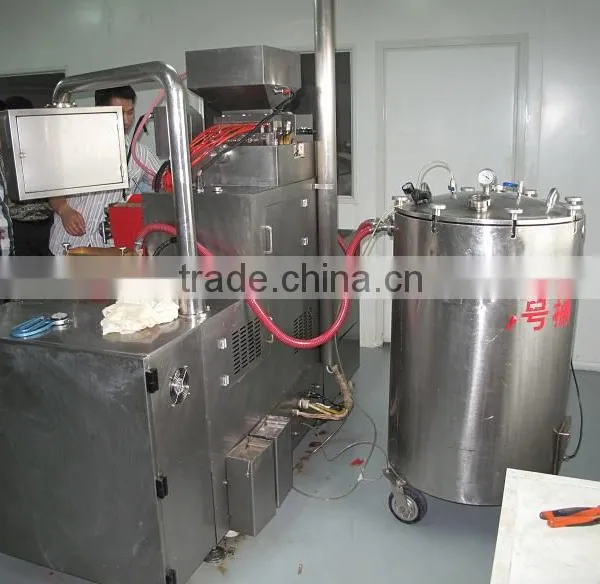

consists of main machine, gelatin melting tank, insulated gelatin storage tank, electric control cabinet, conveyor, shape/drying rotary cage, colloid mill etc. The working principles: put the oil, gelatin-insoluble liquid, paste, plaster (e.g. extract plaster from Chinese herbs) inject into between two gelatin skin quantificationally, through the two roller dies and press and cutting into various shape soft capsules, such as egg shape, fish shape, cylinder, ball shape, calabash shape. The product is widely used in pharmaceutical, cosmetic, health food and pesticide etc.
This production line includes the following ten merits:
1. The water cooling type eliminates the dust contamination caused by the air cooling.
- Optimization design the roller die, increase the output of 30--40% than the old model (6 inch roller dies) meanwhile enhance the utilization ratio of gelatin.
- The gelatin conveyance of insulated gelatin storage tank adopt air pressure type through the ground, which improves the production environment.
- The capsule conveyance belt adopt food-grade conveyance belt (FDA approved) produced by Lexno Corporation (USA) which is non-toxic, non-sticky, and easy to wash.

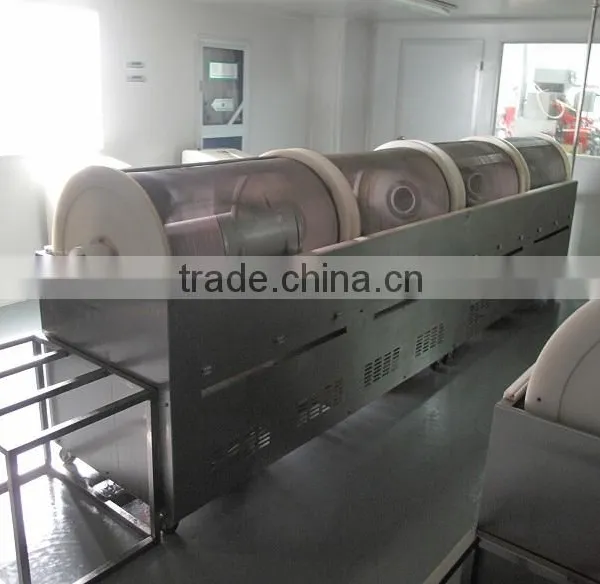

- The shape and drying rotary cage is made of stainless steel net sheet, which is no dead corners and easy to wash. An oil basin placed under the rotary cage to ensure there is no oil drops during the production.
- All the electric parts adopt well-known brand in the world, the performances is stable.
- The 10-station and 14-station injection rod equipped with the machine, it can use the width of roller dies while producing the small dosage products, enhances the utilization ratio of gelatin and output.
- It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.
- The improved capsule-peeling unit minimizes the probability that the waste gelatin skin enwind onto the gelatin-peeling rod.
- The S.S that contact with the medicine adopt superior S.S 304# and 316L# except the injector, the gelatin spreading box, roller die conveyance belt adop special material. It is conform to GMP standard completely.
Roll mould speed: |
0-5rmp |
|
Roll mould size: |
φ64×100mm |
|
Output |
10000pcs/hr for , olive shape,500mg/pcs |
|
Single piston medicine supplying capacity : |
0-1.5(ml) |
|
Filling precision (error rate ) |
Less than ±2% |
|
Voltage : |
380V 50HZ or 220v/3/ 60hz |
|
Power: |
0.75Kw |
|
Overall size : |
1300X510X1300mm |
|
Component list |
PLC |
SIEMENS |
24V POWER |
SHANGHAI |
|
TRANSDUCER |
DELTA |
|
AIR SWITCH |
SCHENIER |
|
CONTACTOR |
SCHENIER |
|
MIDDLE RELAY |
SCHENIER |
|
TOUCH SCREEN |
WEILUN |
|
