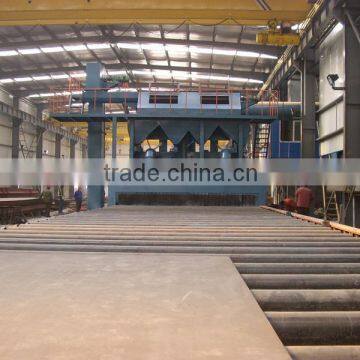

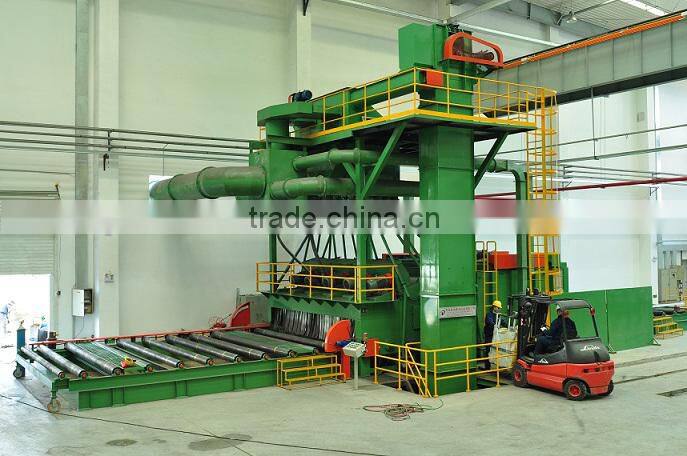

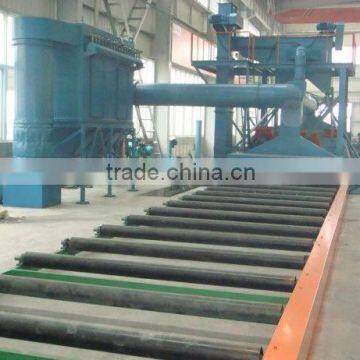

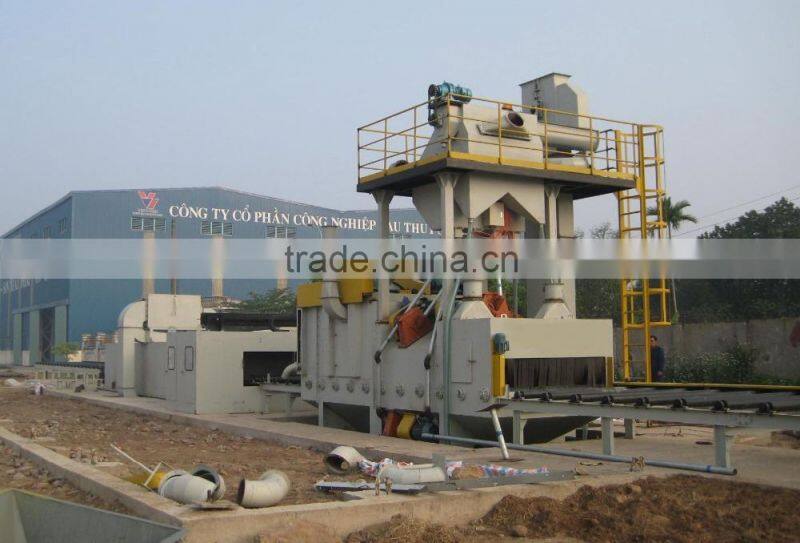

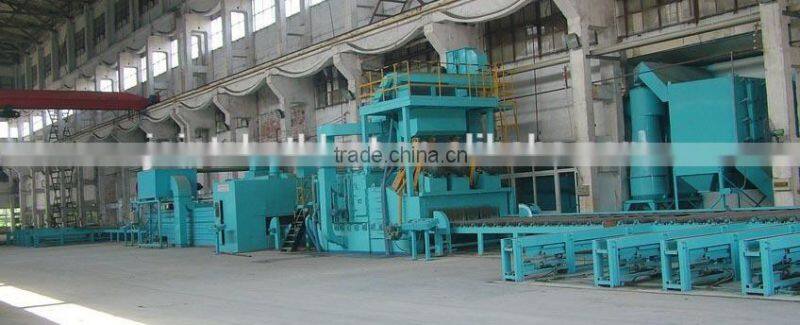

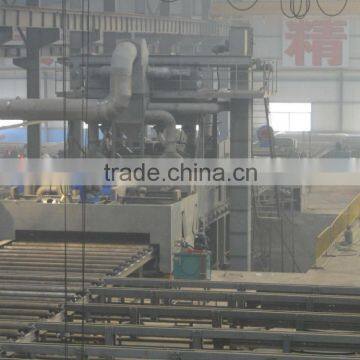

Roller Conveyor Plate Blast Machine Q6930 CleanerTM
CleanerTM descaling systems are available for a wide variety of steel products -- plate, sheets, strip, wire, bars, billets, slabs, rolled and fabricated structural shapes, and miscellaneous weldments, pipe, tubing and gas cylinders. Special systems, such as mill roll etching machines, are also available.
The standard Roller Conveyor is our type CleanerTM blast machine, available in throughfeed widths from 600 mm to 5000 mm.
Customized equipment thereby ensuring the customer ends up with a piece of equipment that will perfectly fit their facility and blasting requirements.
Automatic loading/unloading systems are optional.
Find more detailed information about the offerings from each model below.

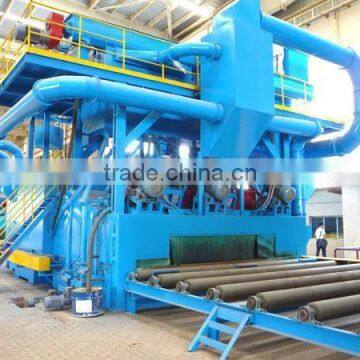

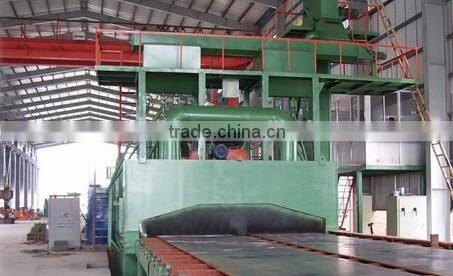

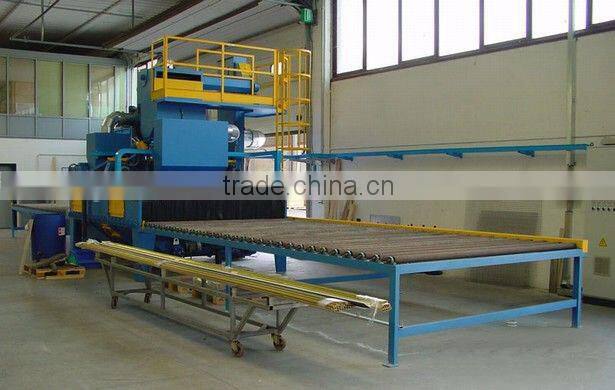

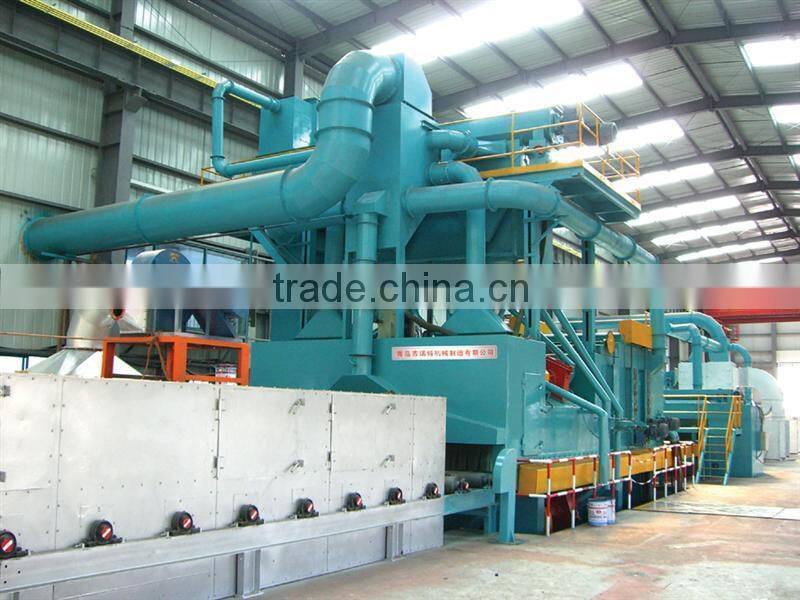

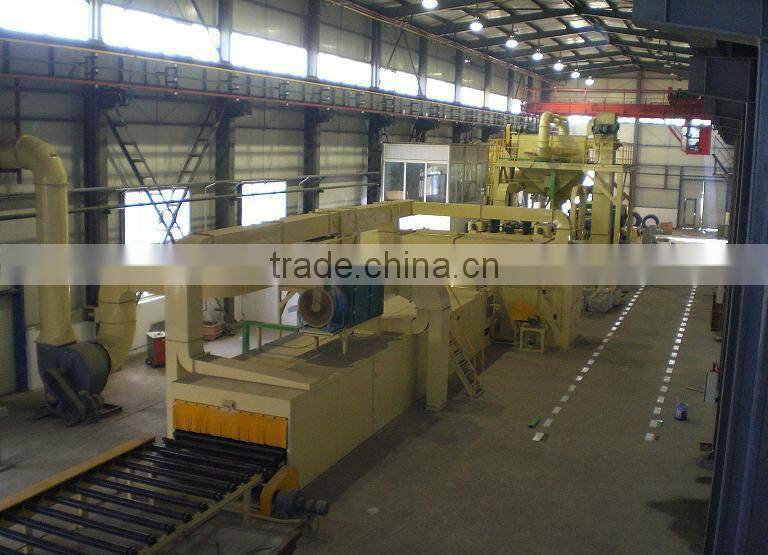

Q6930 CleanerTM Roller machines are self contained, robustly built and designed for the economical and efficient surface treatment of sheets and profiles.
• Self contained, fully equipped shot blast machine

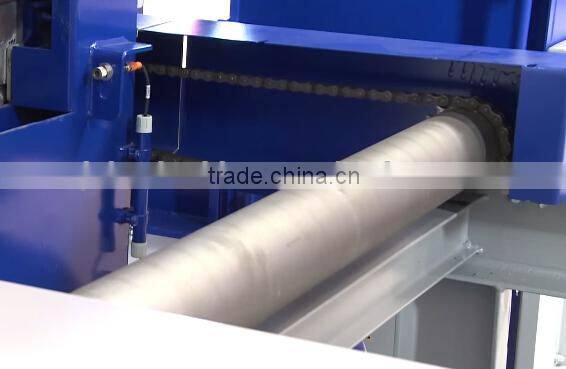

• Solid manganese rolls in blast compartment

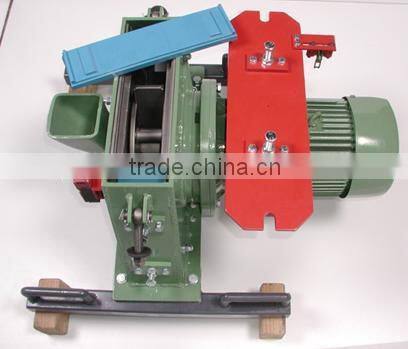

• Tested and proven WildblastTM blast wheels
• Automatic abrasive removal system
• Automatic PLC control
• Installed without the need for further exhaust ducting
• Quick turnaround, easy assembly and commissioning
• High life time by use of S-WindTM air separator.
The systems can be used as single machines or integrated into descaling and anti-corrosion treatment lines.
| Type | Q698 | Q6915 | Q6920 | Q6930 | Q6940 |
| Machine Entrance Width | 600 mm | 1500 mm | 2000 mm | 3000 mm | 5000 mm |
| Machine Entrance Height | 550 mm | 550 mm | 550 mm | 800 mm | 800 mm |
| Wheels*Power | 4*7.5 kw | 4*11 kw | 4*15 kw | 6*15 kw | 8*15 kw |
| Upper Edge Roller Conveyor (variable) | 1000 mm | 1100 mm | 950 mm | 950 mm | 950 mm |
| Work Speed | 1-4 m/min |
||||
Seaworthy plastic bag+plywood box.
20' GP or 40' GP.
As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
Leading companies in the foundry, automotive, aerospace, energy, marine, rail, construction and many other industries have used Joint Group’s products and services to improve productivity and profitability for over 50 years.
Joint Group continues to use the experience of having the large installed base in the industry to deliver the best solution for the customer. Joint Group’s approach to solving customers’ operating challenges is unique in the industry. Using insight gained from thousands of different applications across a variety of different industries.
