Specifications
FFS Packaging Machinefor sauce
GMP
CE
ISO9001

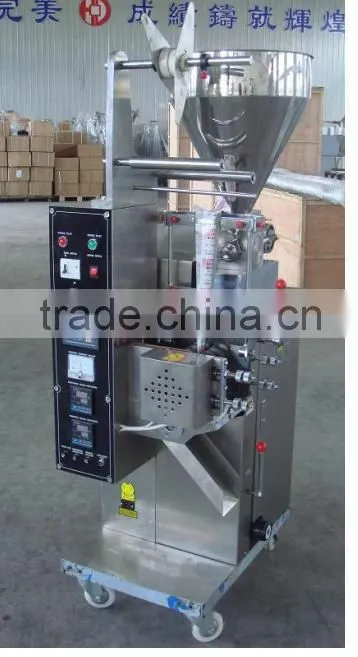

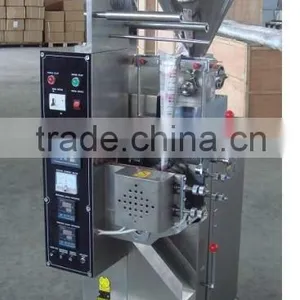

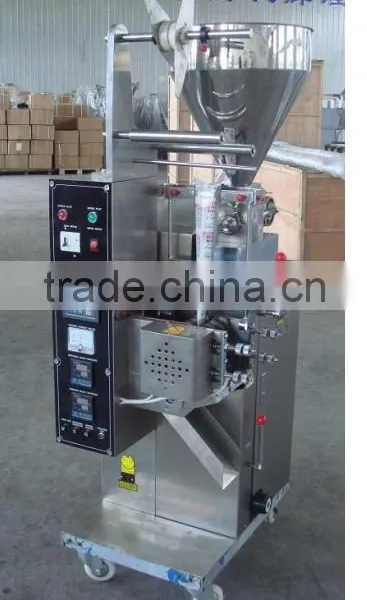

DXDJ-40II/150II Automatic Sauce FFS Packaging Machine
Applications:
It is suitable for automatically packaging of viscous products with free-flowing such as tomato sauce lotion noodle jam, edible oil ,meat jam and broth The processes of bag making measuring, filling, sealing, counting and hot pressing codes can be done automatically Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE,PET/PE,NYLON etc.
Ⅱ.Features:
1. All stainless steel cover meets to GMP standard.
2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5. The horizontal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
8. Sealing part: roller spend process is special designed and the effect of sealing is very well.
9. have gained the European CE certification.
10. Equipped with easy open system.
11. The machine can be equipped with a product stirrer and heated jacket for high temperature product packaging.
Ⅲ.Option
1.Ink printer
2. Mixer
.Technical Data
TYPE |
DXDJ-40II |
DXDJ-150II |
Bag size |
L55-110 /W30-80mm |
L70-150 /W70-115mm |
Capacity |
40-85 bags/min |
35-60 bags/min |
Filling range |
5-40 ml |
30-150 ml |
Power |
220V,50HZ,1.5KW |
220V,50HZ,1.9KW |
Weight |
350 KGS |
450 KGS |
Dimension(L*W*H) |
600X 790X1780 mm3 (L*W*H) |
700X 800X1900 mm3(L*W*H) |
