DCJ300 sachet liquid FFS packing machine (multi-pictures)
Main Introduction:

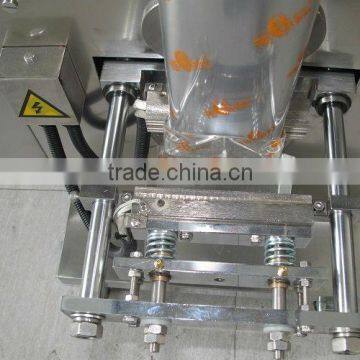

Three-step roller three-side sealing . Continuous running not only fast in speed, stable in function and low in noise, but also is firm in sealing, reliable in airtight, smooth and delicacy in bag's outlook, and extraordinary in packing efficiency.

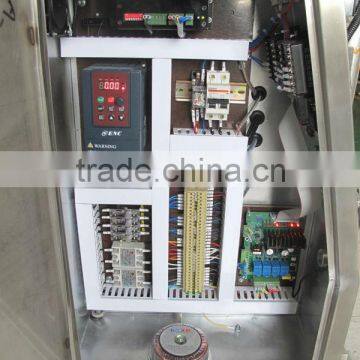

An imported frequency changer is adopted for step-less speed adjustable, intelligent temperature controller regulates the temperature at the sealing. It is reliable in performance, convenient in operating.

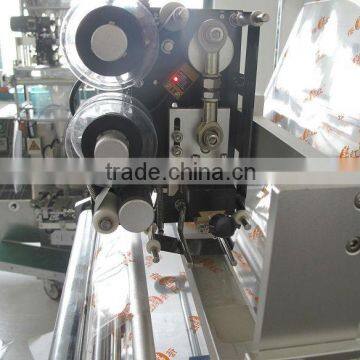

Photoelectric tracking system is adopted to ensure the automatic correcting of the double face printing design on the packing bags, precise in counting.

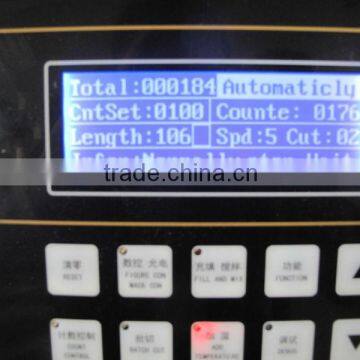

Liquid & crystal touching display screen is adopted to realize the menus type speaks between man and machine.
It can do step-less adjust for the length of the bag without changing the mould. It is suitable to produce single machine with a great variety.
It is precise in measuring and able to fill material in high temperature, more suitable for high-speed packing machine.
Technical Specifications
Specifications |
DCJ-200 |
DCJ 240 |
DCJ 300 |
Bag forming & sealing type |
Three side |
Three/four-side Sealing |
Three/four side/back seal |
Method of Measurement |
Piston type |
||
Range of Measurement |
0-100ml |
0-100 ml |
0-150 ml or customed to need |
Packing Speed |
40-60bag/min |
40-60 bag/min |
20-60 bag/min |
Bag Size |
W/30-100mm L/30-120mm Can be made to need size |
W:30-120 mm Can be made to need size |
W: 30-150 mm Can be made to need size |
Bag Size in(INCH) |
Width: 0.4—4.72 Length: 1.18—3.9 And can be made to need |
Width: 0.4—4.72 Length: 1.18—6.1 And can be made to need |
Width: 0.4—5.9 Length: 1.18—6.1 And can be made to need |
Total Power |
1100w |
1400W |
1600W |
Voltage |
220V/1 or Made to need |
||
Weight |
180kg |
200kg |
250kg |
Outline Dimensions |
625*751*1558 mm |
625*751*1558mm |
1010*730*1780 mm |
