Specifications
1. RATED SPEED: 130SPM 2. GERA RATIO: 3.483 3. STROKE LENGTH; 273 MM 4. WEIGHTS;17600KG
ADVANTAGES:
1.OEM Manufacturer & Factory;
2. Quality Guarantee for one year;
3.API 7K/ISO 9001 certified
Qingzhou Petroleum Machinery Co., Ltd. is a professional manufacturer of oil drilling equipment strictly according to API and ISO standard. There is mud pump, mud pump package and their parts in our company only.Although the kinds of our product are not so many, but we are very professional, we built in 1966 with more than 40 years of producing experience.
Our pump power ranges from 350HP to 1600HP. We now have three series pumps for your choice, American Emsco F series (F500-F1600) and China 3NB series( 3NB350-3NB1300) and Garden Denver PZ series(PZ8-PZ11). They are a little different in pump structures.
The reasons for you to choose QINGZHOU PETROLEUM MACHIERY as your pump supplier:
1 Quality Assurance: Many of professional inspectors perform strict quality inspection from the initial forgings, castings, other raw materials, each finished machined parts until the final assembling of the pump. Each part assembled on the pump will be well tested and highly qualified. And for each pump finished, it will be running tested in our test center for at least 4 hours. Quality certificate, Inspection report and testing report will be attached when pump is delivered. One (1) year guarantee will be offered for each pump.
2 Competitive Price:We are one of the top 3 pump manufacturers in China. The other two are BOMCO and LSNOI. But as one private company, we have the greatest advantages in price. We can not offer you the lowest price in China, but most competitive price but with very good quality.
3 Various Certificates:Our company are well qualified with international standard certificates: (1) ISO9001:2000 (from year 2006); (2) API 7K 7K-0214,We can offer unitized pump package according to your different needs:

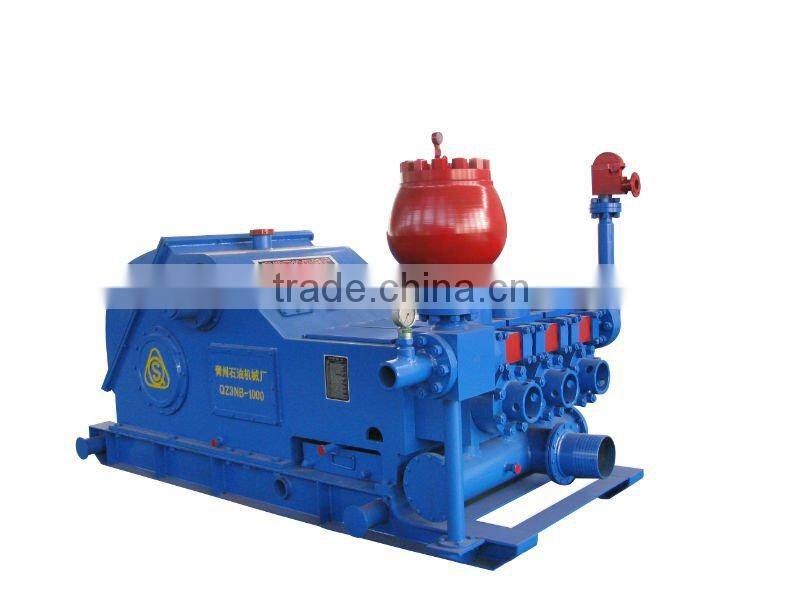

QZ3NB1000 Drilling mud pump
QZ3NB-1000 drilling mud pump is the pump that the Qingzhou petroleum machinery factory research to manufacture. Design characteristics is an optimization parameter, increased the stroke properly, lowered the speed reasonably, improved the suction capability of the pump, prolonged the service life of wearing parts The pump used for oil-field and other industrial and mining establishments; Used for the drill, well workover and transport the liquid mediaMainly installed on 20~25 rig.
The series pump produces according to SY5138 of the petroleum industry standard strictly, and carry through factory's experiment according to the standard.
QZ3NB1000 Drilling mud pump technical parameter
|
Type |
Triplex Single Acting Piston Pump |
Stroke Length: |
273 mm |
|
Rated power |
1000HP 746KW |
Suction inlet |
Φ254 mm |
|
Rated speed |
130 SPM |
Discharge outlet |
Φ102 mm |
|
Gear ratio |
3.483
|
Weights |
17600 Kg |
