Specifications

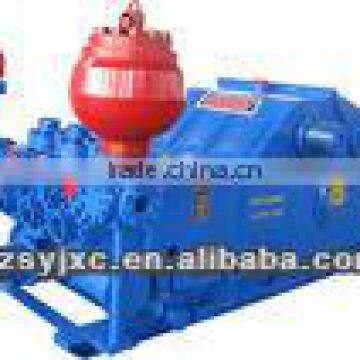

The series are produced and experimented according to SY5138 of the petroleum industry standard strictly. SL3NB—1300 Drilling mud pump
SL3NB1300 Drilling mud pump is Triplex single action piston pump, the design characteristics is an optimization parameter, it can increase the stroke properly, lower the speed reasonably, improve the suction capability of the pump, prolong the service life of wearing parts The pump is used for oil-field and other industrial and mining establishments and for the drill, well workover and transporting the liquid media and mainly installed on 25-45 rig.
SL3NB—1300 Drilling mud pump technical parameter
|
Type |
Triplex Single Acting Piston Pump |
Stroke Length: |
305 mm |
|
Rated power |
1300HP (956KW) |
Suction inlet |
Φ300 mm |
|
Rated speed |
120 SPM |
Discharge outlet |
Φ102 mm |
|
Gear ratio |
4.194
|
Weights |
20800 Kg |
|
Pump Speed (SPM) |
Liner Size (mm) |
||||||||
130 |
140 |
150 |
160 |
170 |
180 |
||||
Theoretical Displacement (L/s) | |||||||||
120 |
24.27 |
28.16 |
32.52 |
36.18 |
41.52 |
46.54 |
|||
100 |
20.23 |
23.46 |
27.1 |
30.15 |
34.6 |
38.78 |
|||
90 |
18.21 |
21.12 |
24.39 |
27.13 |
31.14 |
34.90 |
|||
|
MPa Pressure Rating |
34.3 |
30.5 |
26.6 |
23.4 |
20.7 |
18.5 |
|||
Qingzhou Petroleum Machinery Factory Co., Ltd. wishes us progress hand in hand and creates a brilliant future.
