Specifications
1.API slurry pump2.Emsco mud pump
3.Mud pump with ISO9001:2008
4.Precise designed slurry pump
5.supreme quality mud pump
1.API triplex slurry pump
2.Emsco mud pump
3.Mud pump with ISO9001:2008
4.Precise designed mud pump
5.supreme quality mud pump

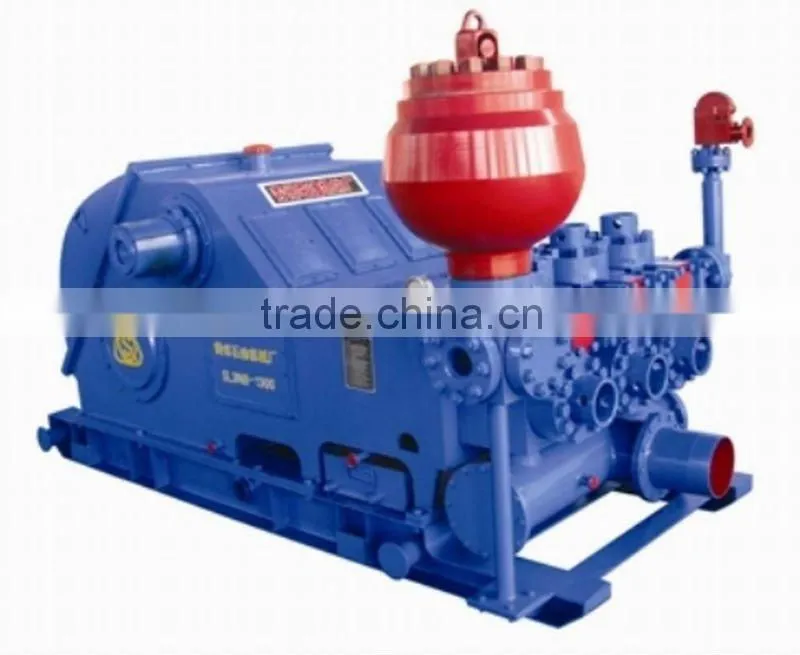

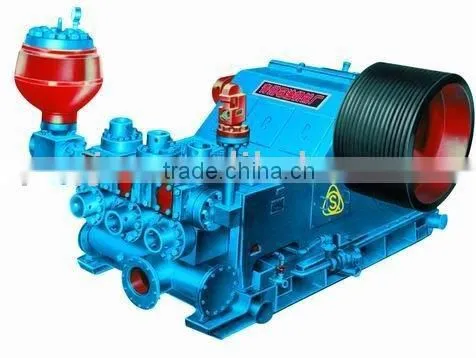

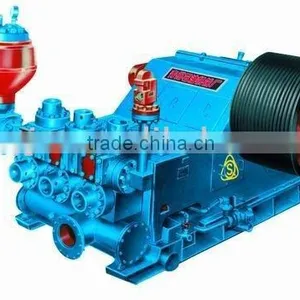

SL3NB—1600 Drilling mud pump
SL3NB—1600 Drilling mud pump is Triplex single action piston pump, Design characteristics is an optimization
parameter, increased the stroke properly, lowered the speed reasonably, improved the suction
capability of the pump, prolonged the service life of wearing parts The pump used for oil-field and other industrial and mining establishments, Used for the drill, well workover and transport
the liquid media,Mainly installed on 45-90 rig.
The series pump produces according to SY5138 of the petroleum industry standard strictly, and
carry through factory's experiment according to the standard
SL3NB—1600 Drilling mud pump technical parameter
Type |
Triplex Single Acting Piston Pump |
Stroke Length: |
305 mm |
Rated power |
1600HP (1194KW) |
Suction inlet |
Φ300 mm |
Rated speed |
120 SPM |
Discharge outlet |
Φ102 mm |
Gear ratio |
4.194
|
Weights |
27100 Kg |
Based on 90% mechanical efficiency and 100% volumetric efficiency.
|
Pump Speed (SPM) |
Liner Size (mm) |
|||||
140 |
150 |
160 |
170 |
180 |
190 |
|
Theoretical Displacement (L/s) | ||||||
120 |
28.16 |
32.52 |
36.18 |
41.52 |
46.54 |
51.86 |
100 |
23.46 |
27.1 |
30.15 |
34.6 |
38.78 |
43.22 |
90 |
21.12 |
24.39 |
27.13 |
31.14 |
34.90 |
38.90 |
|
MPa Pressure Rating |
35 |
33 |
29 |
26 |
23 |
21 |
Qingzhou Petroleum Machinery Factory Co., Ltd. wishes us
progress hand in hand and creates a brilliant future.
CONTACT: MS ANNIE
TEL: 86-15866595521
