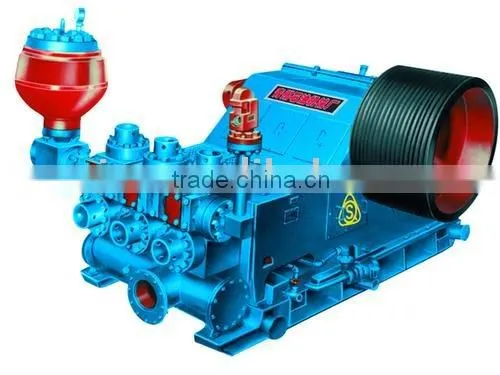

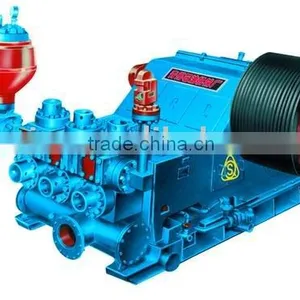

Help Center1600HP Mud Pump
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Qingzhou petroleum machinery
Model Number:
SL3NB 1600 Drilling mud pump
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Qingzhou petroleum machinery
Model Number
SL3NB 1600 Drilling mud pump
Specifications
it is Triplex single action piston pump, Design characteristics is an optimization parameter, increased the stroke properly, low
|
Type |
Triplex Single Acting Piston Pump |
Stroke Length: |
305 mm |
|
Rated power |
1600HP 1194KW |
Suction inlet |
Φ300 mm |
|
Rated speed |
120 SPM |
Discharge outlet |
Φ102 mm |
|
Gear ratio |
4.194
|
Weights |
27100 Kg |
|
Pump Speed (SPM) |
Liner Size (mm) |
||||||||
140 |
150 |
160 |
170 |
180 |
190 |
||||
Theoretical Displacement (L/s) | |||||||||
120 |
28.16 |
32.52 |
36.18 |
41.52 |
46.54 |
51.86 |
|||
100 |
23.46 |
27.1 |
30.15 |
34.6 |
38.78 |
43.22 |
|||
90 |
21.12 |
24.39 |
27.13 |
31.14 |
34.90 |
38.90 |
|||
|
MPa Pressure Rating |
35 |
33 |
29 |
26 |
23 |
21 |
|||
Based on 90% mechanical efficiency and 100% volumetric efficiency.
.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2002
Factory Size
Above 100,000 square meters
Total Employees
201 - 300 People
