Help CenterSL3NB1600 DRILLING PISTON PUMP
Related Products
Specifications
1.RATED SPEED:120SPM 2.GEAR RATIO:4.194 3. STROKE LENGTH: 305MM 4.SUCTION INLET:300 mm (dia) 5.DISCHARGE OUTLET:102 mm(dia)

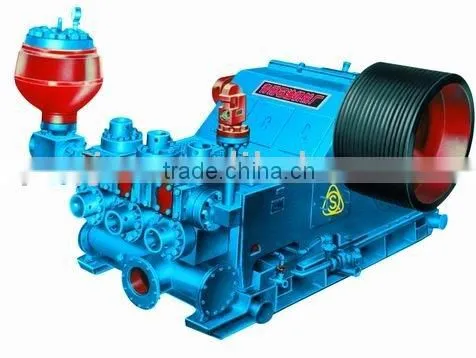

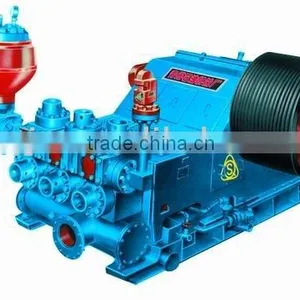

SL3NB1600 Drilling mud pump
SL3NB1600 Drilling mud pump is Triplex single action piston pump, Design characteristics is an optimization parameter, increased the stroke properly, lowered the speed reasonably, improved the suction capability of the pump, prolonged the service life of wearing parts The pump used for oil-field and other industrial and mining establishments; Used for the drill, well workover and transport the liquid mediaMainly installed on 45-90 rig.
The series pump produces according to SY5138 of the petroleum industry standard strictly, and carry through factory's experiment according to the standard.
SL3NB1600 Drilling mud pump technical parameter
|
Type |
Triplex Single Acting Piston Pump |
Stroke Length: |
305 mm |
|
Rated power |
1600HP 1194KW |
Suction inlet |
Φ300 mm |
|
Rated speed |
120 SPM |
Discharge outlet |
Φ102 mm |
|
Gear ratio |
4.194
|
Weights |
27100 Kg |
|
Pump Speed (SPM) |
Liner Size (mm) |
||||||||
140 |
150 |
160 |
170 |
180 |
190 |
||||
Theoretical Displacement (L/s) | |||||||||
120 |
28.16 |
32.52 |
36.18 |
41.52 |
46.54 |
51.86 |
|||
100 |
23.46 |
27.1 |
30.15 |
34.6 |
38.78 |
43.22 |
|||
90 |
21.12 |
24.39 |
27.13 |
31.14 |
34.90 |
38.90 |
|||
|
MPa Pressure Rating |
35 |
33 |
29 |
26 |
23 |
21 |
|||
Based on 90% mechanical efficiency and 100% volumetric efficiency.
