Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
qingzhou
Model Number:
QZ-9
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
qingzhou
Model Number
QZ-9
Theory
Reciprocating Pump
Structure
Piston Pump
Usage
Oil
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Specifications
1.Maximum Input: 1000HP2.Stroke Length: 229 mm
3.Maximum RPM: 130 RPM
4.Gear Ration: 4.48:1
5.Jack Shaft Speed: 582 RPM

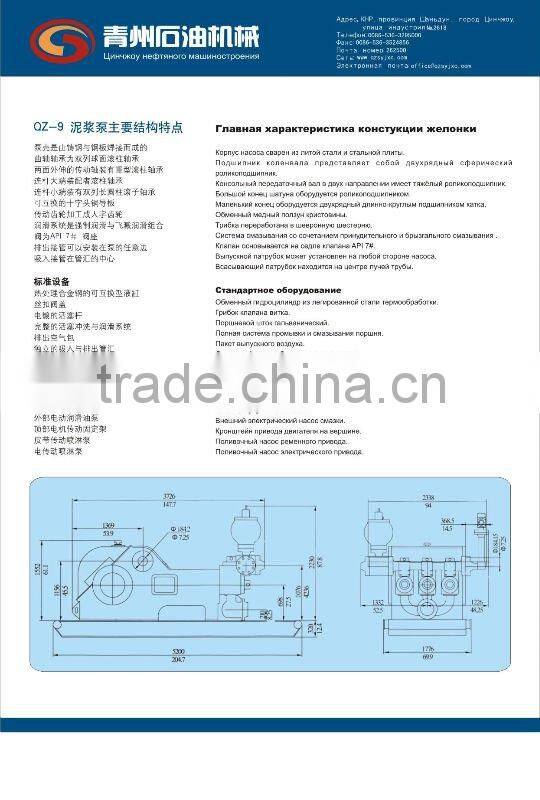

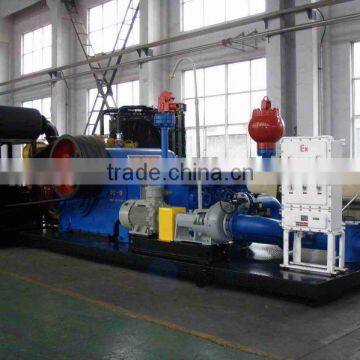

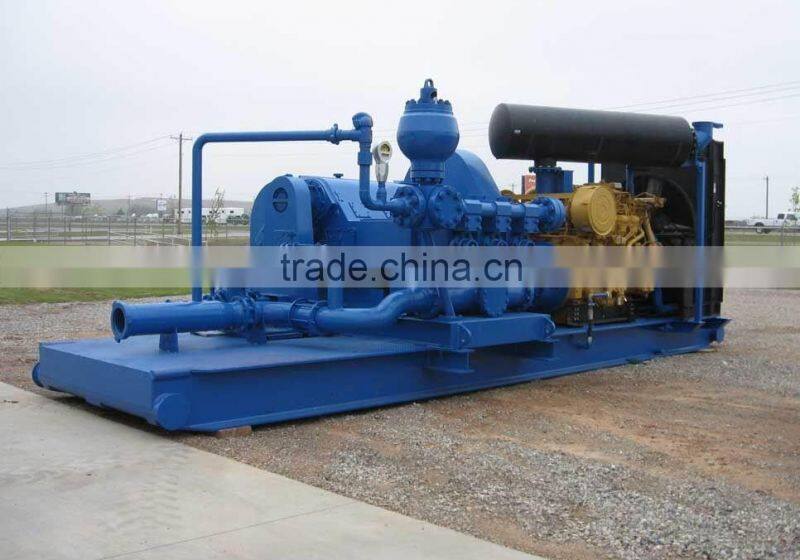

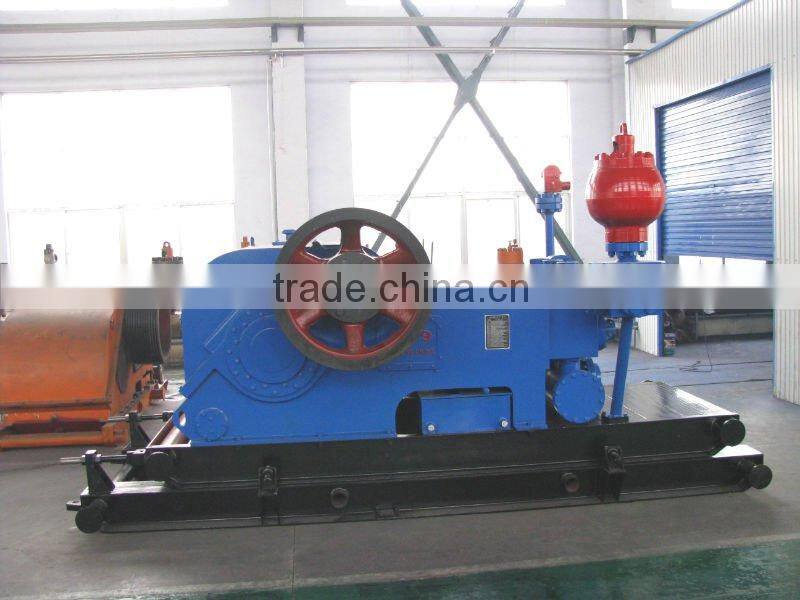

Model QZ-9 mud pump is a horizontal triplex single acting piston pump which is made by Qingzhou Petroleum Machinery Factory Co., Ltd utilizing American technology and API standards.

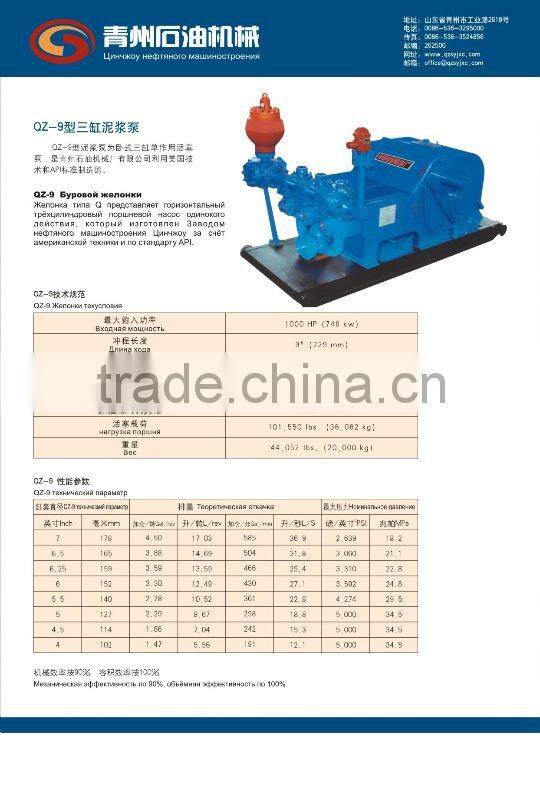

QZ-9 Specification
Maximum Input | 1000 HP (746 kw) |
Stroke Length | 9" (229 mm) |
Maximum RPM | 130 RPM |
Gear Ratio | 4.48:1 |
Jack Shaft Speed | 582 RPM |
Piston Load | 101,550 lbs. (36,062 kg) |
Weight | 44,052 lbs. (20,000 kg) |
QZ-9 Performance data
Liner Diameter | Displacement | Max Pressure | |||||
Inch | mm | Gal/rev | L/rev | Gal/min | L/S | PSI | MPa |
7 | 178 | 4.50 | 17.03 | 585 | 36.9 | 2,639 | 18.2 |
6.5 | 165 | 3.88 | 14.69 | 504 | 31.8 | 3,060 | 21.1 |
6.25 | 159 | 3.59 | 13.59 | 466 | 29.4 | 3,310 | 22.8 |
6 | 152 | 3.30 | 12.49 | 430 | 27.1 | 3,592 | 24.8 |
5.5 | 140 | 2.78 | 10.52 | 361 | 22.8 | 4,274 | 29.5 |
5 | 127 | 2.29 | 8.67 | 298 | 18.8 | 5,000 | 34.5 |
4.5 | 114 | 1.86 | 7.04 | 242 | 15.3 | 5,000 | 34.5 |
4 | 102 | 1.47 | 5.56 | 191 | 12.1 | 5,000 | 34.5 |
