Specifications

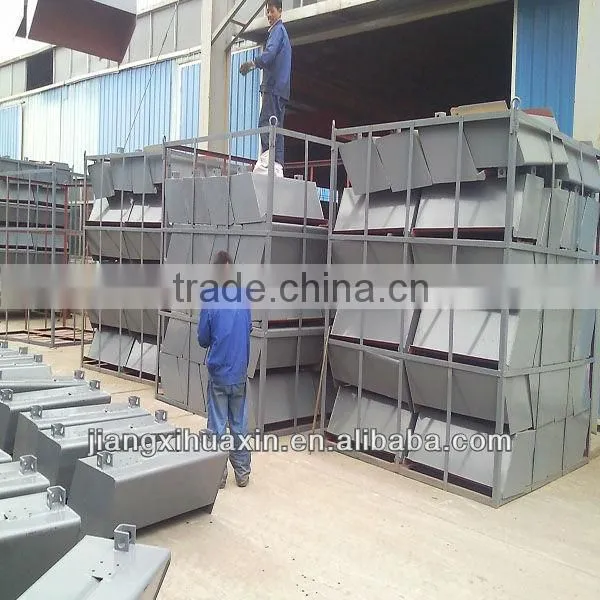

1.Carbon iron bucket2.Non leakage
3.Low maintenance and consumption
4.Operation stabality
--Product description
1.Package:Nude package
2.Convey capacity:5000T 2500T 1500T per day
3.Product experience:10 years
4.Structure:Conveyor system
5.Operation speed: (0.26m-0.3m)/s
6.Assembly inclination:0°-60°
7.Assembly: send professionals to guide
8.Price:Factory price
9.operation status: Stable operation
10.Delivery: 45 days after deposit receiving
--Product parameter
Horizontal and inclination ≤25° convey ability(table1)
Model |
Edge high
|
Rated throughput(when inclination ≤25° )m³/h |
|||
Chain speed m/s | |||||
0.193 |
0.244 |
0.308 |
0.344 |
||
SCD630 |
250 |
91 |
116 |
146 |
163 |
SCD800 |
250 |
116 |
148 |
186 |
208 |
SCD1000 |
300 |
174 |
222 |
279 |
312 |
SCD1200 |
350 |
244 |
310 |
391 |
436 |
Notice:1.Conveyor angle ≥35°, chutes equipped with baffles to prevent material return
2.If have others requires.edge high can transform.and conform to conveyor capacity.
3.When inclination more than 25 degree.For table1multiplied by the actual transmission capacity table2
When conveyor angle≥25° .the parameter follow(table2)
Edge high |
Adjustable parameter |
|||||||
≤25° |
30° |
35° |
40° |
45° |
50° |
55° |
60° |
|
200 |
1 |
0.91 |
0.83 |
0.75 |
0.69 |
0.61 |
0.54 |
0.47 |
250 |
1 |
0.93 |
0.86 |
0.80 |
0.74 |
0.69 |
0.63 |
0.57 |
300 |
1 |
0.94 |
0.89 |
0.83 |
0.79 |
0.74 |
0.69 |
0.65 |
350 |
1 |
0.95 |
0.90 |
0.86 |
0.82 |
0.78 |
0.74 |
0.70 |
--Application
