Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller With DC Brushless Fan Motor in 254x88.9mm

Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller With DC Brushless Fan Motor in 254x88.9mm photo-1
US$ 5 - 30 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Other, Metal/Aluminum die cast
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Electric Current Type DC
Mounting Free Standing
Blade Material Other, Metal/Aluminum die cast
Place of Origin Taiwan, China
Brand Name EA
Model Number EADM254AN
Voltage 12/24/48 V
Power 5-64 W
Air Volume 980 CFM
Speed 1800-3000 RPM
Certification CE, CSA, ROHS, UL, Other, CE, CSA, ROHS, UL, TUV
After-sales Service Provided Engineers available to service machinery overseas

Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm

Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mmTaiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mmTaiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mmTaiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm



______________________________________________________________________________

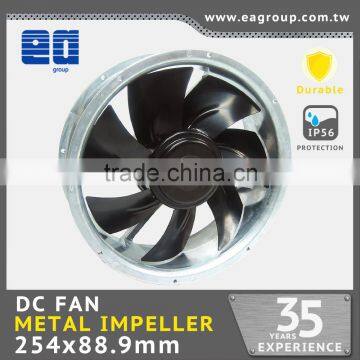

Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm







DC

METAL BLADE/IMPELLER FAN

High Efficiency/Air Flow

IP55 WATER-PROOF/DUST-PROOF

A really SOLID, LONG LIFE and DURABLE COOLING FAN

HIGH PERFORMANCE!!!

Big size

254x88.9mm/10x3.5inch

12v/24v/48v



Max.980 CFM



Electronic Associates (Taiwan) Ltd. is a professional fan manufacturer based in Taiwan and we have been selling fans worldwide since 1990. We are dedicated to fan design, development and manufacturing. Through the hard work over the years, we have earned a good reputation in this field. Our products are approved by various international safety organizations and we are a ISO certificate company. With our advanced equipment and excellent engineers, we are able to offer the best solutions to our customers.








Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm











 Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm

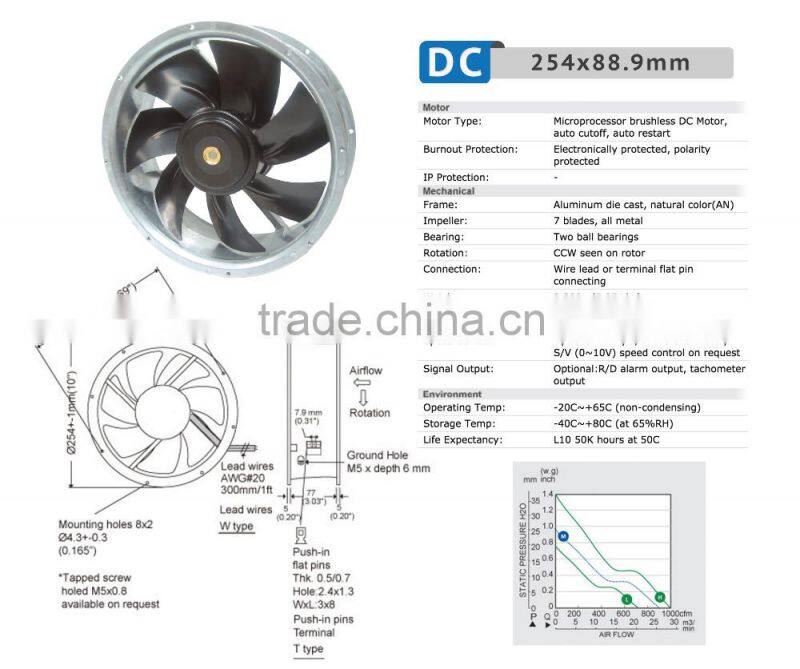

  Rated
Volt
Voltage
Range

Input
Power

Rated
Current
Ref.
Speed
Max.Airflow Max.Static Pressure Noise
Level
PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
EAMD254AN-12SH**7 12 9~13 64.8 5.4 2900 950 26.9 1.1 27.94 72
EAMD254AN-12HH**7 12 9~13 50.4 4.2 2500 820 23.2 0.95 24.13 68
EAMD254AN-12H**7 12 9~13 23 1.9 2000 660 18.7 0.76 19.3 61
EAMD254AN-12M**7 12 9~14 13.2 1.1 1600 530 15 0.61 15.49 50
EAMD254AN-12L**7 12 10~16 5.5 0.45 1100 360 10.2 0.42 10.67 40
EAMD254AN-24SH**7 24 16~27 63.6 2.65 3000 980 27.8 1.13 28.7 72
EAMD254AN-24HH**7 24 16~27 50.4 2.1 2500 820 23.2 0.95 24.13 68
EAMD254AN-24H**7 24 16~27 24 0.97 2000 660 18.7 0.76 19.3 61
EAMD254AN-24M**7 24 16~27.6 13 0.52 1600 530 15 0.61 15.49 50
EAMD254AN-24L**7 24 18~30 5 0.2 1100 360 10.2 0.42 10.67 40
EAMD254AN-48SH**7 48 24~53 62.4 1.3 3000 980 27.8 1.13 28.7 72
EAMD254AN-48HH**7 48 24~53 49.4 1.03 2500 820 23.2 0.95 24.13 68
EAMD254AN-48H**7 48 24~53 23.5 0.48 2000 660 18.7 0.76 19.3 61
EAMD254AN-48M**7 48 28~58 14.5 0.3 1600 530 15 0.61 15.49 50
EAMD254AN-48L**7 48 28~63 5.8 0.12 1100 360 10.2 0.42 10.67 40











 Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm













Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm



 Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm











Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm





Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm













Taiwan UL CE TUV ROHS Certified IP55 High Airflow DC Cooling Fan DC Metal Impeller with DC Brushless Fan Motor in 254x88.9mm
