Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > YANMAR AW82G COMBINE HARVESTER

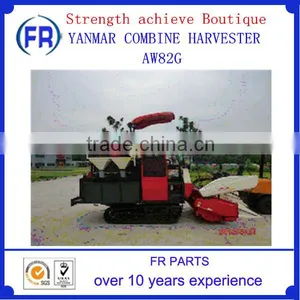

YANMAR AW82G COMBINE HARVESTER
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Grain harvester
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MINI RICE REAPER 4GL150NegotiableMOQ: 50 Pieces -
YANMAR HARVESTER TRUST WHEEL 1E9061-73000NegotiableMOQ: 50 Pieces
-
YANMAR HARVESTER DRIVING WHEEL 1E8941-73350NegotiableMOQ: 50 Pieces
-
YANMAR HARVESTER GUIDE WHEEL 1E9061-73060NegotiableMOQ: 50 Pieces
-
YANMAR HARVESTER FRONT RALL 1E961-73500NegotiableMOQ: 50 Pieces
Condition
New
Application
Grain harvester
Type
Combine Harvester
Drive Type
Other
Usage
Grain Harvester
Place of Origin
Japan
Brand Name
YANMAR
Model Number
AW82G
Dimension(L*W*H)
5040*2285*2765
Weight
2935kgs
Certificate
EEC
After-sales Service Provided
Overseas service center available
Specifications
YANMAR AW82G HARVEST COMBINE1.HIGH QUALITY
2.SELL WELL
3.DIFFERENT MODELS
YANMAY RICE COMBINE HARVESTER AW82G
MACHINE MODEL : AW82G
| MODEL | AW82G | ||||
| Dimension | Overall length(mm) | 5040 | |||
| Overall width(mm) | 2285 | ||||
| Overall height(mm) | 2765 | ||||
| Weight (kg) | 2935 | ||||
| Engine | Model | 4TNV98T | |||
| Pattern | Vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesle | ||||
| rated output/speed(ps[kw]/rpm) | 82[60.3]/2400 | ||||
| Burnt oil | 0#diesel | ||||
| Fuel tank capacity(L) | 60 | ||||
| Storage battery(V.Ah) | 12.52 | ||||
| Travel unit | track width*contact length(mm) | 425×1660 | |||
| transmission mode | Hytrostatic stepless change[HST] | ||||
| Speed grade | Stepless vice-speed 3files | ||||
| Running speed | Advance (m/s) | Low speed:0~0.95 cruising speed:0~1.55 high speed:0~1.91 | |||
| turning way | Brake change | ||||
| Harvest unit | Fu wo method | Fu wo machine | |||
| Fu wo machine | rotation diameter*width(mm) | 900×1920 | |||
| transmission mode | Constant speed | ||||
| up and down adjustment | hytraulic | ||||
| Harvesting width(mm) | 2060 | ||||
| cutter width(mm) | 1905 | ||||
| Harvest height(mm) | More than 40[tip cutter] | ||||
| Threshing unit | Threshing system | Axial flow type threshing gear | |||
| Threshing cylinder | Diameter*width(mm) | 640×1850 | |||
| Concavity net area(4)(m2) | 1.621 | ||||
| cereal discharge unit | cereal collection tank | capacity(L) | 1030 | ||
| cereal ejection port number(piece) | 2 | ||||
| Ejection method | In bag | ||||
| Suitable crops | Rice wheat rape | ||||
| Operational efficiency (a unit of area/ hour) | 8.4 | ||||
TRADE TERMS:
| Price terms | FOB office | ||||
| Delivery terms |
time: after 15 days ways: 1.Ship by Express.(DHL.TNT.UPS.FEDEX) |
||||
| Payment Item | T/T ,Western Union, L/C, B/L | ||||
| Port of Shipment | Lianyungang, China | ||||
| Packing | close package to make shipment safer and suitable for import and export. | ||||
| NOTE: amend accordng to your demand! | |||||
Our Products
We are YANCHENG FOREIGN MACHINERY PARTS CO., LTD.
We specialized in YANMAR spare parts, YANMAR machine ( YANAMR harvester, YANMAR transplanter,
YANMAR tractor, YANMAR seeding planter).
PARTS LIST:
| No | Part No. | Parts Name |
| 1 | 1E6B30-13050 | TINE |
| 2 | 1E6B30-38280 | BAR TEETH |
| 3 | 1E6B30-38300 | BAR TEETH |
| 4 | 1E6B30-17010 | CUT BLADE |
| 5 | 1E6B30-42402 | SWING ASSY |
| 6 | 1E6B30-43151 | CAN CAVE |
| 7 | 1E6B30-04020 | AIR FILTER |
| 8 | 1E8560-66370 | HST FILTER |
| 9 | 129150-35153 | OIL FILTER |
| 10 | 41650-502320 | FULE FILTER |
| 11 | 129065-55760 | CASE |
| 12 | 1E6B30-65050 | WIRE REAPING CLUTCH |
| 13 | 1E8800-63851 | WIRE STEERING |
| 14 | 1E6B30-02050 | WIRE CONTROL OIL |
| 15 | 1E9060-73031 | BOLT |
| 16 | 1E8559-7353 | ROLLAR SHAFT |
| 17 | 1E6B30-22410 | SHAFT |
| 18 | 1E961-73000 | ROLLAR |
| 19 | 1E9061-73060 | IDLER |
| 20 | 1E6B30-73500 | GUIDE FRONT |
| 21 | 1E6B30-73510 | GUIDE REAR |
| 22 | 1E6B30-45000 | SCREW SHAFT |
| 23 | 1E6B30-45400 | SCREW SHAFT |
| 24 | 1E6B31-45400 | SCREW SHAFT |
| 25 | 1E6B30-46400 | SCREW SHAFT |
| 26 | 1E6B30-46500 | SCREW SHAFT |
| 27 | 1E631-92800 | SCREW SHAFT |
| 28 | 1E6B31-92900 | SCREW SHAFT |
MACHINE MODEL:
| MACHINE | MODEL |
| tractor | YT704 |
| harvester | AW70,AW70G,AW82,AW82G |
| rice transplranter | AP4, AP6, VP4E,VP6E,VP6D,VP6G,VP7D,VP9D |
| seeding planter | YBZ600, SR-K800CN |
We sell many kinds of agricultural machines, machinery parts, engine parts, combine parts,
tractor parts and so on. Our products brands include KUBOTA, YANMAR, Cahngfa, SNH, YTO,
Dong Feng, and so on.This year we have developed many new products including mini combine
harvester, mini rice, reaper, mini combine parts, balers, tubers excavators, rotary tillers and other
machines with different functions.
