Help CenterGalvanized Steel Door Frame Cold Roll Forming Machine
Related Products
-
688 Steel Floor Deck Roll Forming Machine/ Decking Floor Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set -
Steel Floor Deck Panels Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Metal Floor Decking Sheet Roll Forming Machine/ Floor Deck Plate Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
Metal 686 Floor Deck Roll Forming Machine for Floor DeckUS$ 10,000 - 80,000MOQ: 1 Set
-
Floor Decking Roll Forming Machine/ Deck Floor Roll Forming MachineUS$ 10,000 - 80,000MOQ: 1 Set
Specifications
1.PLC control system; 2.rolls made of high alloy steel; 3.felxible and simple operation; 4.FEA analysis; 5.Software design.Specifications:
1.Simple operation with PLC control system;
2.Germany brand COPRA software designed and FEA anylazed rollers;
3.Raw materials of rollers: high hardness alloy steel;
4.With a structure that whose width can be adjusted continiously;
Advantage:
1. Forming roller is designed by the COPRA software from Data M Germany and made by the Chrome-plated high hardness alloy steel.
2. Newly designed PLC control system with big touch screen made the operation more convenient.
3. It can produce strong panels with beautiful appearance which is extensively used in wall construction or outdoor decoration.
4.It adopts new station to increase the firmness of the machine, gearbox transimission ensure it working mare stable, after-cutting pattern gaurantees quality of the cutting position of product very smooth
5.Such steels are widely used in door frame.
Introduction:

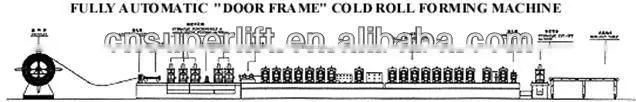

This door frame roll forming machine consists of uncoiler, hydraulic punching hole & angle, roll forming machine, straightener, auto cutting machine, computer control system, and products run out table.
Main Technical Specification:
Steel thickness: 0.6-1.8mm
Forming speed: 3-6m/min
Roller stands: 18 stand
Roller material: 45# steel, coated with chrome
Main motor power: 11kw
Hydraulic cutting power: 4kw
Hydraulic pressure: 10Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Material of cutting: Cr12
Control system: PLC with touch screen
Machine net weight: 8T
Some door frames that can be made:
