Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > HIGH QUALITY OF KUBOTA PRO688Q-G COMBINE HARVESTER

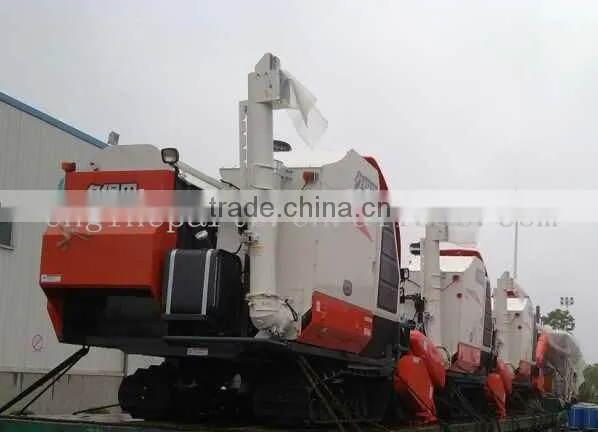

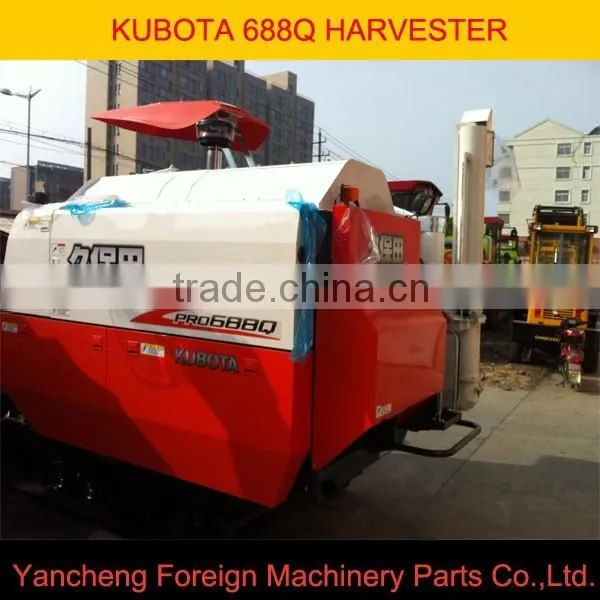

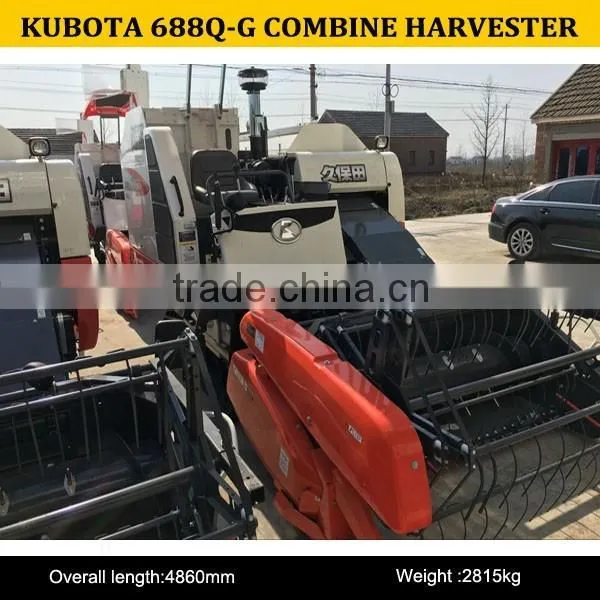

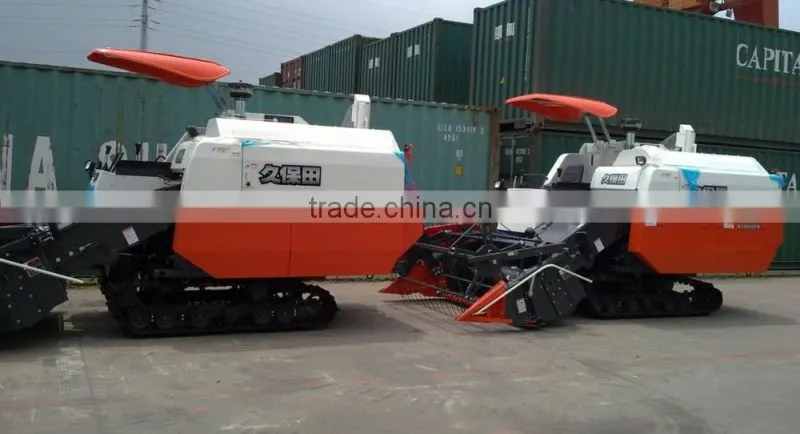

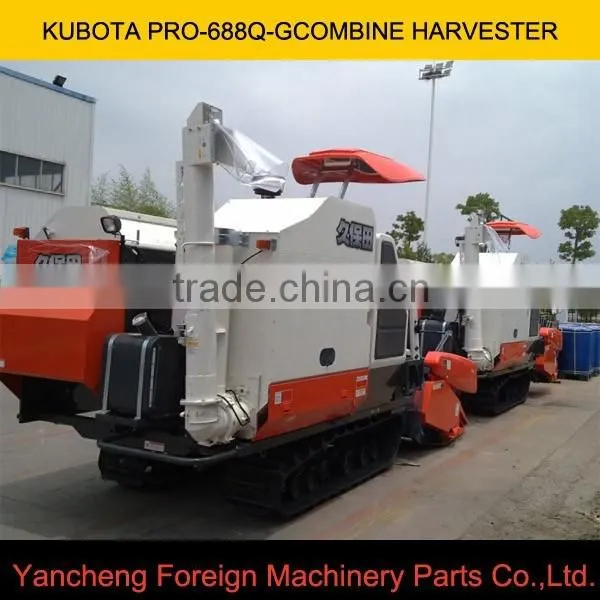

HIGH QUALITY OF KUBOTA PRO688Q-G COMBINE HARVESTER
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Rice
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
chian main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
THE HAND-HELD RICE TRANSPLANTER OF 6 ROW KUBOTA 2ZS-4(SPW-68C) WALKING TRANSPLANTERNegotiableMOQ: 1 Piece -
KUBOTA TRACTOR L3208SP/L3608SP/L4508NegotiableMOQ: 1 Piece
-
HIGH QUALITY OF KUBOTA TRACTOR L3208SPNegotiableMOQ: 1 Piece
-
KUBOTA NSPU-88C25 TRANSPLANTER FOR SALENegotiableMOQ: 1 Piece
-
BEST PRICE OF KUBOTA TRACTOR L4708SP FOR SALENegotiableMOQ: 1 Piece
Condition
New
Application
Rice
Type
Combine Harvester
Drive Type
Gear Drive
Usage
Other, rice and wheat
Brand Name
KUBOTA
Model Number
688Q-G
Dimension(L*W*H)
4860*2295*2765
HIGH QUALITY OF KUBOTA PRO688Q-G COMBINE HARVESTER
| SPECIFICATION OF KUBOTA PRO688Q AND PRO688Q-G | ||||
| MODEL | PRO688Q | PRO688Q-G | ||
| Size | Overall length(mm) | 4860 | ||
| Overall width(mm) | 2295 | |||
| Overall height(mm) | 2765 | |||
| Weight (kg) | 2815 | |||
| Engine | Model | V2403-M-DI-TE2-CKMS3 | V2403-M-DI-TE2-CKMS6 | |
| Type | vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesel engine | |||
| Total displacement (L[cc]) | 2.434[2434] | |||
| Rated output/rpm (ps[kw]/rpm) | 68[50]/2700 | |||
| Fuel | 0 # diesel oil | |||
| Fuel tank capacity(L) | 60 | |||
| Starting method | starter motor | |||
| Battery(V.Ah) | 12·52 | |||
| Travel unit | Track | Ground length × width (mm) | 400×1680 | 450×1680 |
| Centre distance(mm) | 1150 | |||
| Average ground pressure(kpa[kgf]/cm2) | 20.3 (0.21) | 18.1 (0.19) | ||
| Minimum ground clearance(mm) | 275 | |||
| Transmission mode | hytrostatic CVT [HST] | |||
| Speed | no class vice-speed 3 files | |||
| Running speed (m/s) | low speed:0~0.97; cruising speed:0~1.37; hign speed:0~1.85 | |||
| Harvest unit | Fu Wo method | Wo cal control | ||
| Wo cal control | Rotating diameter×width(mm) | 900×1828 | ||
| Transmission mode | Isokinetic | |||
| Way up and down adjustment | Hytrostatic | |||
| Harvest width (front-end sub-interval of the grass) (mm) | 2000 | |||
| Cutter width(mm) | 1905 | |||
| Harvest height (down) range (mm) | 40 more cutter tip | |||
| Lodging adapation (degree) | Shun-cut:< 85°, Against the cut:< 70° | |||
| Threshing unit | Threshing system | axial threshing gear | ||
| Threshing cylinder | Threshing teeth type | bow teeth | ||
| Diameter × width(mm) | Φ620 × 1790 | |||
| Rotational speed(rpm) | 560 | |||
| Second transmission mode | srew auger | |||
| Screening method | shaker winnowing (3 air separation) | |||
| Concave network area (4) | 1.621 | |||
| Uereal discharge unit | Vally box set | Capacity (L) | 420 | 1000 |
| Tanigushi row number (a) | 2 | 1 | ||
| Discharge mode | manual | hydraulic pressure | ||
| Warning lights and equipments | Vertical transmission filler and then plug screw rob cereal | |||
| Sets valley box filled with | ||||
| Water temprature | ||||
| Battery charging | ||||
| Engine oil pressure | ||||
| Suitable crops | rice / wheat/rape | |||
| Operational efficiency (A unit of area/ hour) | 3-8 (with the crop varieties and conditions) | |||
Company profile
Yancheng Foreign Machinery Parts Co., Ltd.
FR parts over 10 years experience, here we have an excllent working team and the high

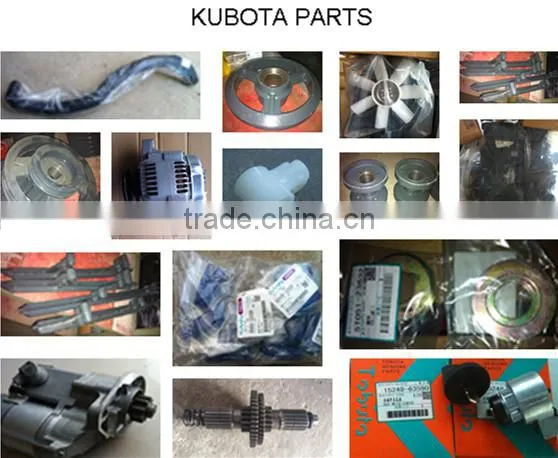

quality service. Except this farm machine, we also have sales a lot about accessories of the machines.
TRADE TERMS:
| Price terms | FOB office | ||||
| Delivery terms |
time: after 15 days ways: 1.Ship by Express.(DHL.TNT.UPS.FEDEX) |
||||
| Payment Item | T/T ,Western Union, L/C, B/L | ||||
| Port of Shipment | Shanghai, China | ||||
| Packing | close package to make shipment safer and suitable for import and export. | ||||
| NOTE: amend accordng to your demand! | |||||
