Home > Transportation > Forklifts & Parts > Forklift > 2000kg CPD20S Three Wheel AC Electric Forklift Truck

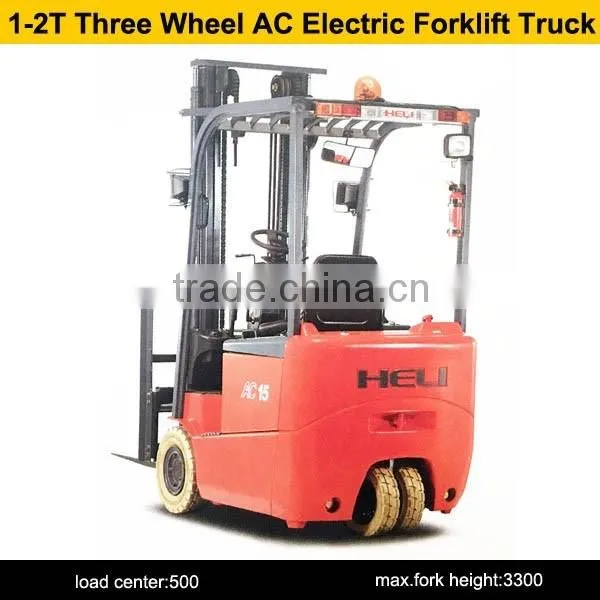

2000kg CPD20S Three Wheel AC Electric Forklift Truck

2000kg CPD20S Three Wheel AC Electric Forklift Truck thumbnail-1
2000kg CPD20S Three Wheel AC Electric Forklift Truck photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Yancheng Foreign Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB LIAN YUNGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HELI
Model Number CPCD20s
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 2000kg
Fork Length 45mm
Fork Width 100mm
Overall Dimensions 2016*1124*1980
Certification ISO9001:2000
After-sales Service Provided No overseas service provided

Hot selling 1-2t  CPD20S three wheel AC electric forklift truck

Company profile

                                    Yancheng Foreign Machinery Parts Co., Ltd.

Yancheng Foreign Machinery Parts Co., Ltd. Mainly produces LIER - G series, D series, K

series, C series, such as four series, hundreds of differentiated products of wheel loader,

capable of producing ten thousand sets of production capacity and in the industry took the

lead through the ISO9001:2000 international quality management system certification and

the national construction machinery quality supervision and inspection center for review,

made of special equipment manufacturing license and received including cross-country

soft double car ", a number of utility model patent.  always adhere to the "solidarity, forge

ahead, realistic and innovative" spirit of enterprise, strict quality control, strive for each

product into a boutique.  and continuously forge ahead, to "create the first brand of small

loader" as the goal. Excellent product performance, good after-sales service, reasonable

product price for the company to win the broad market, Products are exported to Russia,

Brazil, Argentina, Australia, Iran, Singapore, New Zealand, and many other countries.



Our company's advantages:



*Hot working atmosphere



*Strong team spirit



*Pay attention to training



*Professional knowledge



*The advanced enterprise idea



*To participate the exhibition



*High qulity products



*Best after-sale service



*Rich products categories



*Own factory, reliable partner to prepare ordwithin shortest time.



Product Description

2000kg CPD20S three wheel AC electric forklift truck



Model   CPD10S-CQ1
CPD10S-CQ2		 CPD15S-CQ1
CPD15S-CQ2		 CPD18S-FQ1
CPD18S-FQ2		 CPD20S-CQ1
CPD20S-CQ2
Load capacity kg 1000 1500 1750 2000
Load center mm 500 500 500 500
Standard mast lifting height mm 3300 3300 3300 3300
Free hoisting height mm 122 125 125 135
Overall height (upper frame protection) mm 2080 2080 1980 1980
Full length (without pallet fork) mm 1779 1783 1895 2016
Full width (before/after) mm 1070/1060 1070/1060 1124/1110 1124/1110
Wheelbase mm 1250 1250 1350 1455
The minimum ground clearance (the door) mm 90 90 90 90
The minimum turning radius (outer) mm 1445 1445 1540 1660
Least square channel width
(1200 * 1200 mm tray, 20 mm gap)		 mm 3300 3300 3410 3530
Pallet fork length * width * thickness mm 32*100*770 35*100*920 35*100*920 45*100*920
The door frame Angle(before/after) deg. 5/7 5/7 5/7 5/7
Tire type(before/after)   Solid tire Solid tire Solid tire Solid tire
Maximum speed (full/empty) km/h 14.2/15.4 14.2/15.4 14.2/15.4 14/15.3
Maximum gradeability (full/empty) % 27/35 24/35 22/32 20/30
Hoisting speed (full/empty) mm/s 320/440 300/440 290/480 270/480
Battery capacity V/Ah 48/420 48/420 48/480 48/600
Control mode (driving, pump)   Ac/dc control Ac/dc control Ac/dc control Ac/dc control
The total battery (reservation) kg 2900 3160 3340 3540

 2000kg CPD20S three wheel AC electric forklift truck

  TRADE TERMS

Payment Item T/T for30% advance payment and 70% balance payment before shipment
Port of shipment  Lian yungang port ,China
Delivery time  7 days from the date of signing the contract and  receiving advance payment.
Others  Some terms may be amended according to your demand!
