HELI CQD16 AC Electric Reach Truck (sit-down Type)

HELI CQD16 AC Electric Reach Truck (sit-down Type) thumbnail-1
HELI CQD16 AC Electric Reach Truck (sit-down Type) thumbnail-2
HELI CQD16 AC Electric Reach Truck (sit-down Type) thumbnail-3
HELI CQD16 AC Electric Reach Truck (sit-down Type) photo-1
HELI CQD16 AC Electric Reach Truck (sit-down Type) photo-2
HELI CQD16 AC Electric Reach Truck (sit-down Type) photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
HELI
Contact Supplier Request Quote Chat Now
Yancheng Foreign Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name HELI
Model Number CQD16
Type Other, electric reach truck
Power Souce AC Motor
Rated Loading Capacity 1600kg
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 1800*1148*2210
Certification ISO9001:2000
After-sales Service Provided No overseas service provided

 HELI CQD16 AC electric reach truck (sit-down type)

Company profile

                                    Yancheng Foreign Machinery Parts Co., Ltd.

Yancheng Foreign Machinery Parts Co., Ltd. Mainly produces LIER - G series, D series, K

series, C series, such as four series, hundreds of differentiated products of wheel loader,

capable of producing ten thousand sets of production capacity and in the industry took the

lead through the ISO9001:2000 international quality management system certification and

the national construction machinery quality supervision and inspection center for review,

made of special equipment manufacturing license and received including cross-country

soft double car ", a number of utility model patent.  always adhere to the "solidarity, forge

ahead, realistic and innovative" spirit of enterprise, strict quality control, strive for each

product into a boutique.  and continuously forge ahead, to "create the first brand of small

loader" as the goal. Excellent product performance, good after-sales service, reasonable

product price for the company to win the broad market, Products are exported to Russia,

Brazil, Argentina, Australia, Iran, Singapore, New Zealand, and many other countries.



Our company's advantages:

*Hot working atmosphere



*Strong team spirit



*Pay attention to training



*Professional knowledge



*The advanced enterprise idea



*To participate the exhibition



*High qulity products



*Best after-sale service



*Rich products categories



*Own factory, reliable partner to prepare ordwithin shortest time.

Product Description

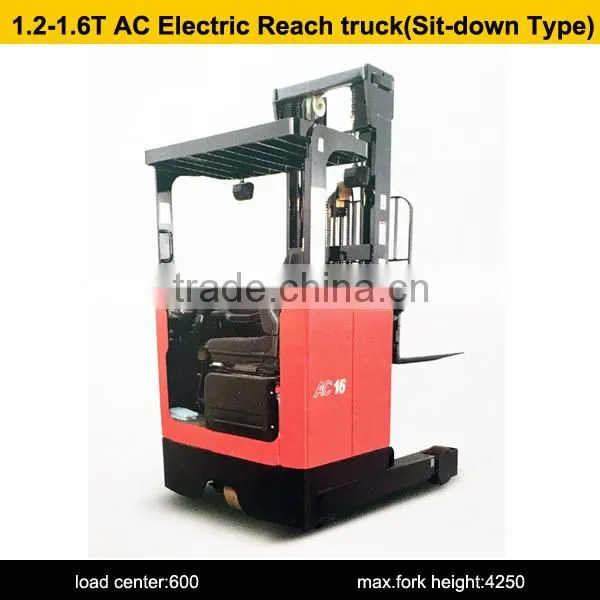

G Series 1.2-1.6T Electric Reach Trucks - Sit-down Type
Model CQD16 CQD20
Configuration No. GA2S GA2S
Operator type Sit-down type Sit-down type
Load capacity kg 1600 2000
Load center mm 600 600
Standard mast lifting height mm 4250 4250
Free hoisting height mm 1370 1370
Overall height (upper frame protection) mm 2210 2210
Full length (without pallet fork) mm 1800 1903
Full width (before/after) mm 1148/1120 1266/1240
Wheelbase mm 1425 1500
Forward distance mm 500 560
The minimum turning radius
(wheelbase midpoint)		 mm 95 95
The minimum turning radius mm 1700 1780
Least square channel width
(1200 * 1200 mm tray, 20 mm gap)		 mm 2850 2870
Pallet fork length * width * thickness mm 1070*100*45 1200*120*45
The door frame Angle(before/after) deg. 2/4 2/4
Maximum speed (full/empty) km/h 10/11 10/11
Maximum gradeability (full/empty) % 10 10
Hoisting speed (full/empty) mm/s 330/440 320/440
Tire type Polyurethane tire Polyurethane tire
Battery (voltage/capacity) V/Ah 48/500 48/500
The total battery (reservation) kg 3420 3570







HELI CQD16 AC electric reach truck (sit-down type)

HELI CQD16 AC electric reach truck (sit-down type)

Loading


 HELI CQD16 AC electric reach truck (sit-down type)

HELI CQD16 AC electric reach truck (sit-down type)

TRADE TERMS

Price Term                                  (FOB Lianyungang)

Delivery Time

 15-25 days from the date of signing the contract and  receiving  advance payment.
Payment Item T/T for 30% advance payment and 70% balance payment before shipment
Terms of Shipment FOB
Port of Shipment Lianyungang Port, China
Date of Shipment To be discussed later
