Condition New
Place of Origin Jiangsu, China
Brand Name HELI
Model Number CPCD50
Power Souce Diesel Engine
Rated Loading Capacity 5000KG
Fork Length 1220mm
Fork Width 150MM

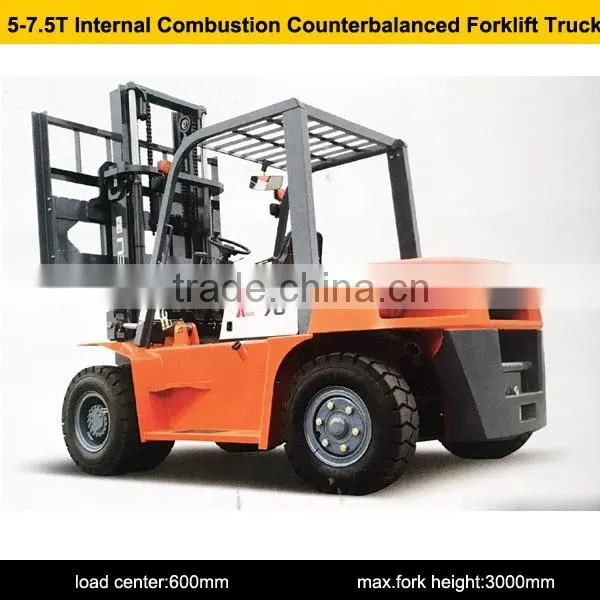

HELI CPCD50 forklift truck K series internal combustion truck

Model CPCD50 CPCD60 CPCD70 CPCD50 CPCD60 CPCD70 CPCD75
power type  Diesel
rated capacity kg 5000 6000 7000 7500 6000 7000 7500
load center  kg 600 600 600 600 600 600 600
mast height (with backrest) mm 4420 4420 4420 4420 4420 4420 4420
Max. lifting height mm 3000 3000 3000 3000 3000 3000 3000
free lifting height mm 200 200 200 200 200 200 267
overall height (overhead guard) mm 2450 2450 2450 2450 2450 2450 2450
overall length(with fork) mm 4660 4735 4800 4660 4735 4800 5175
over width  mm 1995 1995 1995 1995 1995 1995 1995
min ground clearance(at the mast ) mm 200 200 200 200 200 200 200
min turning radius(exterior) mm 3250 3300 3370 3250 3300 3370 3400
min .right angle stacking aisle width mm 2960 3000 3040 2960 300 3040 2960
fork size (LXWXH) mm 1220*150*55 1220*150*60 1220*150*65 1220*150*55 1220*150*60 1220*150*65 1370*150*70
max.travelling speed (loaded/unloaded) km/h 28/33 28/33 28/33 26/30 26/30 26/30 24/29
max.traction force(loaded/unloaded) KN 53 53 52 63 63 62 62
max.gradeability(loaded/unloaded) % 30/19 27/19 25/19 38/19 35/19 32/19 25/19
tyre type  pnumatictyre4/2
engine model chaochai6102 xichaiCA6110
rated power kw/rpm 80.9/2500 80.9/2500 80.9/2500 83/2000 83/2000 83/2000 83/2000
rated torque Nm/rpm 450/1400-500 450/1400-1500 450/1400-1500 450/1400-1500 450/1400-1500 450/1400-1500 450/1400-1500
total weight (oil included) kg 7980 8640 9248 7980 8640 9248 9800



HELI CPCD50 forklift truck K series internal combustion truck



1.Have rich experience in the machinery parts.

2.10 years research and testing ,It have formed mature and stable system.
3.exporrting more than ten years .

4. Able to produce according your specification .

5. Standard packing or according your specification requested

Company

Manufacture (more than 10 years' experienced factory) exporter







Main export markers

• Easter Europe

• Western Europe

• North America

• Mid East Africa

• Central/South/America

• Asia

• Australia

Long-term cooperated

Customer: Italy, Germany, Spain, Australia etc.





Company advantages

•  Guarantee/warranty

•  Product performance

•  Prompt delivery

•  Quality approval

•  Service

•  Small order accepted



TRADE TERMS



Price Term                                          (FOB Lianyungang)

Delivery Time

 15-25 days from the date of signing the contract and  receiving  advance payment.
Payment Item T/T for 30% advance payment and 70% balance payment before shipment
Terms of Shipment FOB
Port of Shipment Lianyungang Port, China
Date of Shipment To be discussed later
