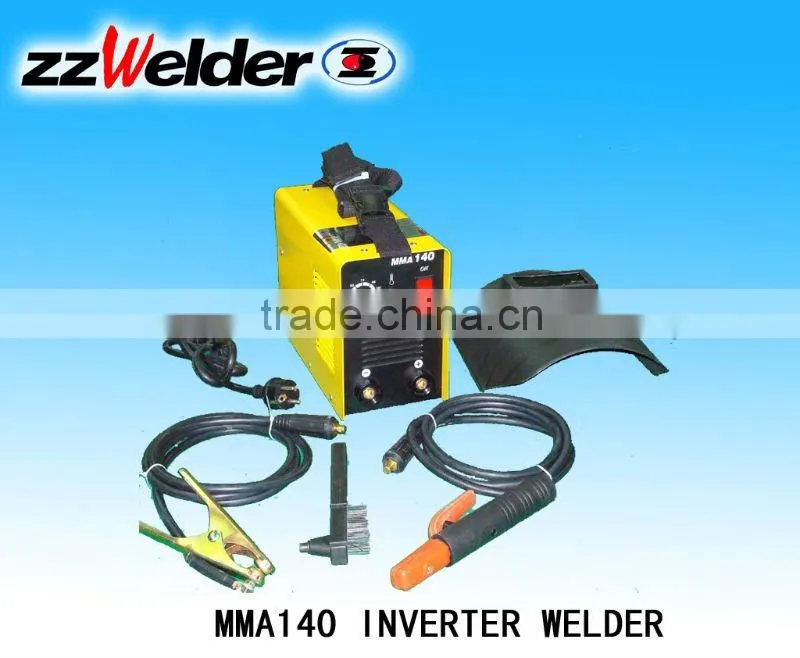

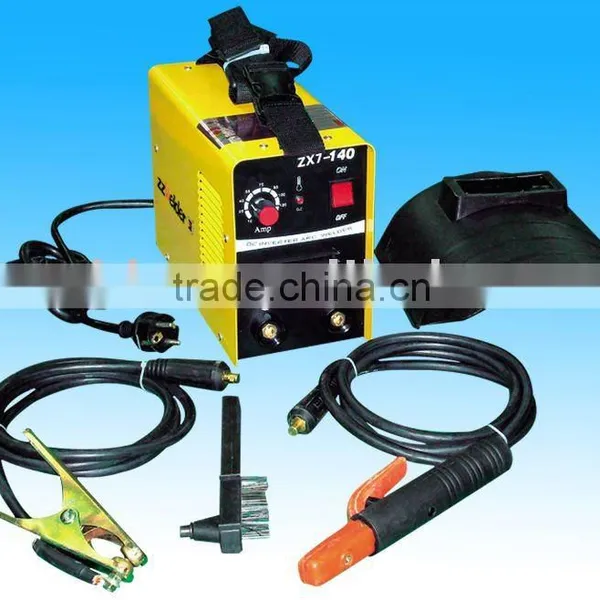

Portable 140amp Mma Welding Machine

Name: Portable 140amp Mma Welding Machine
Brand: ZZWELDER
SKU: 121787795
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

ZZWELDER

Model Number:

ZX7-140

Zhangzhou Welder Technology Exploiting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name ZZWELDER

Model Number ZX7-140

Arc Current 10-140

Rated Duty Cycle 60%

Dimensions 371*153*232mm

Usage It can weld all kinds of metal meterials.

Specifications

1. Portable electric mma welder.
2. User-friendly and reliable.
3. Small mma welding manufacturer.

♣MMA Welder(mma Welding Machine)

1.It has small volume, light weight, efficient energy-conservation,a portable electric arc welding machines.;

2.It has good capacity of striking arc anti-jamming and well propelling adjustable function;

3.The arc is stable, and the spatter is small;

4.Good welding quality, deep molten pool and high intensity;

5.It will take self-protection when the over-voltage or over-current happens;

6.It can continuously work, its performance is very stable, and it has the function of self-compensation for voltage fluctuation;

7.It is suitable for welding electrode of sorts of acid or alkali.

8.It can sustain fiber electrode to weld from down to up.

♣Technical Parameter:

Type Content	ZX7-140
Input Power Voltage(freguency)(V;HZ)	220±15%50/60
No-load Voltage(V)	56
Output Current Adjustment range(A)	10-140
Rated Output Voltage(V)	25.6
Rated Duty Cycle(%)25	60
No-load Consumption(W)	40
Efficency(%)	85
Power Factor(COSφ)	0.93
Weight	5
Measurement (mm)	371×153×232
Insulation Class	F
Protection Class	IP23
Arc Force Adjustment range(A)	---
Suitable Diameter of Rod (mm)	1.6-3.2
