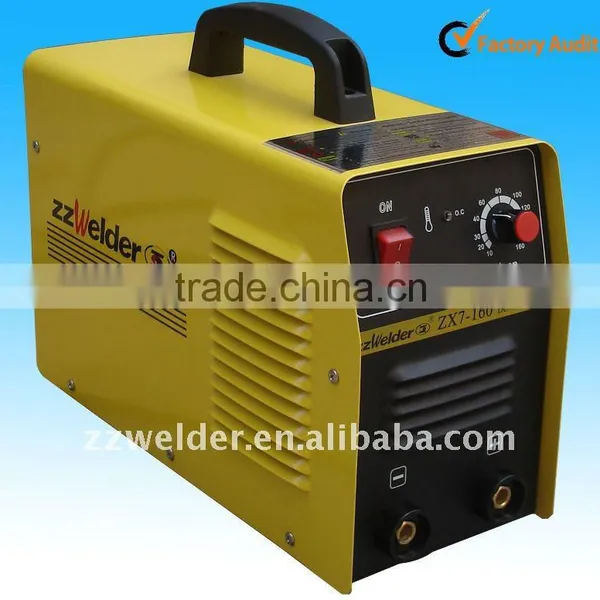

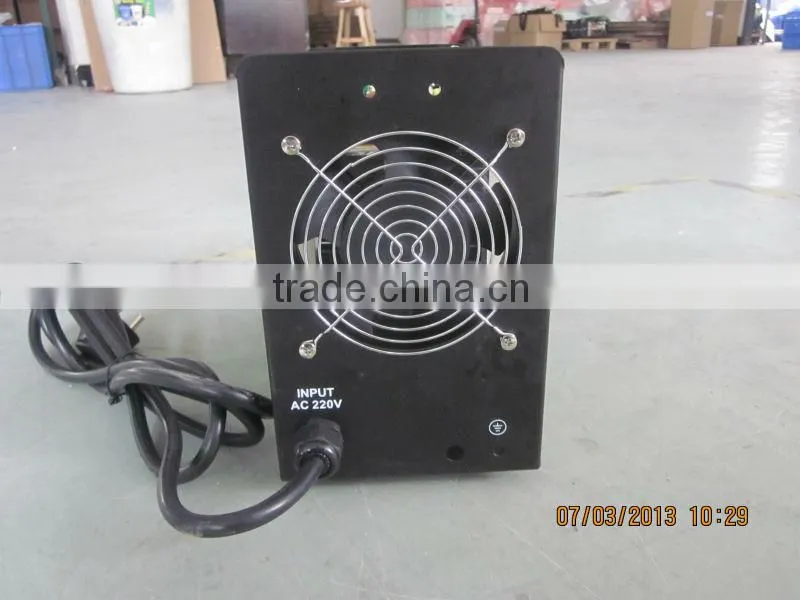

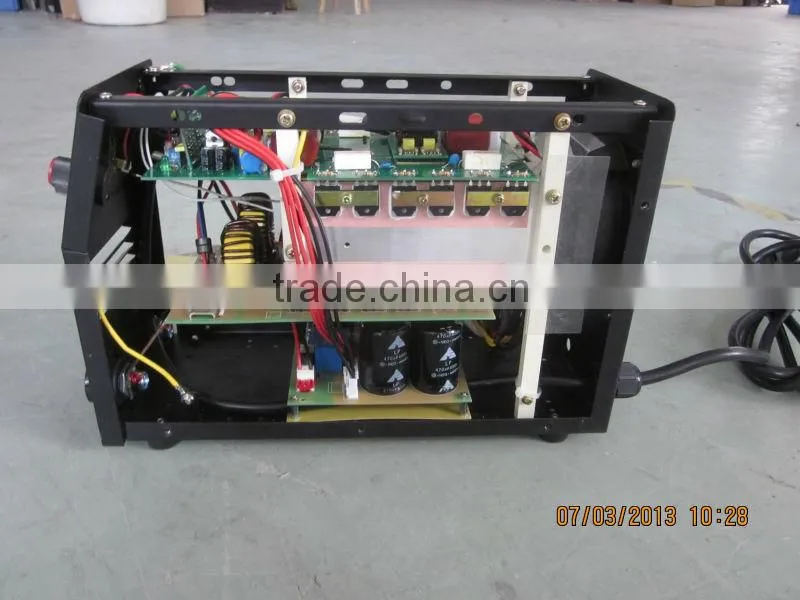

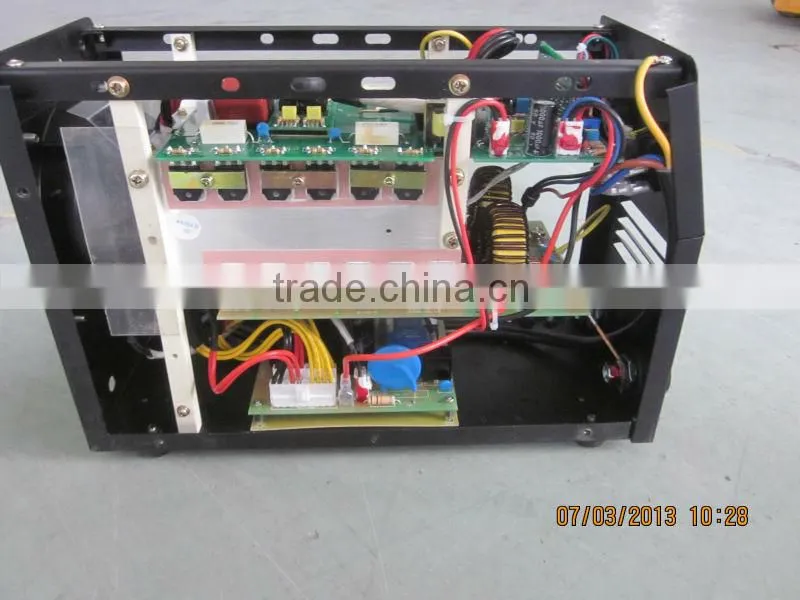

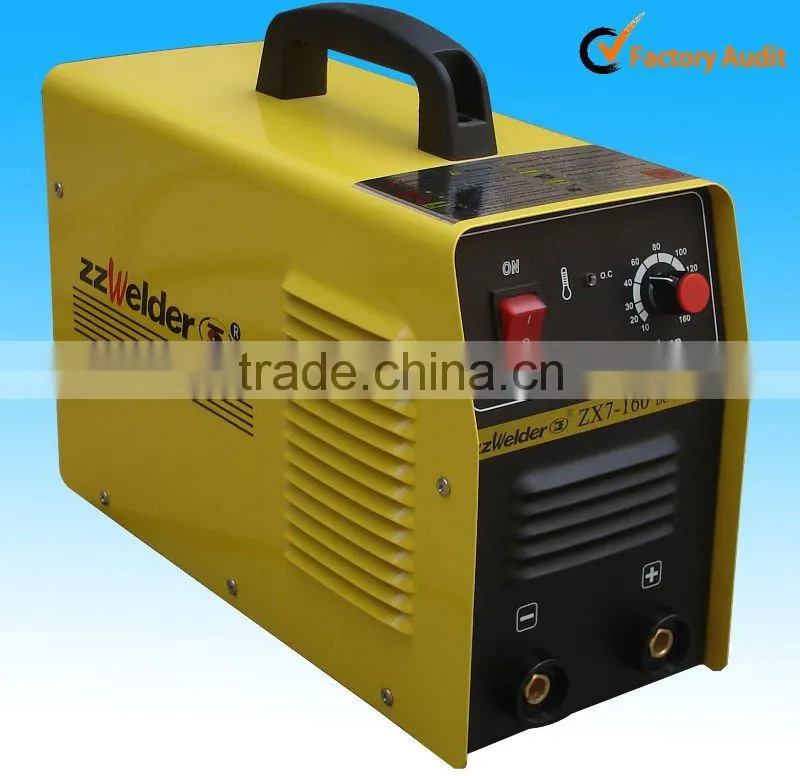

ZX7-160 Arc Welding Machine

Name: ZX7-160 Arc Welding Machine
Brand: zzwelder
SKU: 121787809
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

zzwelder

Model Number:

ZX7-160

Zhangzhou Welder Technology Exploiting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name zzwelder

Model Number ZX7-160

Dimensions L371*W153*H232mm

Usage portable electric arc welding machines

Specifications

1. Portable electric arc welding machines.
2. User-friendly and reliable.
3. ARC Welding machine manufacturer.

♣MMA DC Inverter Welder( arc welding machine ):

1.It has small volume,light weight,high efficiency and can save energy

2.Good capacity of removing arc,resisting interferation thrust,well of adjusting function.

3.The electrical arc is stable and splash is small.

4.The mini inverter welder welding quality is quite good,deep molten pool and high intensity.

5.When crossing current and voltage can take self-protection.

6.It may work consequently,for it has stable capacity and function which can automatically compensate voltage fluctuation.

7.It is suitable for welding electrode of all sorts of acid and alkali.

♣Technical Parameter:

Type	ZX7-160
Input Power Voltage(freguency)(V;HZ)	220±15%50/60
No-load Voltage(V)	56
Output Current Adjustment Range(A)	20-160
Rated Output Voltage(V)	27
Rated Duty Cycle(%)25	60
No-load Consumption(W)	40
Efficency(%)	80
Power Factor(COSφ)	0.93
Weight	8
Measurement (mm)	371×153×232
Insulation Class	F
Protection Class	IP23
Arc Force Adjustment range(A)	---
Suitable Diameter of Rod (mm)	1.6-3.2
