Help CenterMMP-14080P Pneumatic Marking Machine
Related Products

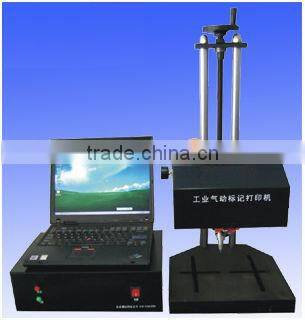

MMP-14080P pneumatic marking machine
Mechanical structure:
Double guide pillar and linear bearing work closely, high repeat printing precision, the left and right directions will be no deviation, so that the marking is more accurate.
Functions:
Print Chinese and English characters, Arabic numerals, any graphics, automatically print serial number, international standard VIN number, time, bar code, scan and input bar code, print bill, circumferential surface, lattice type, etc.
1. Support for a variety of graphics and fonts format, that is compatible with AutoCAD, CorelDraw
2. The flexible way of database interface, compared with the number
3. The data center inquiry system, intelligence report printing
4. Special font and graphics editor
Features:
1. Printing interface extension, X reset, Y reset and lower computer instructions
2. Standard printing interface technology, imported linear guide, imported motor
3. Automatically diagnose system fault, and report to upper computer
4. Can edit: batch number, date, VIN code and update automatically
5. Print dot matrix/bar code, five directions, function of the needle
6. Universal adjustable needle, marking in various directions
7. The printing contents track, record, view and print automatically
8. Domestic and imported configuration is optional
9. The printing work has low noise and fast speed
10. Using high quality imported accessories, stable performance, suitable for assembly line production
Specification:
Model |
MMP-14080P |
Printing speed |
6-8 characters/s(2’ character)or straight line:80mm/s |
Printing depth |
0.012-2mm(according to the hardness of materials) |
The hardness of workpiece |
<HRC60 |
Min. Character |
1mm |
Motion precision |
0.04mm |
Repeat Accuracy |
0.02mm,can print 1mm character |
Printing scope |
plane: 140X80mm |
Printing pin’s impact frequency and hardness |
300 times/s,hardness:HRC92 |
Air compression |
0.3-0.6Mpa |
Temperature |
0 °C ~+55 °C |
Humidity |
relative humidity<90% |
Power Consumption |
<400W |
Power Supply |
AC220V±10%50HZ |
Whole Weight |
<45kg |
