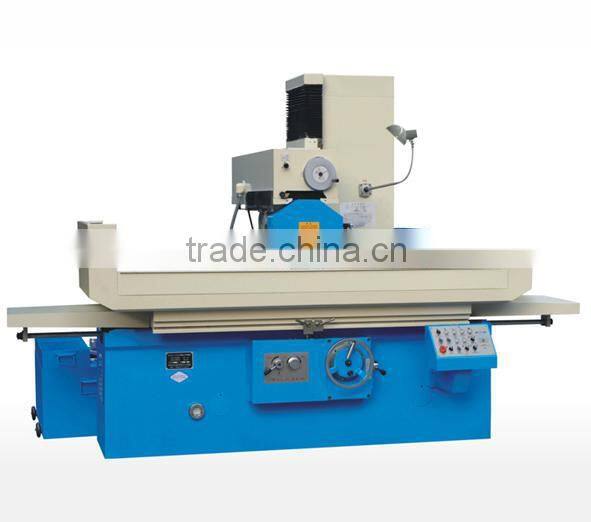

GS-63 Series Surface Grinding Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

BMT(Tianjin) International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main ports

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Place of Origin Tianjin, China

Brand Name BMT

Model Number GS-63 series

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

GS-63 series surface grinding machine

Product Description

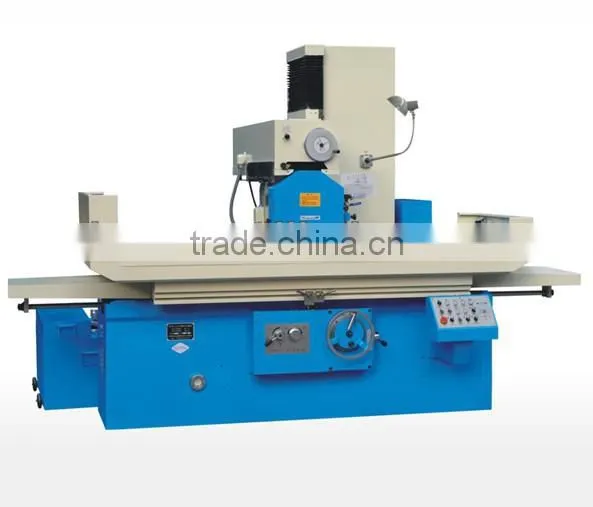

GS-63 series surface grinding machine

Technical Specification:

Model			GS-63125
Table	Table working surface (W×L)	mm	600×1250
	Max. size of workpiece to be ground (W×L×H)	mm	630×1250×400
	Table Longitudinal travel (Hydraulic)	mm	200-1350
	Speed of table (Stepless)	m/min	3—25
	Table "T" slots Width	mm	3 22
	Max. allowable weight of workpiece (Including electromagnetic chuck)	kg	980
	Electromagnetic chuck size (W×L)	mm	600×l250
Grinding wheel head	Max. travel wheel-head	mm	680
	Automatic cross-feed of wheel-head (Stepless) Continuous Intermittent	m/min mm/m	0.5-2.5 3-30
	Min. Down-feed hand-wheel dial graduated to	mm	0.005
	Wheel-head feed for each turn of hand-wheel Vertical	mm	0.5
	Grinding wheel size (O.D×W×I.D)	mm	φ400×50×φ203
Motor power	Electrical equipment total capacity	KVA	14
Motor power	Grinding wheel motor power Speed	kw r/min	7.5 1440
work accuracy	Working surface to base level parallelism	mm	300:0.008
work accuracy	Surface roughness	μm	Ra0.63
Base parameter	Overall dimensions (L×W×H)	mm	3540×2173×2280
	Packing case dimensions (L×W×H)	cm	383×228×270
	N.W	kg	5100
