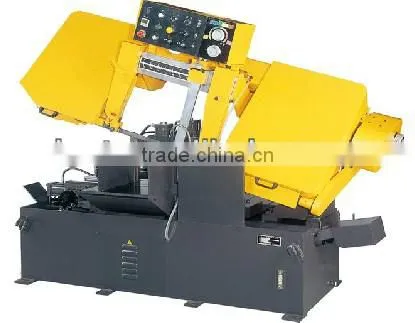

S-400HA Scissors Type Automatic Feeding Band Saw
Mainly used for cutting various ferrous mental and non-ferrous metal. The structure of the machine tool is reasonable with stable and reliable performance and high precision. It is ideal equipment for material sizing of medium/small lot.
Technical Specifications:
MODEL |
S-400HA |
|
Max. Cutting Capacity(mm) |
circular: 400 rectangel: 400W×330H |
|
Bundle Cutting(mm) |
W:195~300 H:90~200 |
|
Saw Blade |
Speed(m/min) |
18~80 Inverter |
Size(mm) |
34×1.1×4570 |
|
Motor Output(KW) |
Blade |
3.7(5HP) |
Hydraulic |
1.5(2HP) |
|
Coolant |
0.2(1/4HP) |
|
Oil tank capacity(L) |
Hydraulic Fluid |
80 |
Coolant Fluid |
90 |
|
Multiple Feed |
500mm×9tims |
|
Machine Weight |
2300kg |
|
Packing Size(L×W×H)(mm) |
2500×2100×1600 |
|
Standard Equipment:
1 United Construction-(Bar feed and saw are on one base)
2 Shuttle type automatic feed
3 PLC control for all electric and hydraulic function
4 Hydraulically controlled dual vise clamping system
5 Floating shuttle vise system
6 Split front vise
7 Infinitely variable speed control by inverter
8 Blade speed tachometer
9 Hydraulic blade tensioning
10 Roller bearing with carbide blade guide system
11 Automatic work height control by fast approach bar sensor
12 Preset cut counter with shut off
13 Out-of-stock shut off
14 Multiple indexing (9 times)
15 Nesting fixture for bundle cutting
Optional Equipment:
1 Automatic chip conveyor
2 Variable vise pressure
3 User friendly NC touch screen control with self diagnostic system
4 Full stroke vise clamping system
