H-90 & H-165 Hydraulic Iron Worker

H-90 & H-165 Hydraulic Iron Worker thumbnail-1
H-90 & H-165 Hydraulic Iron Worker photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Contact Supplier Request Quote Chat Now
BMT(Tianjin) International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Hydraulic
Place of Origin Tianjin, China
Brand Name BMT
Model Number H-90 & H-165
Power(W) H-90:5500 H-165:11000
Weight H-90:2000kg H-165:6800kg
Dimension(L*W*H) H-90:1860*800*1900mm H-165:2680*1040*2300mm
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Mainly used for cutting, punching and shearing various metal. It has through the CE certification.


Product Description







H-90 & H-165 Hydraulic Iron Worker







 H-90 & H-165 Hydraulic Iron Worker

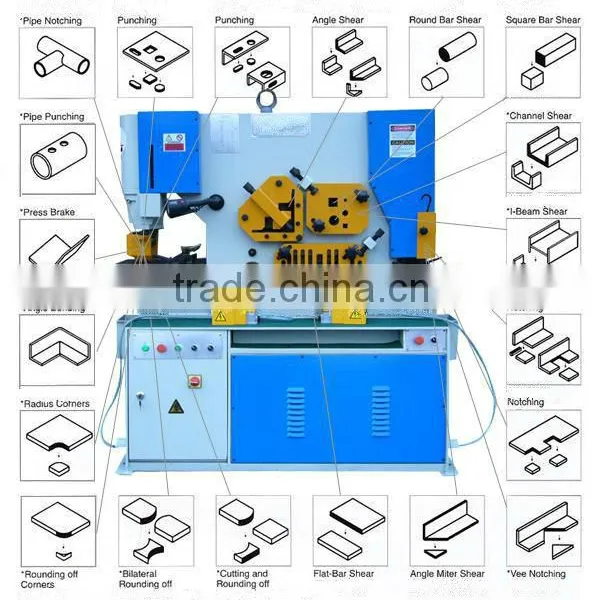

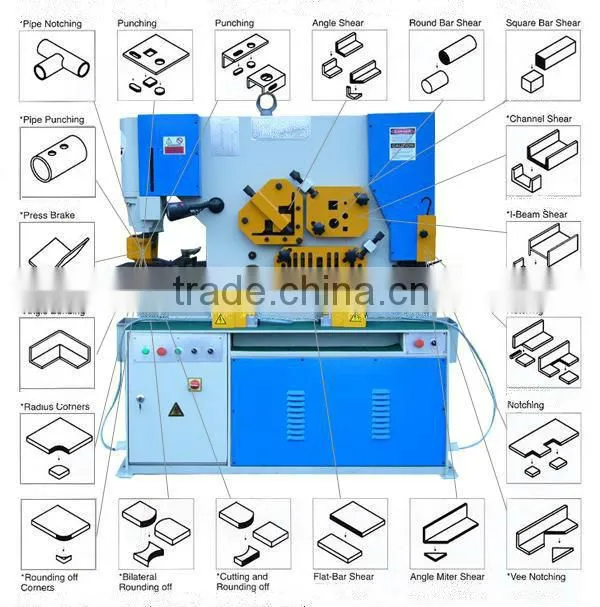

Mainly used for cutting, punching and shearing various metal.





Technical Specifications:







Models

H-90

H-165

Punching

Rated Pressure

90 tons

165 tons

Max Capacity

29*25mm

38*35mm

Stroke length

80mm

80mm

Speed 3/4” travel

26

28

Throat depth

355mm

600mm

Plate Shearing

Max Thickness

20*330mm

30*355mm

Max Width

480mm

600mm

Blade length

500mm

620mm

Rake Angles

8°

8°

Angle Cutting

Square 90 Degree

140*140*12mm

200*200*18mm

At 45 Degree

70*70*8mm

80*80*10mm

Bar Shearing

Round Bar Diameter Max.

50mm

65mm

Sizes of Holes in Die

50,32,19,13mm

50,25,19mm

Square Bar Max

50*50mm

55*55mm

Square Bar Sizes in Die

50,25mm

50,38mm

Optional Bar Shearing

I Beam Max

160mm

280mm

Channel Shear max

160mm

280mm



notcher

notcher

Thickness

13mm

16mm

Width

57mm

64mm

Depth

100mm

100mm

General Information

Motor

5.5kw

11kw

Net Weight

2000kg

6800kg

Overall dimension

1860*800*1900mm

2680*1040*2300mm
