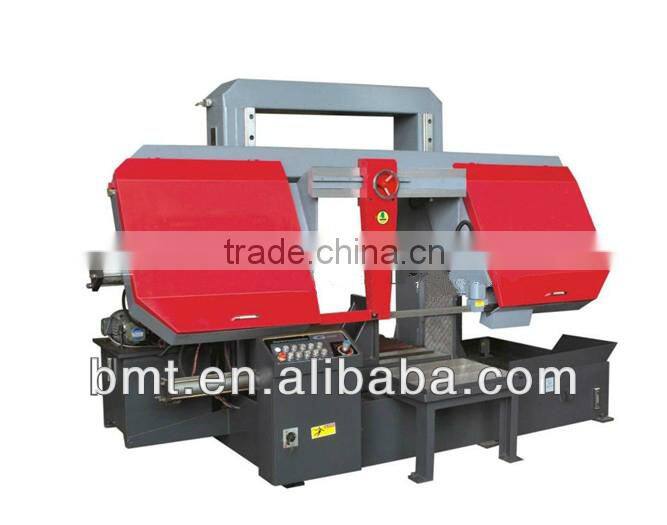

SHD-65S Double Column Semi Automatic Band Saw
Double-column Portal Horizontal Band-Sawing Machine series is a kind of large and middle sized machine in automatic and semiautomatic mode widely uses for cutting ferrous and non-ferrous metals. It has the advantages of narrow sawing cut, material saving, energy saving, high sawing precision, convenient operation and high.
Technical Specifications:
MODEL |
SHD-65S |
Cutting Capacity(mm) |
circular: 650 rectangel: 650W×650H |
Blade Speed(m/min) |
20/45/65 |
Blade Size(mm) |
41×1.25×6860 |
Motor Main(KW) |
5.5(4P) |
Motor Hydraulic(KW) |
1.5 |
Coolant Pump(KW) |
0.075 |
Workpiece Clamping |
Hydraulic Vice |
Blade Tensioning |
Manual |
Main Drive |
Gear Drive |
Table Height(mm) |
510 |
Size Outward(L×W×H)(mm) |
3270×1585×2160 |
Standard Equipment:
1 Blade cleaning brush
2 Working light
3 Saw frame height selector gauge
4 Out feed with auxiliary plate table
5 One piece of bi-mental saw blade
6 One set of tools with tool box
7 Roller table 1.5M long
Optional Equipment:
1 Automatic chip conveyor
2 Power roller table 2M long
3 Laser projector
4 Hydraulic blade tension
5 Roller table 2M long
6 Hydraulic shuttle table feeding
